<p class="jove_content">저자 (그랜트 DDF-1335-00282) 프로젝트 자금에 대 한 독립적인 연구를 위한 덴마크 위원회를 감사 하 고 싶습니다. COWIfonden 원유 가연성 기구 및 덕트 삽입을 포함 하 여 가스 분석기의 건설 자금. Maersk 기름과 Statoil 원유 오일 대표 결과에 사용 된를 제공 합니다. 어떤 스폰서는 프로토콜 또는이 문서의 결과에 참여 했습니다. 저자 또한 Ulises 로하스 알바 수정된 콘 샘플 홀더 건설에 대해 감사 하 고 싶습니다.</p>

<ol>
	<li>Allen, A. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Contained+Controlled+Burning+of+Spilled+Oil+During+the+Exxon+Valdez+Oil+Spill.">Contained Controlled Burning of Spilled Oil During the Exxon Valdez Oil Spill.</a> , 305-313 (1990).</li><li>Allen, A. A., Jaeger, D., Mabile, N. J., Costanzo, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Use+of+Controlled+Burning+During+the+Gulf+of+Mexico+Deepwater+Horizon+MC-252+Oil+Spill+Response.">The Use of Controlled Burning During the Gulf of Mexico Deepwater Horizon MC-252 Oil Spill Response.</a> <em style='font-style: italic'>International Oil Spill Conference Proceedings</em>. <b>2011</b> (1), 1-13 (2011).</li><li>AMAP. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>Assessment 2007: Oil and Gas Activities in the Arctic - Effects and Potential Effects</em>. <b>1</b>, 423 (2010).</li><li>Nuka, Research Planning Group, LLC. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>Oil Spill Prevention and Response in the U.S. Arctic Ocean: Unexamined Risks, Unacceptable Consequences</em>. , 136 (2010).</li><li>Buist, I. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>In Situ Burning in Ice-Affected Waters: State of Knowledge Report Final Report 7.1.1</em>. , 293 (2013).</li><li>EPPR. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>Guide to Oil Spill Response in Snow and ce Conditions in the Arctic</em>. , 184 (2015).</li><li>Opstad, K., Gu&#233;nette, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fire+on+the+Sea+Surface,+Ignitability+and+Sustainability+Under+Various+Environmental+Conditions.">Fire on the Sea Surface, Ignitability and Sustainability Under Various Environmental Conditions.</a> <em style='font-style: italic'>Fire Safety Science</em>. <b>6</b>, 741-752 (2000).</li><li>Fritt-Rasmussen, J., Brandvik, P. J., Villumsen, A., Stenby, E. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Comparing+Ignitability+for+In+Situ+Burning+of+Oil+Spills+for+an+Asphaltenic,+a+Waxy+and+a+Light+Crude+Oil+as+a+Function+of+Weathering+Conditions+Under+Arctic+Conditions.">Comparing Ignitability for In Situ Burning of Oil Spills for an Asphaltenic, a Waxy and a Light Crude Oil as a Function of Weathering Conditions Under Arctic Conditions.</a> <em style='font-style: italic'>Cold Reg. Sci. Technol</em>. <b>72</b>, 1-6 (2012).</li><li>Gu&#233;nette, C. C., Thornborough, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+Assessment+Of+Two+Off-Shore+Igniter+Concepts.">An Assessment Of Two Off-Shore Igniter Concepts.</a> <em style='font-style: italic'>Proceedings of the Twentieth Arctic and Marine Oil Spill Program (AMOP) Technical Seminar </em>. , 795-808 (1997).</li><li>Brandvik, P. J., Fritt-Rasmussen, J., Daniloff, R., Leirvik, F., Resby, J. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>Establishing, testing and verification of a laboratory burning cell to measure ignitability for in situ burning of oil spills. Report No. 20, 26</em>. <b>20</b>, (2010).</li><li>Van Gelderen, L., Malmquist, L. M. V., Jomaas, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Vaporization+order+and+burning+efficiency+of+crude+oils+during+in+situ+burning+on+water.">Vaporization order and burning efficiency of crude oils during in situ burning on water.</a> <em style='font-style: italic'>Fuel</em>. <b>191</b>, 528-537 (2017).</li><li>Farmahini Farahani, H., Shi, X., Simeoni, A., Rangwala, A. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+Study+on+Burning+of+Crude+Oil+in+Ice+Cavities.">A Study on Burning of Crude Oil in Ice Cavities.</a> <em style='font-style: italic'>Proc. Combust. Inst</em>. <b>35</b> (3), 2699-2706 (2015).</li><li>Bullock, R. J., Aggarwal, S., Perkins, R. A., Schnabel, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Scale-up+considerations+for+surface+collecting+agent+assisted+in+situ+burn+crude+oil+spill+response+experiments+in+the+Arctic:+Laboratory+to+field-scale+investigations.">Scale-up considerations for surface collecting agent assisted in situ burn crude oil spill response experiments in the Arctic: Laboratory to field-scale investigations.</a> <em style='font-style: italic'>J. Environ. Manage</em>. <b>190</b>, 266-273 (2017).</li><li>Fingas, M. F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Newfoundland+Offshore+Burn+Experiment+-+NOBE.">The Newfoundland Offshore Burn Experiment - NOBE.</a> , 63-70 (1994).</li><li>Gu&#233;nette, C. C., Wighus, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=In+situ+Burning+of+Crude+Oil+and+Emulsions+in+Broken+Ice.">In situ Burning of Crude Oil and Emulsions in Broken Ice.</a> , 895-906 (1996).</li><li>Potter, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tests+of+Fire-Resistant+Booms+in+Low+Concentrations+of+Drift+Ice+-+Field+experiments+May+2009.">Tests of Fire-Resistant Booms in Low Concentrations of Drift Ice - Field experiments May 2009.</a> <em style='font-style: italic'>Report No. 27</em>. <b>27</b>, 17 (2010).</li><li>AMAP. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>Assessment 2007: Oil and Gas Activities in the Arctic - Effects and Potential Effects</em>. <b>2</b>, 277 (2010).</li><li>Buist, I. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Window-of-Opportunity+for+In+Situ+Burning.">Window-of-Opportunity for In Situ Burning.</a> <em style='font-style: italic'>Spill Sci. Technol. Bull</em>. <b>8</b> (4), 341-346 (2003).</li><li>Wu, N., Kolb, G., Torero, J. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Effect+of+Weathering+on+the+Flammability+of+a+Slick+of+Crude+Oil+on+a+Water+Bed.">The Effect of Weathering on the Flammability of a Slick of Crude Oil on a Water Bed.</a> <em style='font-style: italic'>Combust. Sci. Technol</em>. <b>161</b> (1), 269-308 (2000).</li><li>Ranellone, R. T., Tukaew, P., Shi, X., Rangwala, A. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ignitability+of+crude+oil+and+its+oil-in-water+products+at+arctic+temperature.">Ignitability of crude oil and its oil-in-water products at arctic temperature.</a> <em style='font-style: italic'>Mar. Pollut. Bull</em>. <b>115</b> (1), 261-265 (2017).</li><li>Bech, C. M., Sveum, P., Buist, I. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Effect+of+Wind,+Ice+and+Waves+on+the+In+situ+Burning+of+Emulsions+and+Aged+Oils.">The Effect of Wind, Ice and Waves on the In situ Burning of Emulsions and Aged Oils.</a> , 735-748 (1993).</li><li>Van Gelderen, L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Importance+of+the+Slick+Thickness+for+Effective+In+situ+Burning+of+Crude+Oil.">Importance of the Slick Thickness for Effective In situ Burning of Crude Oil.</a> <em style='font-style: italic'>Fire Saf. J</em>. <b>78</b>, 1-9 (2015).</li><li>. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>ISO 17554:2014(E) Reaction to fire tests – Mass loss measurement</em>. , 28 (2014).</li><li>. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> , 39 (2001).</li><li>Stiver, W., Mackay, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Evaporation+rate+of+spills+of+hydrocarbons+and+petroleum+mixtures.">Evaporation rate of spills of hydrocarbons and petroleum mixtures.</a> <em style='font-style: italic'>Environ. Sci. Technol</em>. <b>18</b> (11), 834-840 (1984).</li><li>Buist, I., Potter, S., Zabilansky, L., Guarino, A., Mullin, J., Davidson, W. F., Lee, K., Cogswell, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>Oil Spill Response: A Global Perspective</em>. , 41-62 (2008).</li><li>Daling, P. S., Moldestad, M. &. #. 2. 1. 6. ;., Johansen, &. #. 2. 1. 6. ;., Lewis, A., R&#248;dal, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Norwegian+Testing+of+Emulsion+Properties+at+Sea--The+Importance+of+Oil+Type+and+Release+Conditions.">Norwegian Testing of Emulsion Properties at Sea--The Importance of Oil Type and Release Conditions.</a> <em style='font-style: italic'>Spill Sci. Technol. Bull</em>. <b>8</b> (2), 123-136 (2003).</li><li>Arai, M., Saito, K., Altenkirch, R. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+Study+of+Boilover+in+Liquid+Pool+Fires+Supported+on+Water+Part+I:+Effects+of+a+Water+Sublayer+on+Pool+Fires.">A Study of Boilover in Liquid Pool Fires Supported on Water Part I: Effects of a Water Sublayer on Pool Fires.</a> <em style='font-style: italic'>Combust. Sci. Technol</em>. <b>71</b> (1-3), 25-40 (1990).</li><li>Garo, J. P., Vantelon, J. P., Fernandez-Pello, A. C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Boilover+Burning+of+Oil+Spilled+on+Water.">Boilover Burning of Oil Spilled on Water.</a> <em style='font-style: italic'>Symp. (Int.) Combust</em>. <b>25</b> (1), 1481-1488 (1994).</li><li>Evans, D. D., Mulholland, G. W., Gross, H., Baum, H., Saito, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Burning,+smoke+production,+and+smoke+dispersion+from+oil+spill+combustion.">Burning, smoke production, and smoke dispersion from oil spill combustion.</a> , 41-87 (1988).</li><li>Gu&#233;nette, C. C., Sveum, P., Buist, I., Aunaas, T., Godal, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> <em style='font-style: italic'>In situ burning of water-in-oil emulsions</em>. , 139 (1994).</li><li>Van Gelderen, L., Rojas Alva, U., Mindykowski, P., Jomaas, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Thermal+Properties+and+Burning+Efficiencies+of+Crude+Oils+and+Refined+Fuel+Oil.">Thermal Properties and Burning Efficiencies of Crude Oils and Refined Fuel Oil.</a> <em style='font-style: italic'>International Oil Spill Conference Proceedings</em>. <b>2017</b> (1), 985-1005 (2017).</li><li>Quintiere, J. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ch+7.">Ch 7.</a> <em style='font-style: italic'>Fundamentals of Fire Phenomena</em>. , 159-190 (2006).</li><li>Janssens, M. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Measuring+rate+of+heat+release+by+oxygen+consumption.">Measuring rate of heat release by oxygen consumption.</a> <em style='font-style: italic'>Fire Technol</em>. <b>27</b> (3), 234-249 (1991).</li><li>Brandvik, P. J., Faksness, L. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Weathering+processes+in+Arctic+oil+spills:+Meso-scale+experiments+with+different+ice+conditions.">Weathering processes in Arctic oil spills: Meso-scale experiments with different ice conditions.</a> <em style='font-style: italic'>Cold Reg. Sci. Technol</em>. <b>55</b> (1), 160-166 (2009).</li><li>Wighus, R., Gu&#232;nette, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fire+on+the+sea+surface+-+Experiments+hazard+assessment+1995.">Fire on the sea surface - Experiments hazard assessment 1995.</a> <em style='font-style: italic'>Report No. NBL A07129</em>. , 40 (2007).</li><li>Gu&#233;nette, C. C., Sveum, P., Bech, C. M., Buist, I. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Studies+of+In+Situ+Burning+of+Emulsions+in+Norway.">Studies of In Situ Burning of Emulsions in Norway.</a> <em style='font-style: italic'>International Oil Spill Conference Proceedings</em>.  (1), 115-122 (1995).</li></ol>

<p class="jove_content">이 문서에서 설명 하는 두 가지 풍 화 방법에는 물에 엎지른된 기름은<sup class="xref">17</sup>를 받게 하는 풍 화 프로세스의 비교적 간단한 근사. 다른, 더 정교한 풍 화 방법은 순환 수조 Brandvik와 Faksness<sup class="xref">35</sup>에 의해 설명 같은 풍 화 원유 샘플을 제공 하기 위해 사용할 수 있습니다. 제시 방법의 장점은 간단한 장비를 필요로 하 고 실험실 환경에서 쉽게 수행할 수 있습니다. 결과 풍 화 ?...

<p class="jove_content"><em>현장에서</em> 물에 유출된 원유의 불타 레코딩과 매연 및 가스 연소 제품에 그것을 변환 하 여 물 표면에서 유출된 기름 제거 해양 기름 유출 응답 방법입니다. 이 응답 엑손 발데즈<sup class="xref">1</sup> 과 심해의 지평선<sup class="xref">2</sup> 기름 유출 동안 성공적으로 적용 된 방법과 정기적으로 북극<sup class="xref">3</sup><sup>,</sup><sup class="xref">4</sup><sup>,</sup><sup class="xref">5에 대 한 잠재적인 기름 유출 응답 방법으로 언급 한 </sup> <sup>,</sup><sup class="xref">6</sup>. <em>제자리에서</em> 기름의 불타 유출 응답 방법으로 성공적 될 것입니다 여부를 결정 하는 핵심 매개 변수에 두는 가연성 및 석유의 연소 효율성입니다. 첫 번째 매개 변수, 가연성, 얼마나 쉽게 연료 발 화 될 수 있는 및 완전 개발된 불 귀 착될 연료 표면 확산 화 염으로 이어질 수 있습니다 설명 합니다. 불타는 효율성, 두 번째 매개 변수 (wt %)에 불에 의해 물 표면에서 효과적으로 제거 하는 석유의 양을 표현 한다. 그것은 따라서 이해는 가연성 및 <em>현장에서</em> 레코딩 조건 아래 다른 원유 오일의 예상된 레코딩 효율성 관련이 있다.</p>
<p class="jove_content"><em>제자리에서</em> 레코딩 목적 점화 시스템<sup class="xref">5</sup><sup>,</sup><sup class="xref">7</sup><sup>,</sup><sup>,</sup><sup class="xref">8</sup><sup class="xref">9</sup>에 대 한 질적 논의와 실제적인 문제 해결 일반적으로 대 한 석유의 점화 물에 slicks. 실용적인 접근의 점화에 쏟 이진 문제로 오일 그리고 "화성" 또는 "하지 요령" 오일 라벨 (<em>예: </em>Brandvik, Fritt-라 스무 센, <em>외 알</em>.<sup class="xref"> 하지만 10</sup>)은,, 근본적인 관점에서 올바른. 이론에서는, 어떤 연료 주어진 적절 한 점화 소스를 붙 였을까 될 수 있습니다. 그것은 그러므로 더 나은 이해 "하지 요령"으로 레이블 것이 원유의 속성을 다른 원유 종류의 넓은 범위에 대 한 점화 요구 계량 관련이 있다. 이 목적을 위해 개발 된 방법 사건 열 유 속, 기름 및 그것의 열 관성, <em>즉</em> 얼마나 어려운 그것은 기름을 열 하는 중요 한 열 플럭스의 기능으로 오일의 점화 지연 시간을 공부 하 사용할 수 있습니다.</p>
<p class="jove_content">이전 연구에서 우리는 레코딩 효율성을 관리 하는 주요 매개 변수는 수영장 직경의 기능 연료 표면<sup class="xref">11</sup>, 열 피드백은 가정. 실험실 연구 보고 낮은 레코딩 효율성 (32-80%)<sup class="xref">8</sup><sup>,</sup><sup>,</sup><sup class="xref">12</sup><sup class="xref">13</sup> 및 대규모 연구 (풀 직경 ≥2 m)에 따라 레코딩 효율성의 명백한 풀 크기 종속성을 설명 하는 이론 높은 연소 효율 (90 ~ 99%)<sup class="xref">14</sup><sup>,</sup><sup class="xref">15</sup><sup>,</sup><sup class="xref">16</sup>보고. 여기에 설명 된 메서드는 제안 된 이론을 테스트 하도록 설계 되었습니다. 외부 열 플럭스를 소규모 실험실 실험을 쓰는 하 여 대규모 수영장 화재에 대 한 높은 열 피드백 제어 실험실 조건 하에서 시뮬레이션할 수 있습니다. 따라서, 개발된 메서드 외부 열 플럭스 변화 하 여 직경의 기능으로 효과적으로 연소 효율을 공부 하는 수 있습니다.</p>
<p class="jove_content"><em>현장에서</em> 의 더 큰 규모를 시뮬레이션 하는 외부 열 플럭스 뿐만 아니라 레코딩 작업, 오일 슬 릭의 차 물 흐름에 의해 냉각, 현재 바다의 냉각 효과 시뮬레이션 실험 설정 기능. 설명한 방법은 또한 신선 하 고 풍 화 원유 오일와 호환 됩니다. 원유의 풍 화는 휘발성 구성 요소 및 양식 물에서 기름 유화 액 (<em>예를 들어,</em> 확장<sup class="xref">17</sup>)을 물으로 혼합의 손실 등 물에 유출은 일단 한 원유에 영향을 주는 물리적, 화학적 과정을 설명 합니다. 증발 및 유화 원유 오일<sup class="xref">18</sup> 의 가연성에 영향을 주는 주요 풍 화 프로세스의 두 있으며 이러한 풍 화 프로세스를 시뮬레이션을 위한 프로토콜 따라서 논의 방법에 포함 됩니다.</p>
<p class="jove_content">여기, 우리는 가연성 및 <em>현장에서</em> 불타는 바다에 대 한 작업을 시뮬레이션 하는 조건 하에서 원유의 레코딩 효율성 결정 하는 새로운 실험실 방법 제시. 가연성 및 원유 오일의 연소 효율에 대 한 이전 연구 기능 비교 및 다른 방법. 외부 열 플럭스의 기능으로 신선 하 고 풍 화 원유 오일의 가연성 물<sup class="xref">19</sup> 및 북극 온도<sup class="xref">20</sup>에서 연구 했다. 레코딩 효율성 연구 일반적으로 신선한의 종류에 집중 하 고 극복 한 원유 오일 및 고정 규모 환경 조건 (<em>예를 들어,</em> Fritt-라 스무 센, <em>외</em>.<sup class="xref"> 8</sup><sup></sup>Bech, Sveum, <em>외 알</em>. <sup class="xref">21</sup>). 원유 오일 화학 목 축 업에 포함 된의 대 한 최근 연구는, 저자, 지식 첫 번째 작은, 중간, 대 한 레코딩 효율성 연구와 비슷한 조건<sup class="xref">13</sup>에서 대규모 실험. 그러나 대규모 실험은,, 파라메트릭 연구 시간과 같은 실험 수행에 필요한 자원의 광범위 한 금액으로 인해 쉽게 사용할 수 없습니다. 앞에서 언급 한 연구를 통해 제시 방법의 주요 장점은 동시에 모두는 가연성을 공부 하 고 불타는 세미 현실적인 조건에서 원유의 효율성에 대 한 수 것입니다. 원유 오일에 대 한 이러한 두 매개 변수 모두 다른 기름 종류와 쉽게 반복 실험을 통해 (시뮬레이션된) 풀 직경의 기능으로 공부의 조합 이전 연습에서 실현 되지 않았습니다.</p>

<table><tbody><tr><td>DUC Crude Oil</td><td>Maersk</td><td>N/A</td><td>Light crude oil with r = 0.853 g/ml and h = 6.750 mPa*s.</td></tr><tr><td>Grane Crude Oil</td><td>Statoil</td><td>N/A</td><td>Heavy crude oil with r = 0.925 g/ml and h = 133.6 mPa*s.</td></tr><tr><td>SVM 3000 Stabinger Viscometer</td><td>Anton Paar</td><td>C18IP007EN-P</td><td>Viscosity and density meter for the fresh and weathered crude oils.</td></tr><tr><td>Laboshake RO500</td><td>Gerhardt</td><td>11-0002</td><td>Rotary shaking table for emulsifying water and oil mixtures.</td></tr><tr><td>Jebao Wave Maker RW-4</td><td>Jebao</td><td>N/A</td><td>Propeller (flow of 500-4000 L/h) used in the COFA setup to generate a current.</td></tr><tr><td>Aquabee UP 3000</td><td>Aquabee</td><td>UP 3000</td><td>Aquarium pump for cooling of heat flux gauge.</td></tr><tr><td>Adventurer Precision Electronic Balance</td><td>OHAUS</td><td>AX5205</td><td>Load scale used to weigh the oil for the COFA experiments and in the custom-made cone sample holder for the cone setup.</td></tr><tr><td>3M Oil Sorbent Pads</td><td>VWR</td><td>MMMAHP156</td><td>Hydrophobic absorption pads used to collect oil residues to determine the burning efficiency of the fire.</td></tr><tr><td>Mass Loss Calorimeter</td><td>Fire Testing Technology (FTT)</td><td>B11325-650-1-1608</td><td>A custom-made, circular holder was used for the testing of crude oil rather than the standard square sample holder. Includes a heat flux gauge with a range up to 100 kW/m&lt;sup&gt;2&lt;/sup&gt;.</td></tr><tr><td>34972A Data Acquisition / Data Logger Switch Unit</td><td>RS Components Ltd.</td><td>702-7958</td><td>Produced by Keysight Technologies. Operated by Keysight benchLink data logger 3 software and equipped with a 20-channel multiplexer.</td></tr><tr><td>Keysight Technologies 34901A 20-channel multiplexer</td><td>RS Components Ltd.</td><td>702-7939</td><td>Produced by Keysight Technologies.</td></tr><tr><td>Bellows-Sealed Valve</td><td>Swagelok</td><td>SS-1GS6MM</td><td>Toggle valve to open/close the water in- and outlet of the custom-made cone sample holder for the cone setup.</td></tr><tr><td>Kronos 50 Peristaltic Pump</td><td>SEKO</td><td>KRFM0210M6000</td><td>Peristaltic pump used to cool the custom-made cone sample holder for the cone setup.</td></tr><tr><td>ARCTIC A28 Refrigerated Circulater</td><td>ThermoFisher Scientific</td><td>152-5281</td><td>Water cooling reservoir used to cool the cooling water that flows through the custom-made cone sample holder for the cone setup. Includes a SC 100 Immersion Circulator controller.</td></tr><tr><td>Gas Analysis Instrumentation Console with Duct Insert</td><td>Fire Testing Technology (FTT)</td><td>B11328-650-1-1609</td><td>Gas analyzer for O&lt;sub&gt;2&lt;/sub&gt;, CO&lt;sub&gt;2&lt;/sub&gt; and CO. Uses a 34972A Data Acquisition / Data Logger Switch Unit.</td></tr><tr><td>Ceramic &amp;amp; Stainless Steel 2.5mm Electrode</td><td>Fire Testing Technology (FTT)</td><td>M015-4</td><td>Spark igniter from the Mass Loss Calorimeter. Used in the COFA setup to measure the surface temperature upon ignition.</td></tr><tr><td>Infrared Emitter-Module M110/348</td><td>Heraeus</td><td>80046199</td><td>Original Infrared heaters on which the new design with a water-cooled holder for the heating elements was based. Includes two short wave twin tube emitters (09751751). Operated by a type CB1x25 P power controller.</td></tr><tr><td>Power Controller Heratron&amp;nbsp;</td><td>Heraeus</td><td>80055836</td><td>Type CB1x25 P power controller for the infrared heaters.</td></tr></tbody></table>

experimental procedure for laboratory studies of <em>in situ</em> burning : flammability and burning efficiency of crude oil

<p class="jove_content">가연성의 동시 연구 및 2 개의 실험적인 실험실 설정을 통해 신선 하 고 풍 화 원유의 레코딩 효율성에 대 한 새로운 방법을 제시 합니다. 실험 운영 규모 실험 (풀 직경 ≥2 m), 여전히 꽤 현실 갖춘 <em>현장에서</em> 불타는 물에 원유의 조건 비교 쉽게 반복 있습니다. 실험 조건 냉각 오일 슬 릭 및 운영 규모 원유 풀 화재에 연료 표면에 높은 열 피드백을 시뮬레이션 하는 외부 열 플럭스 (최대 50 원/m<sup>2</sup>) 흐르는 물 하위 레이어를 포함 합니다. 이러한 조건에 해당 운영 규모 실험 하는 원유 풀 화재의 레코딩 효율성의 제어 실험실 연구 가능 메서드는 또한 임계 열 유 속에서 원유 오일 점화, 사건 열 플럭스, 점화, 시 표면 온도 및 열 관성의 기능으로 점화 지연 시간에 대 한 요구 사항에 정량적 데이터를 제공합니다. 이러한 유형의 데이터는 필요한 힘과 신선한 또는 풍 화 오일의 특정 종류를 점화 하는 점화 소스의 기간 결정 하 사용할 수 있습니다. 방법의 주요 한계는 흐르는 물의 냉각 효과 하위 레이어 레코딩 원유로 외부 열 플럭스의 기능 완벽 하 게 계량 하지는 이다. 실험 결과 명확 하 게 흐르는 물 하위 레이어 레코딩 조건 <em>제자리에서</em> 어떻게 대표이 설치는 개선지 않습니다 하지만 어느 정도이 표현은 정확 하지 않습니다 현재 불확실 했다. 메서드는 가장 현실적인 <em>현장에서</em> 불타는 동시에 가연성을 공부 하 고 불타는 물에 오일의 효율성에 대 한 현재 사용 가능한 실험실 조건 역시 갖추고 있습니다.</p>

<p class="jove_content" fo:keep-together.within-page="1"><strong class="xfig">그림 5</strong> 에서는 2 단계에서 설명한 방법을 사용 하 여 30 wt %의 손실에 여러 일 동안 증발 했다 빛 원유의 증발 곡선. 그림은 명확 하 게 그 증발 풍의 첫 날 (19 h), 후 증발 속도 크게 감소, 프로토콜에서 설명 했 듯이 일시 중지에 대 한 수 있습니다 보여줍니다.</p>
<p class="jove_content" fo:keep-together.within-page="1"><strong class="xfig">그림 6</strong> 신선한 Grane (무거?...

Watch this Scientific Journal Video about Experimental Procedure for Laboratory Studies of In Situ Burning : Flammability and Burning Efficiency of Crude Oil at JoVE.com

Experimental Procedure for Laboratory Studies of In Situ Burning : Flammability and Burning Efficiency of Crude Oil

<p class="jove_content">여기, 선물이 동시에 가연성 및 <em>현장에서</em> 불타는 바다에 대 한 작업을 시뮬레이션 하는 조건 하에서 신선 하 고 풍 화 원유의 레코딩 효율성 연구 프로토콜.</p>

<em>현장에서</em> 불타의 실험실 연구에 대 한 실험 절차: 가연성 및 원유의 점화 효율성

A new method for the simultaneous study of the flammability and burning efficiency of fresh and weathered crude oil through two experimental laboratory ...

experimental-procedure-for-laboratory-studies-situ-burning

Universidad de Cartagena UDEC

Research

Education

JoVE Journal

JoVE Core

Chemistry

Engineering

Experimental Procedure for Laboratory Studies of <em>In Situ</em> Burning : Flammability and Burning Efficiency of Crude Oil

Chemical Quantities and Aqueous Reactions

SCIENTISTS IN ACTION

12.4K 조회수.  Technical University of Denmark. 여기, 선물이 동시에 가연성 및 현장에서 불타는 바다에 대 한 작업을 시뮬레이션 하는 조건 하에서 신선 하 고 풍 화 원유의 레코딩 효율성 연구 프로토콜.

비디오: Experimental Procedure for Laboratory Studies of In Situ Burning : Flammability and Burning Efficiency of Crude Oil

Esterification

<p>Source: Lara Al Hariri at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Esterification<button class="expand">Expand</button>
	<p>In this lab, you will synthesize an ester from a carboxylic acid and an alcohol in the presence of sulfuric acid. This reaction is called Fischer esterification. The sulfuric acid makes the carboxylic acid more reactive towards the alcohol. Without it, esterification would be slow and unfavorable. Esterification is highly reversible, so you&#39;ll use an excess of alcohol to drive the reaction towards the ester.</p>
	<p>You will be assigned one of seven carboxylic acid-alcohol pairs for your reaction. Each of the seven possible product testers has a distinct fruity scent. When you finish the reaction, you will waft your products vapor towards yourself and identify it based on the fruit that it smells like.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-3">
		<div class="lab-step">Before you get started, put on a lab coat, safety glasses, and nitrile gloves. <strong>Note: </strong>Your instructor will demonstrate wafting before handing out the reagents. Always smell compounds by wafting, rather than direct inhalation.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Once you are ready to begin, get your assigned carboxylic acid and alcohol and bring the vials to your fume hood. The vial labeled &#8216;A&#8217;, &#8216;B&#8217;, or &#8216;C&#8217; is your carboxylic acid. The other vial is the alcohol. Record the letters of your carboxylic acid and alcohol in your lab notebook.
		<h4><strong>Table 1: Scent of Carboxylic Acid, Alcohol, and Ester</strong></h4>
		<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
			<tbody>
				<tr>
					<td></td>
					<td><strong>Letter </strong></td>
					<td><strong>Scent </strong></td>
				</tr>
				<tr>
					<td>Assigned carboxylic acid</td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td>Assigned alcohol</td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td>Synthesized ester</td>
					<td></td>
					<td></td>
				</tr>
			</tbody>
		</table>
		<a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/68/Table_1._Scent_of_carboxylic_acid,_alcohol,_and_ester.xlsx" target="_blank">Click Here to download Table 1</a></div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Now, get a piece of filter paper and a Pasteur pipette. In the fume hood, use the Pasteur pipette to apply a drop of your alcohol to the filter paper.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Bring the filter paper to the front of the hood and waft the scent of the alcohol towards yourself. Be careful because it might smell unpleasant.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Then, put the filter paper back in the hood and write a brief description of the scent of the alcohol in your lab notebook. Do the same for your carboxylic acid if it&#39;s a liquid using a new pipette and piece of filter paper. <strong>Note:</strong> If you were assigned a solid carboxylic acid, write &#39;solid&#39; in your lab notebook and skip this step.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Now, attach an open 3-prong clamp to a lab stand in your fume hood. Place a lab jack at the base of the stand and set a stir plate and a heating mantle on top of it. Move the temperature controller next to the setup.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Then, place a small stir bar in a 50-mL round-bottom flask and securely clamp the flask over the heating mantle.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Add the carboxylic acid to the flask using a funnel. Rinse the carboxylic acid vial into the flask with 1 or 2 mL of your alcohol, and then add the rest of the alcohol to the flask.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Next, bring a 10-mL graduated cylinder to the fume hood reserved for acids, and carefully measure 4 mL of 3 M sulfuric acid. <strong>Note:</strong> It&#39;s highly toxic and corrosive, so be careful with it.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Cover your graduated cylinder with plastic paraffin film. Then, bring the acid back to your hood and add it to the flask. It&#39;s OK if the liquids form two layers.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Now, use one piece of tubing to connect the lower arm of the standard condenser to the water tap in your fume hood. Attach the other piece of tubing to the upper arm and direct it to your drain. Make sure that the connections are secure.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">Apply vacuum grease to the lower ground glass joint of the condenser. Fit the condenser into the round-bottom flask and ensure that the grease forms a good seal.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Secure the condenser in place with a second 3-prong clamp and make sure that the tubing is out of the way. Use a laboratory wipe to remove excess grease, and then secure the connection with a joint clip.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">Now, slowly open the water tap until water is flowing smoothly through the condenser. Make sure that the water is flowing into the drain and that there are no leaks.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Then, raise the lab jack until the round-bottom flask is sitting in the heating mantle. You are now ready to start heating your reaction mixture to reflux.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">Set the stir motor to medium speed and start heating the mixture on medium heat or with a set point of about 110 &#176;C.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">The first boiling point of your mixture will be between 65 and 100 &#176;C. So, keep an eye on it as it heats and adjust the temperature setting as needed.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">Once the mixture reaches an even boil, let it reflux for 50 min.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Then, turn off the heat, lower the lab jack, and replace the heating mantle with a round bottom flask holder.</div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">Let the mixture cool to room temperature with the condenser still in place, which usually takes about 10 min. During that time, prepare an ice bath in a 600-mL beaker and bring it to your fume hood.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Once the mixture has cooled completely, turn off the flow of water to the condenser. Carefully separate the condenser from the flask and move it out of the way. Then, raise the ice bath up to the flask and let it cool for 10 min.</div>
		</li>
		<li data-sub-note-item="1-24">
		<div class="lab-step">After that, bring a clean 10-mL graduated cylinder to the base hood and obtain 5 mL of saturated sodium bicarbonate.</div>
		</li>
		<li data-sub-note-item="1-25">
		<div class="lab-step">Back at your hood, use a lab wipe to remove vacuum grease from the inside of the neck of the round bottom flask.</div>
		</li>
		<li data-sub-note-item="1-26">
		<div class="lab-step">Then, obtain several clean Pasteur pipettes and some pH paper. Use a pipette to slowly add 1 mL of saturated sodium bicarbonate to the flask and stir the mixture with a stir bar or a glass rod.</div>
		</li>
		<li data-sub-note-item="1-27">
		<div class="lab-step">Add the rest of the sodium bicarbonate solution a milliliter at a time, stirring after each addition.</div>
		</li>
		<li data-sub-note-item="1-28">
		<div class="lab-step">Then, use a new pipette to check the pH of the solution. If the pH is &#60; 7, get a few more milliliters of sodium bicarbonate and add it 1 mL at a time, stirring and checking the pH after each addition.</div>
		</li>
		<li data-sub-note-item="1-29">
		<div class="lab-step">Once the solution is at a neutral pH, remove the ice bath and dry the outside of the flask with a paper towel.</div>
		</li>
		<li data-sub-note-item="1-30">
		<div class="lab-step">Let the mixture sit for a few minutes to see whether it settles into two layers.</div>
		</li>
		<li data-sub-note-item="1-31">
		<div class="lab-step">Then, obtain a clean Pasteur pipette and a new piece of filter paper. Carefully draw up a small amount of the product solution and apply one or two drops to the filter paper. If your product mixture separated, test the top layer first.</div>
		</li>
		<li data-sub-note-item="1-32">
		<div class="lab-step">Bring the filter paper to the edge of the fume hood and waft the set towards yourself. The seven possible scents are apple, banana, grape, orange, pear, pineapple, and strawberry.</div>
		</li>
		<li data-sub-note-item="1-33">
		<div class="lab-step">Record the fruit that you think your ester smells like in your lab notebook. If you aren&#39;t sure which fruit it is, ask your instructor for the reference scents to help you decide.</div>
		</li>
		<li data-sub-note-item="1-34">
		<div class="lab-step">Once you&#39;ve identified the smell of your ester, retrieve the stir bar, and dispose of your reaction mixture in the non-halogenated organic waste container. Clean your glassware and stir bar using your usual methods.</div>
		</li>
		<li data-sub-note-item="1-35">
		<div class="lab-step">Next, unclamp the condenser and carefully tilt it to let the water drain through the outlet tubing. Disconnect the inlet tubing from the water tap, keeping the end raised to avoid spills, and let the remaining water flow through the condenser to the drain.</div>
		</li>
		<li data-sub-note-item="1-36">
		<div class="lab-step">Then, disconnect the condenser from the tubing and remove the vacuum grease on the bottom joint with lab wipes. Clean the inner walls of the condenser using your usual methods.</div>
		</li>
		<li data-sub-note-item="1-37">
		<div class="lab-step">Leave the filter papers in the hood until they stop smelling strongly of fruit. Dispose of used Pasteur pipettes in the glass waste and throw out any other trash in the lab trash container.</div>
		</li>
		<li data-sub-note-item="1-38">
		<div class="lab-step">Lastly, put away your equipment and clean your hood before you leave.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Results<button class="expand">Expand</button>
	<p>Here are the seven possible esters that you could have made and their scents: propyl acetate smells like pear, isoamyl acetate smells like banana, octyl acetate smells like orange, butyl butyrate smells like pineapple, ethyl butyrate smells like strawberry, methyl butyrate smells like apple, and methyl anthranilate smells like grape.</p>
	<ul class="lab-items">
		<li data-sub-note-item="2-2">
		<div class="lab-step">Compare the scent of your ester to find the corresponding structure. For example, a strong scent of pears means that you made propyl acetate.</div>
		</li>
		<li data-sub-note-item="2-3">
		<div class="lab-step">Determine your starting carboxylic acid and alcohol. <strong>Note: </strong>Remember that alcohol attacks the carboxylic acid in this reaction. The resulting intermediate rearranges and eliminates a water molecule to form an ester.</div>
		</li>
		<li data-sub-note-item="2-4">
		<div class="lab-step">Studies have shown that the alkoxy oxygen comes from the alcohol, not the carboxylic acid. So, we&#39;ll split the ester diagram at the carbon-oxygen single bond and fill in the missing OH and H to get the starting materials. For example, if we split propyl acetate at that bond, add an OH to the carbonyl carbon and add a hydrogen to the alkoxy oxygen, we get acetic acid and 1-propanol as the starting materials.</div>
		</li>
	</ul>
	</li>
</ol>

Esterification: Synthesis of Ester by Fischer Esterification - Procedure

에스테르화

Source: Lara Al Hariri at the University of Massachusetts Amherst, MA, USA

	EsterificationExpand
	In this lab, you will synthesize an ester from a ...

교육

JoVE Lab Manual

화학

Lab Manual Sub Articles

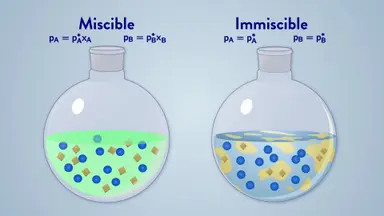

Steam Distillation

<p>Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Steam Distillation<button class="expand">Expand</button>
	<p>In this experiment, you will perform a steam distillation to extract an essential oil from an orange peel.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-2">
		<div class="lab-step">Before you start the lab, put on the appropriate personal protective equipment, including a lab coat, safety goggles, and gloves. This experiment must be performed in a hood.</div>
		</li>
		<li data-sub-note-item="1-3">
		<div class="lab-step">First, you will need to assemble the steam distillation apparatus. Check the apparatus set up by your instructor.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Set the two stands next to each other in the hood. Place the stir plate on the base of one of the stands and set the heating mantle on top of it. Plug the heating mantle into the temperature controller, but do not turn it on yet.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Now, obtain a watch glass with 3 dried orange peels from your instructor. Weigh the orange peels on the balance and record the mass of the orange peels in your notebook.
		<h4><strong>Table 1: Mass of essential oil recovered</strong></h4>
		<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always" height="166" width="476">
			<tbody>
				<tr>
					<td>Temperature of steam distillation (&#176;C)</td>
					<td></td>
				</tr>
				<tr>
					<td>Mass of the orange peels (g)</td>
					<td>&#160; &#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;</td>
				</tr>
				<tr>
					<td>Mass of empty flask (g)</td>
					<td></td>
				</tr>
				<tr>
					<td>Mass of flask + essential oils (g)</td>
					<td></td>
				</tr>
				<tr>
					<td>Mass of essential oils (g)</td>
					<td></td>
				</tr>
				<tr>
					<td>Percent mass of essential oil recovered</td>
					<td></td>
				</tr>
			</tbody>
		</table>
		<a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/61/Table_1._Mass_of_essential_oil_recovered.xlsx" target="_blank">Click Here to download Table 1</a></div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Bring your dried peels, funnel, spatula, and the 500-mL round-bottom flask to the instructor&#39;s bench and place the peels in the blender. Add about 4 mL of deionized water to the peels. Then, blend them until they are well mixed and smooth.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Using the funnel, transfer the blended peels to the round-bottom flask. Clamp the flask to the stand above the heating mantle.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Measure 200 mL of deionized water using your graduated cylinder and transfer it to the round-bottom flask using a funnel. Remove the funnel and add a stir bar to the flask.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Locate the Claisen adapter and apply a thin layer of grease to the joint. Then, insert the Claisen adapter into the flask.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Grease the thermometer adapter and insert it into the distilling head.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Gently insert the thermometer into the distilling head by pushing and twisting through the adapter until the thermometer bulb is below the bend of the distilling head.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Lightly grease the lower joint of the distilling head, and then insert it into the outer arm of the Claisen adapter.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Now, obtain the condenser and carefully clamp it to the second stand. It should be oriented nearly horizontally, with the end closest to the distilling head slightly higher.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">Lightly grease the condenser and the side joint of the distilling head before connecting them.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Next, attach one piece of rubber tubing to the inlet of the condenser, which is the port furthest away from the distilling head. Attach the other end to the tap water faucet in the hood.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">Connect the second piece of rubber tubing to the other port, which is the outlet, and place the end of the tubing in the drain.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Locate the separatory funnel and make sure that the stopcock is closed by turning it until it is fully horizontal.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">Insert the separatory funnel into the Claisen adapter, and add approximately 100 mL of deionized water to the funnel.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">Pick up the connecting joint and attach it to the end of the condenser.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">Then, attach a 250-mL round-bottom flask to the connecting joint using a plastic clip.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Finally, check all of the joints to make sure they are tightly connected and then secure each one with a plastic clip.</div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">Now that the steam distillation apparatus is fully assembled, start the procedure. First, slowly turn the tap water on to fill the condenser with water. <strong>Note</strong>: Be sure to turn the water on slowly, or the tubing may pop off and cause a flood.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Next, turn on the magnetic stirrer at the lowest setting and set the temperature controller to the appropriate setting to reach about 90 &#176;C.</div>
		</li>
		<li data-sub-note-item="1-24">
		<div class="lab-step">Once bubbles start forming in the mixture and liquid is dripping into the collection flask, adjust the heat to increase or decrease the rate of distillation to about 20 drops/min.</div>
		</li>
		<li data-sub-note-item="1-25">
		<div class="lab-step">Record the temperature on the thermometer in your notebook. Now, carefully open the stopcock on the separatory funnel to slowly add water to the flask. Your goal is to add water at the same rate as distillation, about 20 drops/min.</div>
		</li>
		<li data-sub-note-item="1-26">
		<div class="lab-step">Allow the distillation to proceed and collect about 50 mL of distillate.<strong> Note:</strong> Be patient, since this should take about 2 hours. The liquid in the flask will become less cloudy as more oil is collected.</div>
		</li>
		<li data-sub-note-item="1-27">
		<div class="lab-step">Once you have collected enough distillate, turn off the heat. Then, shut off the water to the condenser and carefully raise the entire setup.</div>
		</li>
		<li data-sub-note-item="1-28">
		<div class="lab-step">Allow it to cool completely before removing the heating mantle and disassembling the glassware.</div>
		</li>
		<li data-sub-note-item="1-29">
		<div class="lab-step">Empty the separatory funnel of any remaining water and pour the orange pulp down the drain.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Extraction of Essential Oil<button class="expand">Expand</button>
	<p>Liquid-liquid extraction is performed in a separatory funnel and is used to move a solute to another liquid in which it is more soluble. The two liquids must be immiscible and are usually an aqueous solution and a non-water-soluble organic liquid. Upon mixing, the solute is extracted into the other phase. Once the liquids settle into layers, they can be drained from the funnel one at a time.</p>
	<p>In the next part of the experiment, liquid-liquid extraction will be used to extract the essential oil from the water into an organic solvent. You&#39;ll then evaporate the organic solvent to recover the essential oil.</p>
	<ul class="lab-items">
		<li data-sub-note-item="2-3">
		<div class="lab-step">Before starting the experiment, first, make sure that the separatory funnel is rinsed and clean.</div>
		</li>
		<li data-sub-note-item="2-4">
		<div class="lab-step">Label the two 250-mL beakers as &#8216;organic layer&#8217; and &#8216;aqueous layer&#8217;. Then, attach a ring support to one of the stands.</div>
		</li>
		<li data-sub-note-item="2-5">
		<div class="lab-step">Place the separatory funnel in the support. Make sure that the stopcock is closed and the separatory funnel is secure. Then, transfer the distillate into the separatory funnel.</div>
		</li>
		<li data-sub-note-item="2-6">
		<div class="lab-step">Measure 20 mL of diethyl ether at the instructor&#39;s hood and bring it back to your workstation. Pour the diethyl ether into the separatory funnel with the distillate. <strong>Note:</strong> You should see the immiscible liquids form two layers in the funnel. The top layer is the diethyl ether.</div>
		</li>
		<li data-sub-note-item="2-7">
		<div class="lab-step">Apply a thin layer of vacuum grease to the separatory funnel stopper and insert it into the top of the funnel.</div>
		</li>
		<li data-sub-note-item="2-8">
		<div class="lab-step">Hold the stopper in place and shake the separatory funnel vigorously for about 1 min.</div>
		</li>
		<li data-sub-note-item="2-9">
		<div class="lab-step">Occasionally, vent the funnel by turning it upside down and opening, then closing the stopcock. Be sure to do this inside of the hood and away from your face.</div>
		</li>
		<li data-sub-note-item="2-10">
		<div class="lab-step">Once you have finished mixing the contents, vent the funnel again, close the stopcock, and then place the funnel in the ring attached to the stand.</div>
		</li>
		<li data-sub-note-item="2-11">
		<div class="lab-step">Allow the aqueous and organic layers to fully separate. Then, place the aqueous layer beaker under the separatory funnel.</div>
		</li>
		<li data-sub-note-item="2-12">
		<div class="lab-step">Remove the stopper and slowly open the stopcock to drain the aqueous layer into the beaker. Carefully watch the solution drain and be sure to close the stopcock before the next layer is drained.</div>
		</li>
		<li data-sub-note-item="2-13">
		<div class="lab-step">Replace the aqueous layer beaker with the organic layer beaker. Open the stopcock and drain the organic layer into its beaker.</div>
		</li>
		<li data-sub-note-item="2-14">
		<div class="lab-step">Now, close the stopcock and return the contents of the aqueous layer beaker to the separatory funnel, add 20 mL of diethyl ether, and repeat the extraction.</div>
		</li>
		<li data-sub-note-item="2-15">
		<div class="lab-step">Open the stopcock and drain the aqueous layer into the appropriate beaker, and then drain the organic layer into the organic layer beaker, adding it to the organic layer from the first extraction.</div>
		</li>
		<li data-sub-note-item="2-16">
		<div class="lab-step">Now, obtain magnesium sulfate in a weighing boat and scoop a small spatula of it into the organic layer beaker. Swirl the beaker, and then let it sit for about 20 min.</div>
		</li>
		<li data-sub-note-item="2-17">
		<div class="lab-step">After 20 min, remove the separatory funnel and ring and mount a regular clamp to the lab stand.</div>
		</li>
		<li data-sub-note-item="2-18">
		<div class="lab-step">Weigh an empty 125-mL Erlenmeyer flask and record the mass in your notebook. Then, clamp the flask to the stand and place a conical glass funnel in its neck.</div>
		</li>
		<li data-sub-note-item="2-19">
		<div class="lab-step">Fold your filter paper in half and in half again. Then, open the filter paper on one side to create a cone. Place the cone inside the conical funnel.</div>
		</li>
		<li data-sub-note-item="2-20">
		<div class="lab-step">Now, filter the magnesium sulfate from the organic layer.</div>
		</li>
		<li data-sub-note-item="2-21">
		<div class="lab-step">Next, set your hot plate to 40 &#176;C and place a large beaker containing 400 mL of water on it. Place the Erlenmeyer flask in the warm water bath and allow the organic solvent to evaporate in the hood.</div>
		</li>
		<li data-sub-note-item="2-22">
		<div class="lab-step">Once the organic solvent has fully evaporated, remove the Erlenmeyer flask from the water bath and dry the outside with paper towels.</div>
		</li>
		<li data-sub-note-item="2-23">
		<div class="lab-step">Weigh the cooled flask and record the mass in your notebook.</div>
		</li>
		<li data-sub-note-item="2-24">
		<div class="lab-step">Now that the experiment is complete, be sure to properly clean up your workspace by disposing of all solutions in the non-halogenated waste.</div>
		</li>
		<li data-sub-note-item="2-25">
		<div class="lab-step">Wash all of the glassware using detergent and then rinse them with acetone and deionized water.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="3" data-parent-collapse="">Results<button class="expand">Expand</button>
	<ul class="lab-items">
		<li data-sub-note-item="3-1">
		<div class="lab-step">Determine the mass of the oil extracted from the orange peel by subtracting the mass of the empty flask from the mass of the flask with oil.</div>
		</li>
		<li data-sub-note-item="3-2">
		<div class="lab-step">Calculate the percentage of oil in the orange peel using the original mass of the dried peel. Typically, the steam distillation method recovers about 0.9 &#8211; 4 wt% of an orange peel&#8217;s mass as essential oil.</div>
		</li>
	</ul>
	<p>You distilled the essential oil in this lab at close to 100 &#176;C. The orange oil consists mainly of (+)limonene, which has a boiling point of 176 &#176;C. Thus, the steam distillation technique lets us extract it from the orange peel at a temperature that will not compromise its structure.</p>
	</li>
</ol>

Steam Distillation: Extraction of Essential Oil from Orange Peel - Procedure

증기 증류법

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Steam DistillationExpand
	In this experiment, you will ...

Synthesis of Luminol

<p>Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Synthesis of 3-Nitrophthalhydrazide<button class="expand">Expand</button>
	<p>In this lab, you&#39;ll synthesize 3-aminophthalhydrazide, which is also called luminol, in a 2-step process. The first step is a condensation reaction between 3-nitrophthalic acid and hydrazine.</p>
	<p>During this step, the carboxylic acid groups are substituted with NH groups to produce 3-nitrophthalhydrazide and two water molecules. You must work in a fume hood throughout this lab because the reactions produce toxic vapors and gases.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-3">
		<div class="lab-step">Before you get started, put on a lab coat, splash-proof safety glasses, and nitrile gloves. <strong>Note:</strong> Hydrazine is highly toxic and flammable, so avoid touching it and keep anything containing hydrazine closed or covered when you transport it between fume hoods.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Now measure 10 mL of deionized water and pour it into a 25-mL Erlenmeyer flask. Clamp the flask on a hot plate and place a thermometer in it.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Then, start heating the water. You&#39;ll want the temperature of the water to be 80 &#176;C, so set the hot plate setting to slightly higher.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">While it heats, set up a Bunsen burner under a clamp fixed on a lab stand.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Obtain a 25-mL test tube and adjust the clamp so that it will hold the test tube about 5 &#8211; 7 cm above the flame. Then, remove the test tube and place it in a 400-mL beaker.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Once the water reaches 80 &#176;C, adjust the heat setting to keep the temperature stable.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Then, weigh 0.6 g of 3-nitrophthalic acid in a tared weighing boat. Pour the 3-nitrophthalic acid into your test tube. Then, bring the test tube and a test tube stopper to the solvent hood.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Use the provided volumetric pipette to carefully measure 0.9 mL of the 10% v/v hydrazine solution and transfer it to the test tube. Remember to cap the bottle of hydrazine solution and stopper your test tube before you return to your hood.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Clamp the test tube over the Bunsen burner and remove the stopper. Then, pour ~2 mL of triethylene glycol into a graduated cylinder and set it out of the way in your hood.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Now, add 2 or 3 boiling chips to the test tube. Place a high-temperature thermometer in the test tube and ignite the Bunsen burner. Heat the mixture with a medium flame until the 3-nitrophthalic acid dissolves.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Then, add the triethylene glycol and increase the heat of the flame. <strong>Note:</strong> Once the water from the hydrazine solution has boiled off, the temperature will continue increasing.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">When the reaction mixture reaches 210 &#176;C, turn down the heat and keep the mixture between 210 &#176;C and 220 &#176;C for 3 &#8211; 4 min.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Then, extinguish the flame and wait for the mixture to cool to 100 &#176;C.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">Turn off the hotplate, remove the thermometer, and unclamp the flask. Use tongs to hold the flask and measure 8 mL of hot water with the graduated cylinder. Pour this hot water into the test tube and remove the thermometer.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Obtain a piece of plastic paraffin film and cover the mouth of the test tube. Then, use tongs to transfer the test tube to the holding beaker.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">At a lab sink, hold the test tube under running tap water to cool it, being careful not to let water into it.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">Then, dry the outside of the tube and bring it back to your hood. Clamp the tube upright and remove the paraffin film. Let the yellow 3-nitrophthalhydrazide precipitate in the tube for 15 min.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">While you wait, add ~10 mL of deionized water to a 25-mL Erlenmeyer flask. Prepare an ice bath in a 250-mL beaker and start chilling the water in it.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Then, set up for vacuum filtration using a 250-mL filter flask, a B&#252;chner funnel, and a piece of circular filter paper.</div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">Once the product has precipitated for at least 15 min, obtain a Pasteur pipette and wet the filter paper with a few drops of cold water.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Then, turn on the vacuum and pour the contents of the test tube into the B&#252;chner funnel. Rinse the remaining solid into the funnel with 1 &#8211; 2 mL of cold water.</div>
		</li>
		<li data-sub-note-item="1-24">
		<div class="lab-step">Remove the boiling chips with tweezers and rinse them with a few drops of cold water to finish collecting the product.</div>
		</li>
		<li data-sub-note-item="1-25">
		<div class="lab-step">Turn off the vacuum pump once no more liquid is dripping into the flask from the funnel.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Synthesis of 3-Aminopthalhydrazide<button class="expand">Expand</button>
	<p>In the second step of the luminol synthesis, you&#39;ll reduce the nitro group of 3-nitrophthalhydrazide using sodium dithionite in a basic solution of NaOH. This will produce 3-aminophthalhydrazide dianion.</p>
	<p>After the reduction, you&#39;ll add acetic acid to protonate the dianion, forming luminol. Sodium dithionite is highly reactive and degrades quickly, so you&#39;ll use a slight excess of it. After the reduction, you&#39;ll protonate the luminol dianion to decrease its solubility in water. Lastly, you&#39;ll precipitate and collect luminol as a yellow solid.</p>
	<ul class="lab-items">
		<li data-sub-note-item="2-3">
		<div class="lab-step">Place a clean 25-mL test tube in a beaker and use a clean spatula to transfer your 3-nitrophthalhydrazide to the test tube.</div>
		</li>
		<li data-sub-note-item="2-4">
		<div class="lab-step">Set the B&#252;chner funnel aside and clamp the test tube over the Bunsen burner. Leave the filter flask in place for later.</div>
		</li>
		<li data-sub-note-item="2-5">
		<div class="lab-step">Now, use a 10-mL graduated cylinder to obtain 3 mL of approximately 3 M NaOH. Pour the sodium hydroxide solution into the test tube and stir the mixture with a glass rod until the 3-nitrophthalhydrazide dissolves.</div>
		</li>
		<li data-sub-note-item="2-6">
		<div class="lab-step">Now, weigh 2 g of sodium dithionite in a tared weighing boat and add it to the test tube. Obtain 3 mL of deionized water and pour it into the tube.</div>
		</li>
		<li data-sub-note-item="2-7">
		<div class="lab-step">Stir the mixture well to dissolve as much of the solid as you can. Then, add a few clean boiling chips to the test tube and ignite the Bunsen burner.</div>
		</li>
		<li data-sub-note-item="2-8">
		<div class="lab-step">Heat the mixture to boiling over a medium flame and then let it boil for 5 min.</div>
		</li>
		<li data-sub-note-item="2-9">
		<div class="lab-step">While you wait, measure 1.5 mL of glacial acetic acid and bring it to your hood.</div>
		</li>
		<li data-sub-note-item="2-10">
		<div class="lab-step">Once the reaction mixture has boiled for 5 min, shut off the Bunsen burner and add the acetic acid to the tube. Let the mixture cool to room temperature, which usually takes 10 &#8211;15 minutes. Meanwhile, prepare an ice bath in a 600-mL beaker.</div>
		</li>
		<li data-sub-note-item="2-11">
		<div class="lab-step">Once the mixture has cooled, place it in the ice bath and wait 15 min for the luminol to precipitate.</div>
		</li>
		<li data-sub-note-item="2-12">
		<div class="lab-step">Reassemble the vacuum filtration setup using a clean B&#252;chner funnel and a new piece of filter paper, and start cooling another 10 mL of deionized water in an ice bath.</div>
		</li>
		<li data-sub-note-item="2-13">
		<div class="lab-step">Once the luminol has been in the ice bath for at least 15 min, wet the filter paper with cold water. Then, collect the solid luminol by vacuum filtration.</div>
		</li>
		<li data-sub-note-item="2-14">
		<div class="lab-step">Retrieve the boiling chips and rinse the luminol with more cold water. Once liquid stops dripping from the funnel, turn off the vacuum and transfer the luminol to a 50-mL beaker.</div>
		</li>
		<li data-sub-note-item="2-15">
		<div class="lab-step">Now, prepare the combined filtrate for disposal. First, label a 250-mL beaker &#8216;hydrazine and dithionite waste&#8217;. Transfer the filtrate to the beaker and rinse the flask with deionized water to remove residual hydrazine and dithionite.</div>
		</li>
		<li data-sub-note-item="2-16">
		<div class="lab-step">Next, dilute the filtrate with 10 mL of deionized water. Then, measure 10 mL of 1 M sodium carbonate and add it to the combined filtrates.</div>
		</li>
		<li data-sub-note-item="2-17">
		<div class="lab-step">Bring a 50-mL graduated cylinder to the waste hood. Measure 40 mL of 10% sodium hypochlorite and pour it into the filtrate mixture. Place the beaker on the hot plate, add a stir bar, and secure a thermometer in the beaker.</div>
		</li>
		<li data-sub-note-item="2-18">
		<div class="lab-step">Heat the mixture to 50 &#176;C while stirring. The mixture must stay at 50 &#176;C for 1 h to oxidize leftover hydrazine and dithionite, so make sure that the temperature is stable and set a timer for 1 h before starting the last part of the lab.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="3" data-parent-collapse="">Chemiluminescence and&#160;Fluorescence<button class="expand">Expand</button>
	<p>For the last part of the lab, you&#39;ll mix some of the luminol you made with dimethyl sulfoxide over solid potassium hydroxide. The hydroxyl ions deprotonate the two amine groups. Then, ambient oxygen oxidizes the luminol dianion to 3-aminophthalate, or 3-APA, in an excited state. This unstable complex will quickly relax to the ground state, releasing energy as visible light. Since the excited 3-APA was the product of a chemical reaction, the emitted light is called chemiluminescence.</p>
	<p>Once you have seen the chemiluminescence from the oxidation reaction, you&#39;ll add fluorescein, a fluorescent molecule, to the mixture. Some excited 3-APA will transfer energy directly to fluorescein rather than emitting light, giving you a solution with two different light-emitting compounds.</p>
	<ul class="lab-items">
		<li data-sub-note-item="3-3">
		<div class="lab-step">Now, measure about 0.2 g of the luminol you made and place it in a 15-mL Erlenmeyer flask. It&#39;s OK if the solid is still damp.</div>
		</li>
		<li data-sub-note-item="3-4">
		<div class="lab-step">Obtain 5 &#8211; 7 pellets of potassium hydroxide and pour them into the flask. Then, bring the flask, a stopper, and a 10-mL graduated cylinder to the solvent hood.</div>
		</li>
		<li data-sub-note-item="3-5">
		<div class="lab-step">Measure 2 mL of DMSO, add it to the flask, and stopper it. Put the graduated cylinder in your fume hood and bring the flask to a dark room.</div>
		</li>
		<li data-sub-note-item="3-6">
		<div class="lab-step">Shake the stoppered flask vigorously until you see chemiluminescence and then put the flask down. The light fades quickly because both the oxidation and relaxation are fast processes.</div>
		</li>
		<li data-sub-note-item="3-7">
		<div class="lab-step">Shake the flask and let the light fade 6 &#8211; 10 more times without opening the flask. The light will be progressively dimmer as the oxygen in the flask is consumed. <strong>Note:</strong> To make it brighter, leave the flask open in your fume hood for a minute to replenish the oxygen.</div>
		</li>
		<li data-sub-note-item="3-8">
		<div class="lab-step">Close the flask, return to the dark room, and shake the flask again to see the effect.</div>
		</li>
		<li data-sub-note-item="3-9">
		<div class="lab-step">Now, measure 0.2 g of fluorescein dye and add it to your flask. Stopper the flask and return to the dark room. Shake the flask vigorously until the mixture is glowing brightly and then set it down to observe the difference in color from luminol alone.</div>
		</li>
		<li data-sub-note-item="3-10">
		<div class="lab-step">When you&#39;re finished, check on the filtrate. Once it has been at 50 &#176;C for at least 1 h, turn off the hotplate and wait for the beaker to cool to room temperature.</div>
		</li>
		<li data-sub-note-item="3-11">
		<div class="lab-step">Then, add about 10 mL of tap water to the filtrate and flush it down the drain.</div>
		</li>
		<li data-sub-note-item="3-12">
		<div class="lab-step">Dispose of the remaining chemical and glass waste in the appropriate containers, clean your glassware and tools, and put away your lab equipment.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="4" data-parent-collapse="">Results<button class="expand">Expand</button>
	<p>Under your oxidation reaction conditions, excited 3-APA emits blue-green light in a broad range around 500 nm when it relaxes, and fluorescein is excited by absorbing light at 480 &#8211; 490 nm and 515 &#8211; 525 nm.</p>
	<p>When you add fluorescein to the luminol oxidation reaction mixture, excited 3-APA can transfer energy that fluorescein would absorb as light directly to a nearby fluorescein molecule in a special interaction called nonradiative energy transfer. The resulting excited fluorescein emits yellow-green light when it relaxes.</p>
	<p>Excited 3-APA is highly unstable, so if no fluorescein is close enough for nonradiative energy transfer, it will relax by emitting light as usual. Thus, a spectrum of your final glowing mixture would show contributions from both blue-green and yellow-green light.</p>
	<ul class="lab-items">
	</ul>
	</li>
</ol>

Synthesis of Luminol and Chemiluminescence - Procedure

루미놀의 합성

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Synthesis of 3-NitrophthalhydrazideExpand
	In this lab, ...

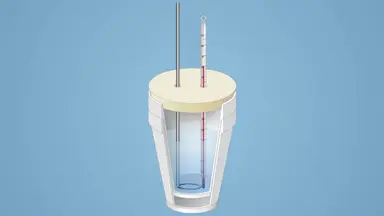

Enthalpy of Reaction

Enthalpy of Reaction and Measurement of Heat by Calorimeter - procedure

반응 엔탈피

Source: Smaa Koraym at Johns Hopkins University, MD, USA

	Collecting Data for Calculating the Heat Capacity of a CalorimeterExpand
	This experiment will ...

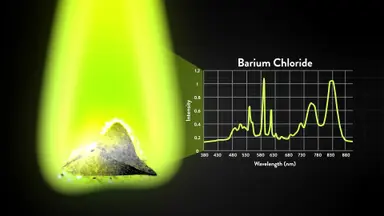

Metal Flame Emission

<p>Source: Smaa Koraym at Johns Hopkins University, MD, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Metal Flame Emission Testing<button class="expand">Expand</button>
	<p>In this lab, you will excite the electrons of six metal chloride salts with heat from a flame and measure the wavelength of light emitted by the relaxing electrons. The emitted light is in the visible spectrum, so you will see different colored flames for the different metals.</p>
	<p>At the end of the lab, you will measure the emission spectrum of a sparkler and use the data you collected from the metal salts to identify the metals in the sparkler. To help with this process, make a table in your lab notebook to record the wavelengths emitted from ambient light, the salts, and the sparkler.</p>
	<h4><strong>Table 1: Observed Wavelengths</strong></h4>
	<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
		<tbody>
			<tr>
				<td style="text-align: center;"><strong>Run #</strong></td>
				<td style="text-align: center;"><strong>Source</strong></td>
				<td style="text-align: center;"><strong>Recorded wavelength(s)</strong></td>
			</tr>
			<tr>
				<td style="text-align: center;">1</td>
				<td style="text-align: center;">Room lights</td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">2</td>
				<td style="text-align: center;">NaCl</td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">3</td>
				<td style="text-align: center;">LiCl</td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">4</td>
				<td style="text-align: center;">KCl</td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">5</td>
				<td style="text-align: center;">SrCl<sub>2</sub></td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">6</td>
				<td style="text-align: center;">BaCl<sub>2</sub></td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">7</td>
				<td style="text-align: center;">CuCl<sub>2</sub></td>
				<td></td>
			</tr>
			<tr>
				<td style="text-align: center;">8</td>
				<td style="text-align: center;">Sparkler</td>
				<td></td>
			</tr>
		</tbody>
	</table>
	<p><a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/48/Table_1._Observed_Wavelengths.xlsx" target="_blank">Click Here to download Table 1</a></p>
	<p>During this lab, you will hold a salt-coated applicator at the edge of a Bunsen burner flame to excite the metal salts. If the applicator catches fire, immediately quench it in a beaker of water. For excitation, you will hold a detector near the flame and the sparkler to measure the wavelengths of the emitted light. Keep a safe distance to protect yourself and the detector. As some tasks are performed simultaneously, we suggest that you work in groups of four with each student completing tasks as needed.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-4">
		<div class="lab-step">Put on a lab coat, safety glasses, and nitrile gloves.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Set up the Bunsen burner in the fume hood.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Fill a 400-mL beaker with tap water and bring it to the hood. Place the salts, applicators, and tap water within easy reach on one side of the Bunsen burner.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Turn on the hand-held spectrophotometer and familiarize yourself with its components.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Create a new experiment and configure the spectrometer to measure emission intensity. Set the sample time to 200 ms and the number of readings at a given wavelength to 1. Record the settings and the experiment name in your lab notebooks.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Measure the spectrum of the room lights. Have one or two students hold the optical detector as close to the lights as possible without disconnecting the cables. Once ready, have a different student start the spectrometer. The spectrum should be clear, with minimal noise and no off-scale peaks. <strong>Note: </strong>If you have trouble, hold the probe in a nearly closed drawer or box to shield it from sunlight while pointing it at the room lights.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Immediately capture the spectrum when it looks good. Confirm that you have a high-quality spectrum before saving it. Record the wavelengths of the peaks in your data table.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Measure the emission spectra of the metal salts. Ignite the Bunsen burner and adjust the collar until the flame distinctly separates into an inner and outer flame.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Bring the spectrometer to the hood and arrange the cables so that the detector can be held about one inch from the flame.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Have one student prepare the spectrometer for the run. This student should have a clear view of the burner so they can begin acquiring data as soon as the salt enters the flame. Then, have another student hold the detector no closer than one inch from the flame. <strong>Note: </strong>Any closer risks damaging the detector. But you won&#39;t get a clear spectrum if the detector is too far away.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">Have a different student take one of the applicators from the beaker of water and dip it into the tube of NaCl to coat the wet cotton with the salt. Then, carefully insert the salt-coated applicator about 1 mm into the outer flame, which will change color.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Start the spectrometer when the applicator enters the flame.<strong> Note: </strong>If the peak intensities are off-scale, adjust the detector position until all peaks are within detection limits. If the flame color change is hard to see, pick up more salt on the same applicator and try again until you see an intense color. If the spectrum is noisy or weak, try pointing the detector at a different part of the flame.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">When you see a good spectrum, capture and save it. Everyone should review the spectrum to ensure that it is of good quality. Write down the emission wavelengths in your table.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Submerge the NaCl applicator in your wastewater beaker. Always use a different applicator for each salt.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">Follow the same procedure to test the remaining five salts, being careful to avoid cross-contamination between the salts. Once you have tested the last salt and recorded the wavelengths, set up data collection for the sparkler.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">At the instructor&#39;s hood, light the sparkler with the Bunsen burner and place it handle down in the Erlenmeyer flask. Remember, the sparks may be very hot. Turn off the gas to extinguish the Bunsen burner.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">As one student holds the detector close to the sparkler, have another student start data collection. Position the detector to get as many peaks in scale as possible without losing the less intense peaks.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Capture and save the spectrum once it looks good. Remember to write down the wavelengths in your table. <strong>Note: </strong>If the sparkler is long-lived, collect a second spectrum and either choose the best one or keep them both for the analysis.</div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">Let the sparkler burn out in the hood while you send the collected data to everyone in the group and shut down the data acquisition system.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Bring the copper, barium, and strontium tubes to the waste hood and thoroughly rinse the tubes with deionized water into the designated waste container.</div>
		</li>
		<li data-sub-note-item="1-24">
		<div class="lab-step">Flush the sodium, potassium, and lithium salts down the drain and rinse the remaining test tubes. Put away the test tubes and the other equipment.</div>
		</li>
		<li data-sub-note-item="1-25">
		<div class="lab-step">Once the ashes and sparkler handle have cooled, dump them in the trash.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Results<button class="expand">Expand</button>
	<ul class="lab-items">
		<li data-sub-note-item="2-1">
		<div class="lab-step">First, plot the data for each run with intensity on the y-axis and wavelength on the x-axis.</div>
		</li>
		<li data-sub-note-item="2-2">
		<div class="lab-step">Compare the sparkler spectrum to the background spectrum from the room lights. Identify which small peaks may be from the room lights.</div>
		</li>
		<li data-sub-note-item="2-3">
		<div class="lab-step">Compare the metal spectra to the sparkler spectrum. Sodium appears to be the source of the peak at about 589 nm. There are no peaks matching the lithium spectrum, but potassium matches the large peak at 770 nm.</div>
		</li>
		<li data-sub-note-item="2-4">
		<div class="lab-step">The sparkler spectrum doesn&#39;t seem to have strontium peaks. However, barium is a good match for several peaks in the sparkler spectrum. Lastly, no copper seems to be present in the sparkler. Thus, we conclude that the sparkler was burning sodium, potassium, and barium when the spectrum was acquired.</div>
		</li>
	</ul>
	</li>
</ol>

금속 화염 방출

Source: Smaa Koraym at Johns Hopkins University, MD, USA

	Metal Flame Emission TestingExpand
	In this lab, you will excite the electrons of six metal ...

Basic Organic Chemistry Techniques

<p>Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Synthesis of Benzoic Acid<button class="expand">Expand</button>
	<p>In this lab, you&#39;ll learn several important techniques that you&#39;ll use throughout this class. This includes measuring the mass or volume of reactants and products, methods of heating and cooling reaction mixtures, proper selection and handling of glassware, and separating solids and liquids by vacuum filtration. First, you&#39;ll synthesize benzoic acid by protonating sodium benzoate with hydrochloric acid, or HCl, using water as the solvent. Sodium benzoate is very soluble in water, but benzoic acid is not, so you can filter the solid product out of the solution.</p>
	<p>You&#39;ll use vacuum filtration, which is used for powdery solids, to filter out the benzoic acid. Benzoic acid is less soluble in water at lower temperatures, so you&#39;ll collect more product if you cool the reaction solution before you filter it. When you do this lab, remember that HCl is toxic and a strong acid. It&#39;s always best to work with strong acids and organic solvents in a fume hood. If you spill any HCl, follow your lab&#39;s procedures for neutralizing and cleaning up strong acids.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-3">
		<div class="lab-step">Put on a lab coat, safety glasses, and nitrile gloves. Change your gloves if you get acid or organic solvent on them.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Bring a clean 50-mL beaker and your lab notebook to the balance, and then tare a clean empty weighing boat on the balance.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Use a clean spatula to measure out ~2 g of sodium benzoate.<strong> Note:</strong> Stay between 1.9 and 2.1 g.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Dispose of any extra sodium benzoate into the appropriate waste container. Close the bottle of sodium benzoate when you&#39;re done with it.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Write down the mass of sodium benzoate and pour it into your beaker. Clean the spatula with a lab wipe so that it can be used again and return to your fume hood.
		<h4><strong>Table 1: Reaction yield of benzoic acid</strong></h4>
		<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
			<tbody>
				<tr>
					<td style="text-align: center;"><strong>Mass of sodium<br />
					benzoate (g)</strong></td>
					<td style="text-align: center;"><strong>Moles of sodium<br />
					benzoate</strong></td>
					<td style="text-align: center;"><strong>Volume of<br />
					HCl (mL)</strong></td>
					<td style="text-align: center;"><strong>Moles of<br />
					HCl</strong></td>
					<td style="text-align: center;"><strong>Moles of benzoic<br />
					acid</strong></td>
					<td style="text-align: center;"><strong>Mass of benzoic<br />
					acid (g)</strong></td>
				</tr>
				<tr>
					<td></td>
					<td></td>
					<td></td>
					<td></td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td></td>
					<td></td>
					<td></td>
					<td></td>
					<td><strong>Theoretical yield</strong></td>
					<td></td>
				</tr>
				<tr>
					<td style="text-align: center;">-</td>
					<td style="text-align: center;">-</td>
					<td style="text-align: center;">-</td>
					<td style="text-align: center;">-</td>
					<td><strong>Percent yield</strong></td>
					<td></td>
				</tr>
			</tbody>
		</table>
		<a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/56/Table_1._Reaction_yield_of_benzoic_acid.xlsx" target="_blank">Click Here to download Table 1</a></div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Get a clean 10-mL graduated cylinder and measure 10 mL of deionized water. Pour the water into the beaker of sodium benzoate. Stir the solution with a glass rod until the sodium benzoate has completely dissolved.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Obtain a clean 5-mL graduated cylinder and measure 5 mL of 3 M HCl. <strong>Note: </strong>If you pour too much, use a Pasteur pipette to transfer the excess to a small beaker labeled &#8216;acid waste&#8217;. Close the bottle and put it back when you&#39;re done.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Use a clean Pasteur pipette to draw up a small amount of HCl from your graduated cylinder. Start adding the HCl to the sodium benzoate solution at a rate of about one drop every 6 seconds or 10 drops/min. Stir the solution frequently with the glass rod. This should take about 10 min. <strong>Note:</strong> As you add more HCl, you&#39;ll start to see benzoic acid precipitating from the solution.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">When you are done, fill a 600-mL beaker about halfway with crushed ice and add tap water to just fill the spaces between the ice to make an ice bath.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Place the ice bath by a lab stand in your fume hood and use a medium clamp to hold the reaction beaker in the bath. Make sure that the surface of the solution is below the ice.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Clamp a thermometer in the reaction solution.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">While the reaction cools, obtain 25 mL of deionized water in a 50-mL graduated cylinder. Place the graduated cylinder in a 600-mL beaker and pack ice around it to cool the water.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Once the reaction solution reaches 10 &#176;C, it&#39;s ready to be filtered. Set up another lab stand and obtain a clean 250-mL filter flask. Clamp the flask upright on the lab stand.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">Ensure that your vacuum tubing is connected to the vacuum source, and then carefully push the free end of the tubing onto the barbed arm of the flask.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Place a rubber adapter and a B&#252;chner funnel in the mouth of the flask. Confirm that the reaction solution has reached 10 &#176;C and remove the thermometer from the beaker.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">Obtain a piece of circular filter paper and place it in the B&#252;chner funnel so that the small holes are completely covered.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">Get a new Pasteur pipette, and use a few drops of cold deionized water to wet the filter paper. <strong>Note: </strong>This helps keep the filter paper in place when you pour the solution into the funnel.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">Open the vacuum line part way to reduce the pressure in the flask.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Remove the beaker from the ice bath, stir the solution well with the glass rod until the solid is swirling around in the liquid, and then slowly pour it onto the filter paper. <strong>Note:</strong> If the liquid does not move quickly through the funnel, make sure that there are no gaps between the funnel, adapter, and flask, and then gradually open the vacuum until the liquid rapidly flows into the flask.</div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">Use a clean Pasteur pipette to rinse the inner walls of the beaker with ~10 mL of cold deionized water and pour the rinse into the funnel. Pour the rest of the cold deionized water over the benzoic acid on the filter to wash it. <strong>Note:</strong> This is an important step that removes impurities, side products, and unreacted compounds.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Leave the benzoic acid in the funnel with the vacuum running until it is completely dry. <strong>Note: </strong>This usually takes ~2 h, so let&#39;s continue to the second half of the lab in the meantime.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Refluxing Tetrahydrofuran (THF) and Measuring Product Mass<button class="expand">Expand</button>
	<p>While your benzoic acid dries, you&#39;ll practice refluxing tetrahydrofuran, or THF, which has a boiling point of 66 &#176;C. THF is volatile, flammable, and an irritant, so avoid letting it touch your skin and always work with it in a fume hood. Refluxing is a technique that constantly condenses the vapor and returns it to the flask. This allows reactions to be performed at high temperatures, such as at the solvent&#39;s boiling point, without losing the solvent to evaporation.</p>
	<p>Refluxing is achieved with a special piece of glassware called a condenser, which is attached directly to your flask. The condenser is cooled with water flowing through the outer chamber. As vapor rises through the condenser, it loses heat to the cool walls, condenses, and drips back into the flask.</p>
	<p>Refluxing is usually performed in a round-bottom flask. These flasks must be heated in a heating bath or with specialized equipment, but they provide more even heating than an Erlenmeyer flask or beaker as a result. Water baths are typically used for experiments performed below 80 &#8211; 100 &#176;C.</p>
	<ul class="lab-items">
		<li data-sub-note-item="2-4">
		<div class="lab-step">Set up the glassware and equipment for reflux. Place a lab jack by your available lab stand and set a stirring hotplate on top of it. Clamp a 50-mL round-bottom flask at least 12 cm above the hotplate.</div>
		</li>
		<li data-sub-note-item="2-5">
		<div class="lab-step">Bring a 50-mL graduated cylinder to the solvent hood and measure 25 mL of THF. If you pour too much, label a small beaker &#8216;organic waste&#8217; and pipette the excess into that. Remember to cap the bottle when you&#39;re done.</div>
		</li>
		<li data-sub-note-item="2-6">
		<div class="lab-step">Carefully pour the THF into the round-bottom flask, clean up any spills with a lab wipe or paper towel, and add a small oblong stir bar to the flask.</div>
		</li>
		<li data-sub-note-item="2-7">
		<div class="lab-step">Position a medium clamp ~20 cm above the flask. Obtain a condenser and apply vacuum grease to the lower ground-glass joint.</div>
		</li>
		<li data-sub-note-item="2-8">
		<div class="lab-step">Fit the condenser into the flask and rotate them in opposite directions until the vacuum grease is evenly spread between the two ground-glass surfaces.</div>
		</li>
		<li data-sub-note-item="2-9">
		<div class="lab-step">Clamp the condenser in place and use a lab wipe to remove excess grease from the connection between the two pieces of glassware.</div>
		</li>
		<li data-sub-note-item="2-10">
		<div class="lab-step">Attach rubber tubing to each of the ports on the condenser. Place the free end of the tubing connected to the top port, which is the outlet, in the drain. Connect the free end of the tubing from the bottom port, which is the inlet, to the waterline.</div>
		</li>
		<li data-sub-note-item="2-11">
		<div class="lab-step">Fill a 250-mL beaker with ~200 mL of tap water and place this water bath on the hotplate. Use the lab jack to raise the bath until the water level is about 2/3 of the way up the spherical part of the flask. This will ensure the THF heats evenly.</div>
		</li>
		<li data-sub-note-item="2-12">
		<div class="lab-step">Secure a thermometer (range 0 &#8211; 100 &#176;C) in the bath using the thermometer clamp.</div>
		</li>
		<li data-sub-note-item="2-13">
		<div class="lab-step">Slowly open the water tap, watch the condenser for leaks as it fills, and confirm that the water is flowing into the drain.</div>
		</li>
		<li data-sub-note-item="2-14">
		<div class="lab-step">Slowly turn up the magnetic stirrer until the THF is stirring well. If the stir bar bounces around, turn down the stir motor and try again more slowly.</div>
		</li>
		<li data-sub-note-item="2-15">
		<div class="lab-step">Start heating the water bath to about 70 &#176;C until the THF starts to boil. <strong>Note: </strong>You&#39;ll see vapor condensing in the lower part of the condenser).</div>
		</li>
		<li data-sub-note-item="2-16">
		<div class="lab-step">Monitor the refluxing THF for 10 min. <strong>Note:</strong> Turn down the heat if the bath goes above 70 &#176;C or if vapor leaves the condenser.</div>
		</li>
		<li data-sub-note-item="2-17">
		<div class="lab-step">After 10 min, remove the thermometer and turn off the heat and the stir motor. Carefully lower the lab jack until the flask is clear of the water bath. Wait at least 10 more min for the setup to cool, then unplug and remove the hotplate.</div>
		</li>
		<li data-sub-note-item="2-18">
		<div class="lab-step">Turn off the water tap, unclamp the condenser, and carefully detach it from the flask. Tilt the condenser until most of the water has flowed through the outlet tubing into the drain. Then, disconnect the inlet tubing from the condenser and let the remaining water flow into the drain. Do the same for the outlet tubing.</div>
		</li>
		<li data-sub-note-item="2-19">
		<div class="lab-step">Use lab wipes to remove the vacuum grease from the condenser and the flask, then retrieve the stir bar from the flask.</div>
		</li>
		<li data-sub-note-item="2-20">
		<div class="lab-step">Bring the flask to the waste hood and empty it into the non-halogenated organic waste container. Pour any excess HCl or THF into the acid and organic wastes, respectively. Empty the ice and water baths into the sink and rinse the beakers with tap water.</div>
		</li>
		<li data-sub-note-item="2-21">
		<div class="lab-step">Clean most of your other glassware while the benzoic acid from earlier finishes drying according to your lab&#8217;s standard practices. Usually, you&#39;ll rinse your glassware both with an organic solvent, like acetone, and with detergent and deionized water. <strong>Note:</strong> Your lab may have specific procedures for glassware used with acids. If so, follow that procedure to clean the graduated cylinder used with HCl and your acid waste beaker, if applicable.</div>
		</li>
		<li data-sub-note-item="2-22">
		<div class="lab-step">Remove the reusable pipette bulbs and dispose of your pipettes in the glass waste container. Throw out used lab wipes and paper towels in the lab trash.</div>
		</li>
		<li data-sub-note-item="2-23">
		<div class="lab-step">Check on your benzoic acid. If it is dry, turn off the vacuum and break the vacuum seal by disconnecting the tubing from the filter flask. Gently place the funnel in it 250-mL beaker and bring it and your lab notebook to the balance.</div>
		</li>
		<li data-sub-note-item="2-24">
		<div class="lab-step">Tare a weighing boat and use a clean spatula to transfer the product to the weighing boat. Record the mass of your product in your lab notebook.</div>
		</li>
		<li data-sub-note-item="2-25">
		<div class="lab-step">Then, put the product in the lab trash and wipe off the spatula. Dispose of the filtrate in the aqueous waste container.</div>
		</li>
		<li data-sub-note-item="2-26">
		<div class="lab-step">Clean the rest of your glassware, throw out the filter paper and other waste in the lab trash, and put away your lab equipment. Lastly, clean the floor of your fume hood with a damp paper towel.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="3" data-parent-collapse="">Results<button class="expand">Expand</button>
	<ul class="lab-items">
		<li data-sub-note-item="3-1">
		<div class="lab-step">Calculate the reaction yield for the protonation of sodium benzoate. Identify the reagent that the reaction runs out of first, which is called the limiting reagent.</div>
		</li>
		<li data-sub-note-item="3-2">
		<div class="lab-step">Calculate the number of moles of sodium benzoate and HCl that you used. <strong>Note:</strong> You used about 0.014 moles of sodium benzoate and 0.015 moles of HCl. Thus, the maximum yield of benzoic acid is equal to the starting amount of sodium benzoate in moles.</div>
		</li>
		<li data-sub-note-item="3-3">
		<div class="lab-step">Convert the mass of your benzoic acid to moles, divide that by the moles of sodium benzoate that you used, and multiply it by 100 to get the percent yield. <strong>Note:</strong> The recovered yield for this reaction is usually between 80% and 98% because a small amount of benzoic acid stays in solution. If the yield is above 100%, then it&#39;s likely that your product was still wet when you weighed it. Impurities, unreacted compounds, and products of side reactions can also affect the accuracy of yield calculations.</div>
		</li>
	</ul>
	</li>
</ol>

기본 유기 화학 기법

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Synthesis of Benzoic AcidExpand
	In this lab, you&#39;ll ...

Melting Points

<p>Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Determining the Melting Points of Naphthalene, Urea, and an Unknown Mixture<button class="expand">Expand</button>
	<p>In this experiment, you will measure the melting point range of two known substances, naphthalene and urea, by observing the melting phenomenon during heating. You&#39;ll then analyze a mixture of urea and an unknown substance to observe how the unknown impurity affects the melting point range.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-2">
		<div class="lab-step">Put on a lab coat, splash-proof safety glasses, and nitrile gloves.</div>
		</li>
		<li data-sub-note-item="1-3">
		<div class="lab-step">Weigh ~1 mg of naphthalene using the analytical balance, and carefully, bring it back to your bench.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Transfer the naphthalene onto a watch glass, and then crush it using the metal spatula until it becomes a fine powder.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Carefully pick up one capillary tube and tap the open end on the powder to force some of the solid into the tube.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Obtain a long glass tube from the common bench and hold it upright over your bench. Pick up the capillary with the open end upward and then drop it through the glass tube. Allow the capillary to bounce off the benchtop to pack the solid at the bottom.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Retrieve the capillary and tap its open end on the naphthalene powder again to force more of it into the capillary. Continue loading naphthalene into the capillary and dropping it through the glass tube until 1 &#8211; 2 mL of powder is packed at the bottom of the capillary.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Use a rubber band to attach the capillary to a digital thermometer, with the bottom of the capillary just above the bottom of the thermometer. <strong>Note:</strong> Make sure that the rubber band is at least 8 &#8211; 9 cm above the solid in the capillary.</div>
		</li>
		<li data-sub-note-item="1-9">

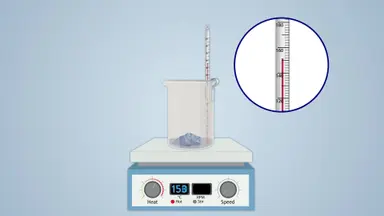

		<div class="lab-step">Set up a stirring hotplate and a lab stand in a fume hood and clamp the thermometer above the hotplate.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Place the provided mineral oil bath on the hotplate and add a magnetic stir bar. Start stirring the bath at a moderate speed over low heat.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Lower the thermometer and capillary setup into the oil bath until the sample is about 5 cm deep in the bath. <strong>Note:</strong> Make sure that the rubber band is above the mineral oil.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Increase the hotplate temperature to 60&#176;C, which is about 20&#176; below the melting point of naphthalene in the literature.<strong> Note:</strong> It will take about 10 min for the entire oil bath to reach the same temperature as the hotplate.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Once the bath reaches 60&#176;C, heat it to 75&#176;C at a rate of 5&#176;C/min. When the bath is close to the melting point of naphthalene (80&#176;C), heat the bath by 1 &#8211; 2 &#176;C/min while carefully observing the solid in the capillary.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">At the first drop of liquid in the capillary, record the temperature of the oil bath. Keep watching the capillary tube as you slowly increase the temperature. Record the temperature when the last piece of solid melts.
		<h4><strong>Table 1: Melting Points of Naphthalene, Urea, and an Unknown Mixture</strong></h4>
		<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
			<tbody>
				<tr>
					<td></td>
					<td colspan="2" style="text-align: center;"><strong>Melting point temperature (&#176;C)</strong></td>
				</tr>
				<tr>
					<td><strong>Substance</strong></td>
					<td style="text-align: center;"><strong>Start</strong></td>
					<td style="text-align: center;"><strong>End</strong></td>
				</tr>
				<tr>
					<td>Napthalene</td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td>Urea</td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td>Urea + Unknown (trial 1)</td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td>Urea + Unknown (trial 2)</td>
					<td></td>
					<td></td>
				</tr>
			</tbody>
		</table>
		<a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/66/Table_1._Melting_points_of_naphthalene,_urea,_and_an_unknown_mixture.xlsx" target="_blank">Click Here to download Table 1</a></div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Carefully remove the capillary and thermometer from the oil bath and set them aside to cool.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">Weigh roughly 1 mg of urea and transfer it to a clean watch glass. Crush the urea to a powder. Load the powder into a capillary tube as before.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Attach the capillary to the thermometer with the rubber band. Heat the oil bath to 110&#176;C, which is about 20&#176; below the reported melting point of 132&#176;C for urea.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">Insert the thermometer and capillary tube into the oil bath. Heat the bath to about 125&#176;C at 5&#176;C/min while watching the capillary.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">When the bath reaches 125&#176;C, heat the bath by 1 &#8211; 2&#176;C /min. Record the temperature when the first drop of liquid appears and when the last bit of solid melts.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">Turn off the hotplate and remove the capillary and thermometer from the oil bath to allow them to cool.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Test the sample of urea mixed with an unknown impurity, which was prepared by your instructor. Perform two runs of this sample, so weigh 2 mg of the sample on the balance and transfer it to a watch glass.</div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">Crush the sample to powder and load two capillaries by tapping them on the powder and dropping them through the glass tube like before.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Once the oil bath has cooled to at least 80&#176;C, turn on the stir motor and set the hotplate to 80&#176;C. Attach one of the loaded capillaries to the thermometer and clamp them in the oil bath.</div>
		</li>
		<li data-sub-note-item="1-24">
		<div class="lab-step">In the first test run, increase the temperature by 10&#176;C/min until the sample has melted to determine the rough melting point range. Record the temperature when you see the first drop of liquid form and the last drop of liquid form to determine the rough melting point range.</div>
		</li>
		<li data-sub-note-item="1-25">
		<div class="lab-step">Turn off the hotplate and allow it to cool. Once the oil bath has cooled to at least 80&#176;C, attach the second sample to the thermometer and clamp them in the bath. Turn the stir motor back on and set the hotplate to 80&#176;C.</div>
		</li>
		<li data-sub-note-item="1-26">
		<div class="lab-step">For the second test, heat the bath by 5&#176;C/min until you are close to the rough melting point range, and then continue heating by 1 &#8211; 2&#176;C/min to accurately capture the melting point range.</div>
		</li>
		<li data-sub-note-item="1-27">
		<div class="lab-step">When you have finished measuring the melting point of the urea mixed with the unknown substance, turn off the hotplate and detach the capillary tube from the thermometer. Dispose of your capillary tubes in the glass waste container.</div>
		</li>
		<li data-sub-note-item="1-28">
		<div class="lab-step">Return the mineral oil to your instructor, and clean all of your glassware using detergent and water.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Results<button class="expand">Expand</button>
	<ul class="lab-items">
		<li data-sub-note-item="2-1">
		<div class="lab-step">First, look at the melting point range of naphthalene. These differences may be caused by experimental errors, such as heating the sample too quickly, or by impurities in the sample.</div>
		</li>
		<li data-sub-note-item="2-2">
		<div class="lab-step">Next, check the results for the pure urea sample. Why is urea&#39;s melting point so much higher than naphthalene&#39;s? Looking at the structure of naphthalene, the intermolecular forces must be primarily London dispersion forces. Urea is capable of hydrogen bonding, so the intermolecular forces in solid urea are much stronger than the forces in solid naphthalene.</div>
		</li>
		<li data-sub-note-item="2-3">
		<div class="lab-step">Finally, look at the results from the urea sample with the impurity. The melting point range should be broader and lower than the range for pure urea because of freezing point depression. As expected, the melting point range obtained was 127 &#8211; 130&#176;C, which is lower than the range for pure urea.</div>
		</li>
	</ul>
	</li>
</ol>

Determination of Melting Points - Procedure

녹는 점

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Determining the Melting Points of Naphthalene, Urea, and ...

Boiling Points

<p>Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Boiling point determination of acetone and ethanol<button class="expand">Expand</button>

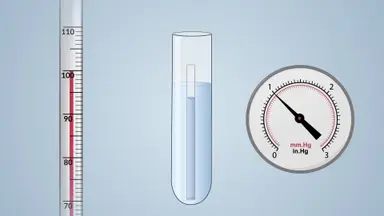

	<p>The temperature at which a pure organic substance changes from the liquid phase to the gas phase is known as the boiling point. A liquid&#39;s boiling point can be determined using the capillary method, where an inverted capillary is placed in the liquid of interest and the liquid is heated. As the temperature increases, the air in the capillary escapes and is replaced by the vapor of the liquid. The vapor pressure in the capillary increases with temperature. Once it exceeds the atmospheric pressure, the vapor escapes the capillary in a stream of bubbles. When the heat is removed, the liquid cools, and the vapor pressure in the capillary decreases. When the vapor pressure reaches the atmospheric pressure, the liquid begins to fill the capillary. The temperature at which this occurs is the boiling point.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-2">
		<div class="lab-step">Put on a lab coat, splash-proof safety glasses, and nitrile gloves. This experiment must be conducted in a hood.</div>
		</li>
		<li data-sub-note-item="1-3">
		<div class="lab-step">Attach a small test tube to the thermometer using a rubber band, and secure the thermometer in the clamp.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Obtain acetone and bring it back to your hood. Using your glass pipette and a bulb, measure 1 mL of acetone and transfer it into the small test tube.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Align the thermometer end so that it is level with the acetone in the test tube, keeping them close to each other. Invert a capillary tube and place it in the test tube so that the open end is facing downwards.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Use a 250-mL beaker to create a water bath. Add approximately 180 mL of water to the beaker, and place it on the hotplate.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Lower the thermometer and test tube into the water bath. Turn on the hotplate to the lowest setting, about 30&#176;C.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Slowly increase the temperature on the hotplate by 10 &#8211; 20&#176;C every 10 min, and closely observe the liquid in the test tube. When you start to see occasional bubbles in the liquid, increase the heat setting by only 5&#176;C every 10 min.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Closely observe the capillary tube inside the test tube. Report the temperature at which a rapid and continuous stream of bubbles comes out of the capillary.
		<h4><strong>Table 1: Boiling point of acetone and ethanol</strong></h4>
		<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
			<tbody>
				<tr>
					<td></td>
					<td colspan="2" style="text-align: center;"><strong>Boiling point temperature (&#176;C)</strong></td>
				</tr>
				<tr>
					<td></td>
					<td style="text-align: center;"><strong>Bubbles </strong></td>
					<td style="text-align: center;"><strong>Liquid in capillary </strong></td>
				</tr>
				<tr>
					<td>Acetone</td>
					<td></td>
					<td></td>
				</tr>
				<tr>
					<td>Ethanol</td>
					<td></td>
					<td></td>
				</tr>
			</tbody>
		</table>
		<a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/57/Table_1._Boiling_point_of_acetone_and_ethanol.xlsx" target="_blank">Click Here to download Table 1</a></div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Turn off the heat and allow the water bath to cool. Keep observing the capillary as the production of bubbles decreases until no bubbles emerge from the capillary. The liquid will start to rise in the capillary. Record the temperature at which this occurs.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Label a clean 25-mL beaker as &#8216;organic waste&#8217;. Once the water bath has cooled to about 35&#176;C, remove the thermometer and test tube from the bath. Detach the test tube from the thermometer and pour the acetone into the waste beaker.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Use a clean test tube and capillary and repeat the experiment using 1 mL of ethanol.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">After you have measured the boiling point of ethanol, allow the water bath to cool. Once it has cooled sufficiently, remove the test tube and thermometer from the water bath, detach the test tube from the thermometer, and pour the ethanol into the organic waste beaker.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">Dispose of the water from the water bath down the sink and place the capillaries and test tubes in the glass disposal. Dispose of the organic waste in the container provided by your instructor.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Wash all of your glassware with detergent and water.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Results<button class="expand">Expand</button>
	<p>In this experiment, we measured the boiling point of acetone to be 56&#176;C, which compares well to the reported value. Similarly, the boiling point of ethanol was measured to be 78&#176;C. Errors in the boiling point measurement can be attributed to many experimental errors, such as heating the water bath too rapidly, or poor alignment of the thermometer and sample.</p>
	<p>The boiling point of an organic substance is directly related to its structure, where stronger intramolecular forces result in a higher boiling point as molecules are able to hold onto each other and remain in the liquid phase longer. The higher boiling point for ethanol is observed due to the OH structure that causes hydrogen bonding between the molecules. Acetone has a polar CO double bond, which results in dipole-dipole forces. Since hydrogen bonding is stronger than dipole-dipole forces, ethanol has a higher boiling point.</p>
	<p>Additionally, ethanol has a lower molecular weight than acetone. However, molecular weight has less of an impact on the boiling point than the molecular structure. For example, butane is a gas at room temperature and pressure, as it has a boiling point lower than 25&#176;C. Ethanol has a slightly lower molecular mass than butane, but it is liquid at room temperature and, therefore, has a boiling point higher than room temperature. This is due to the hydrogen bonding between the ethanol molecules, which is stronger than the van der Waals forces between the butane molecules.</p>
	<ul class="lab-items">
	</ul>
	</li>
</ol>

Determination of Boiling Points by Capillary Method - Procedure

끓는점

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Boiling point determination of acetone and ethanolExpand
	...

Extraction

Extraction: Liquid-Liquid and Acid-Base Extraction - Procedure

추출

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Cellulose RecoveryExpand
	Extraction and filtration can ...

Simple Distillation

<p>Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA</p>
<ol class="note-items">
	<li data-note-item="1" data-parent-collapse="">Simple Distillation<button class="expand">Expand</button>
	<p>In this lab, you will use simple distillation to separate a mixture of cyclohexane and toluene.</p>
	<ul class="lab-items">
		<li data-sub-note-item="1-2">
		<div class="lab-step">Before you start the lab, put on the appropriate personal protective equipment, including a lab coat, safety goggles, and gloves. This experiment must be conducted in a hood.</div>
		</li>
		<li data-sub-note-item="1-3">
		<div class="lab-step">Assemble the distillation apparatus. Refer to the example set up that has been prepared by your instructor.</div>
		</li>
		<li data-sub-note-item="1-4">
		<div class="lab-step">Then, set up the two stands next to each other in the hood. Place the magnetic stirrer on the base of one of the stands.</div>
		</li>
		<li data-sub-note-item="1-5">
		<div class="lab-step">Set the heating mantle on top of the magnetic stirrer, and then plug it into the temperature controller.</div>
		</li>
		<li data-sub-note-item="1-6">
		<div class="lab-step">Add 5 &#8211; 10 mL of sand to the heating mantle. This will allow more homogeneous heating of the round-bottom flask. Clamp the round-bottom flask to the stand above the heating mantle.</div>
		</li>
		<li data-sub-note-item="1-7">
		<div class="lab-step">Now, obtain cyclohexane and toluene from your instructor. Measure 2 mL of cyclohexane using a volumetric pipette and dispense it into the round-bottom flask.</div>
		</li>
		<li data-sub-note-item="1-8">
		<div class="lab-step">Then, use a clean volumetric pipette to measure 2 mL of toluene and add it to the flask.</div>
		</li>
		<li data-sub-note-item="1-9">
		<div class="lab-step">Carefully insert a thermometer into an adapter by gently pushing and twisting it through the top.</div>
		</li>
		<li data-sub-note-item="1-10">
		<div class="lab-step">Lightly grease the adapter with vacuum grease and insert it into the distilling head. Make sure that the thermometer bulb is below the bend of the distilling head. Then, lightly grease the joints of the distilling head.</div>
		</li>
		<li data-sub-note-item="1-11">
		<div class="lab-step">Add a stir bar to the round-bottom flask and insert the distilling head into the round-bottom flask.</div>
		</li>
		<li data-sub-note-item="1-12">
		<div class="lab-step">Now, clamp the condenser to the second stand with it oriented diagonally toward the side joint of the distilling head.</div>
		</li>
		<li data-sub-note-item="1-13">
		<div class="lab-step">Connect one piece of tubing to the tap water faucet in the hood, and attach the other end to the inlet port of the condenser, which is located farthest from the distilling head.</div>
		</li>
		<li data-sub-note-item="1-14">
		<div class="lab-step">Attach the second tubing to the outlet port, which is located closest to the distilling head, and place the other end of the tubing into the drain.</div>
		</li>
		<li data-sub-note-item="1-15">
		<div class="lab-step">Connect the condenser to the distilling head. Then, lightly grease the joint of the condenser and attach the connecting tube. Place a 10-mL graduated cylinder below the outlet of the tube.</div>
		</li>
		<li data-sub-note-item="1-16">
		<div class="lab-step">Gently lower the setup until the round-bottom flask is seated in the sand in the heating mantle.</div>
		</li>
		<li data-sub-note-item="1-17">
		<div class="lab-step">Double-check all of the connections on your setup to make sure that they are tight and oriented correctly. Secure each joint with a plastic clip.</div>
		</li>
		<li data-sub-note-item="1-18">
		<div class="lab-step">Now, slowly turn on the flow of water to the condenser. <strong>Note:</strong> Be careful not to turn on the water too quickly. If the water pressure is high, the tubing may pop off the condenser.</div>
		</li>
		<li data-sub-note-item="1-19">
		<div class="lab-step">Turn the magnetic stirrer to the lowest setting, and set the temperature controller to heat the mantle to just above 90 &#176;C.</div>
		</li>
		<li data-sub-note-item="1-20">
		<div class="lab-step">Once bubbles start forming in the liquid mixture, adjust the heat until the distillation rate is about 2 drops/min. You should also see drops forming on the thermometer bulb.</div>
		</li>
		<li data-sub-note-item="1-21">
		<div class="lab-step">Record the temperature after every 2 drops that fall into the graduated cylinder or every minute.
		<h4><strong>Table 1: Distillation of toluene and cyclohexane</strong></h4>
		<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
			<tbody>
				<tr>
					<td><strong>Time (min) </strong></td>
					<td><strong>Distilled volume (mL) </strong></td>
					<td><strong>Temperature (&#176;C) </strong></td>
				</tr>
				<tr>
					<td style="text-align: center;">1</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">2</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">3</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">4</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">5</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">6</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">7</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">8</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">9</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">10</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">11</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">12</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">13</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">14</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
				<tr>
					<td style="text-align: center;">15</td>
					<td style="text-align: center;"></td>
					<td style="text-align: center;"></td>
				</tr>
			</tbody>
		</table>
		<a href="https://jove.unicartagenaproxy.elogim.com/CDNSource/lm/labs/60/Table_1._Distillation_of_toluene_and_cyclohexane.xlsx" target="_blank">Click Here to download Table 1</a></div>
		</li>
		<li data-sub-note-item="1-22">
		<div class="lab-step">When there is about 0.5 mL of the mixture remaining in the flask, which will look like a thin layer of liquid, turn off the heat and gently lift the glassware setup from the heating mantle. <strong>Note:</strong> Never heat the mixture until the flask is dry as this may cause an explosion.</div>
		</li>
		<li data-sub-note-item="1-23">
		<div class="lab-step">Remove the stir plate with the heating mantle and set it aside.</div>
		</li>
		<li data-sub-note-item="1-24">
		<div class="lab-step">Then, turn off the water to the condenser and allow the setup to cool completely. When it is cool, carefully disassemble the glassware.</div>
		</li>
		<li data-sub-note-item="1-25">
		<div class="lab-step">Dispose of all solutions in the non-halogenated organic waste container. Clean your glassware with acetone followed by detergent and deionized water.</div>
		</li>
	</ul>
	</li>
	<li data-note-item="2" data-parent-collapse="">Results<button class="expand">Expand</button>
	<ul class="lab-items">
		<li data-sub-note-item="2-1">
		<div class="lab-step">Plot the dew point temperature versus the distilled volume during the experiment. We see that drops start to fall into the collection vessel at ~ 81 &#176;C, which is the boiling point of cyclohexane. As the distillation progresses, the temperature increases to almost 111 &#176;C, which is the boiling point of toluene.</div>
		</li>
		<li data-sub-note-item="2-2">
		<div class="lab-step">Early in the distillation, the vapor is rich in cyclohexane. As the second milliliter is distilled, the temperature increases by ~ 20 &#176;C, which tells us that the amount of toluene in the vapor is increasing significantly. The temperature stabilizes as it approaches 111 &#176;C, which tells us that the vapor is rich in toluene towards the end of the distillation.</div>
		</li>
		<li data-sub-note-item="2-3">
		<div class="lab-step">Look at a boiling point diagram for cyclohexane and toluene, with the mole percent of cyclohexane and toluene on the x-axis and the temperature on the y-axis. The solid line denotes the bubble point, and the dashed line denotes the dew point.</div>
		</li>
		<li data-sub-note-item="2-4">
		<div class="lab-step">Use the dew point curve to determine the composition of the vapor throughout the distillation. For example, after 0.5 mL has been distilled, the condensing vapor is about 84 &#176;C. This corresponds to 95% cyclohexane on the dew point curve.</div>
		</li>
		<li data-sub-note-item="2-5">
		<div class="lab-step">Once you know the composition of the vapor at each point, estimate the composition of the boiling mixture throughout the distillation. At room temperature, cyclohexane and toluene have nearly the same number of moles per milliliter, so think of the percentages in terms of volume.</div>
		</li>
		<li data-sub-note-item="2-6">
		<div class="lab-step">To determine how much of each liquid was distilled in each step, apply each percentage to the volume of liquid distilled since the previous measurement. This tells us that we distilled 1.9 mL of cyclohexane and 1.1 mL of toluene from our mixture of 2 mL of each liquid. Thus, our distillate was 63% cyclohexane and 37% toluene, and our remaining liquid mixture was 10% cyclohexane and 90% toluene.</div>
		</li>
	</ul>
	</li>
</ol>

Simple Distillation: Separation of a Mixture of Cyclohexane and Toluene - Procedure

간단한 증류

Source: Lara Al Hariri and Ahmed Basabrain at the University of Massachusetts Amherst, MA, USA

	Simple DistillationExpand
	In this lab, you will use ...

현장에서 불타의 실험실 연구에 대 한 실험 절차: 가연성 및 원유의 점화 효율성

요약

더 많은 비디오 탐색

이 비디오의 챕터
