Transistors play a vital role in electronic circuits, enabling the functionality of amplifiers, memories, and microprocessors. Transistors can be designed ...

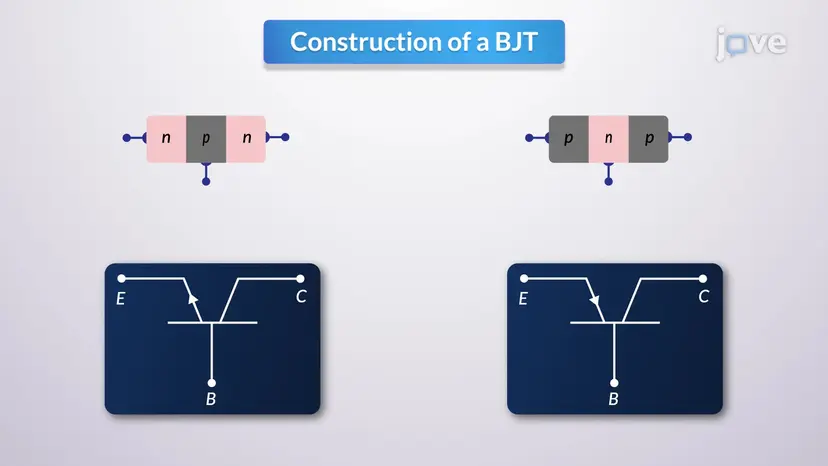

Bipolar Junction Transistors (BJTs) are categorized into various types based on their configurations, each with distinct characteristics and applications. ...

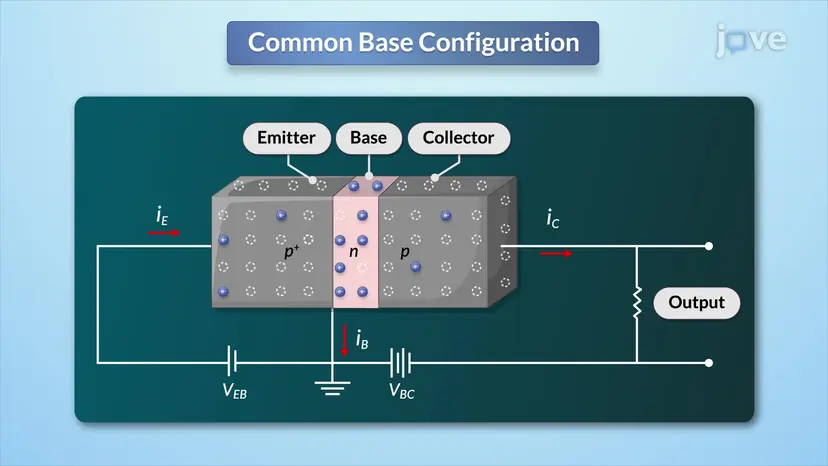

Consider a PNP transistor in a common-base configuration, operating in active mode. Forward biasing reduces the emitter-base potential, enabling the ...

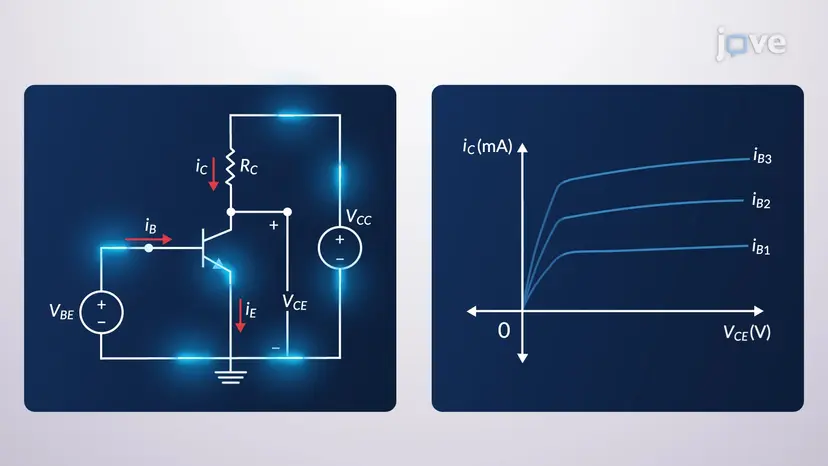

Consider the common-emitter configuration of the BJT. The voltage and current dependencies are measured experimentally to understand the current-voltage ...

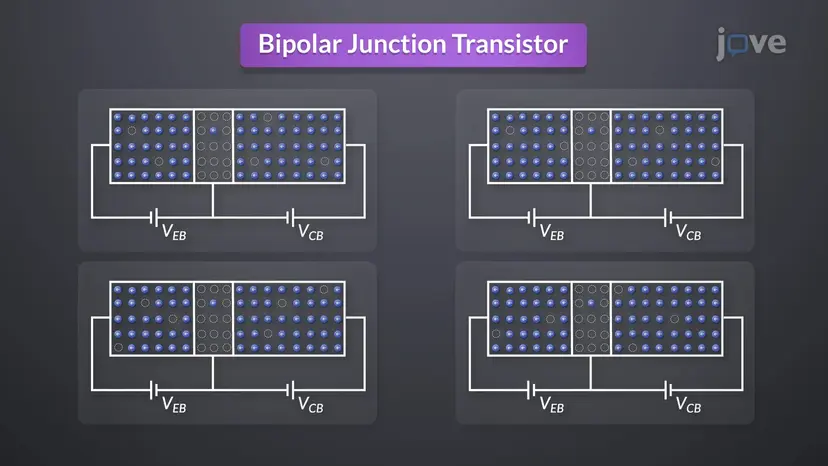

A bipolar junction transistor has four modes of operation, depending upon the voltage polarities at the emitter-base junction and the collector-base ...

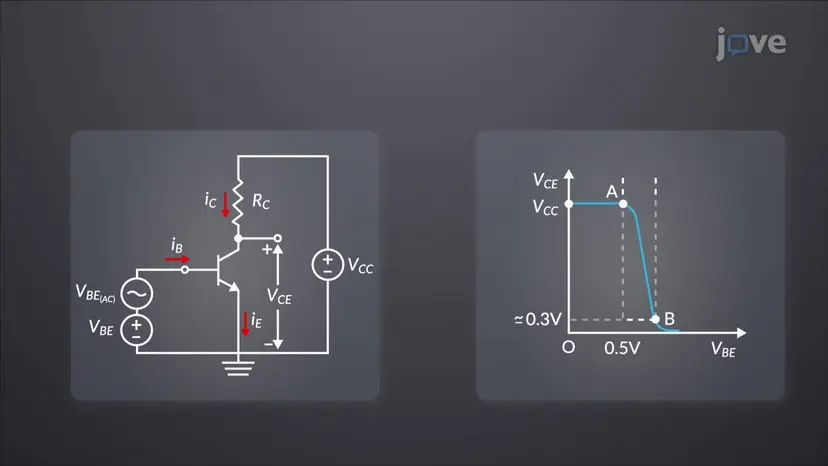

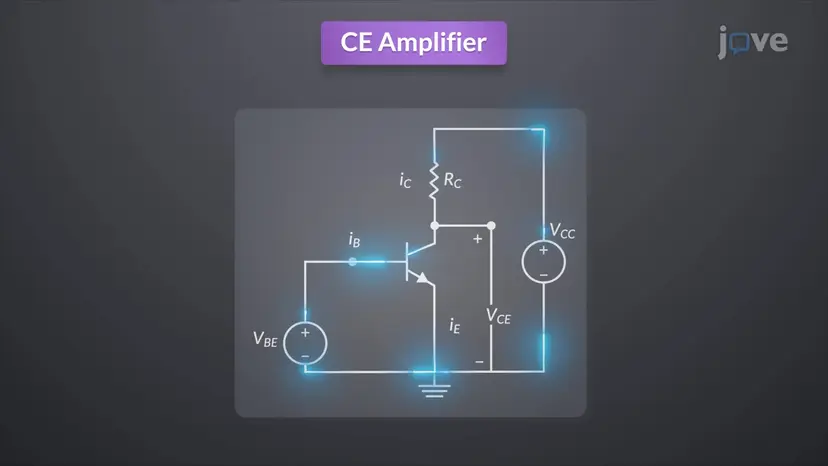

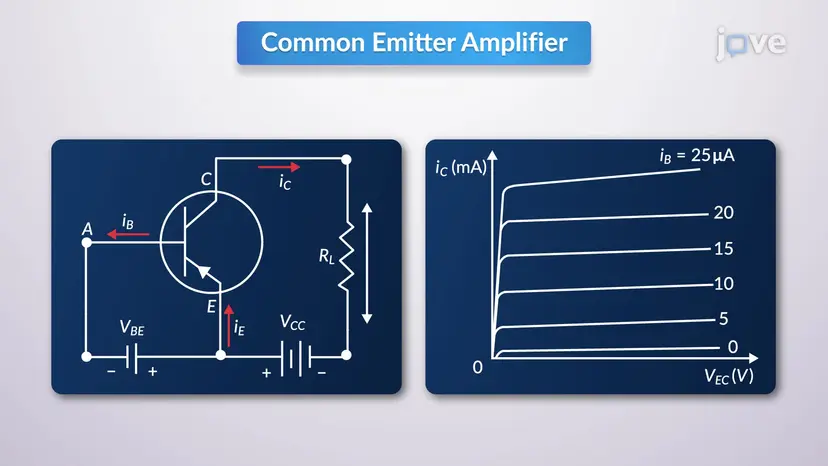

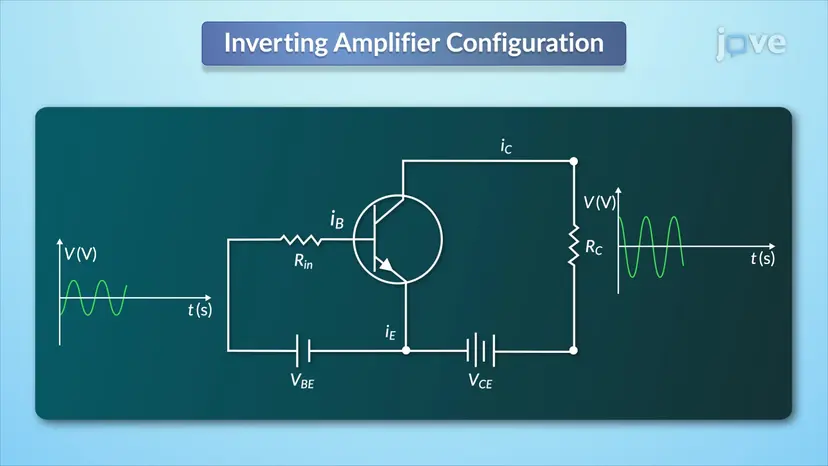

A common-emitter amplifier's DC bias point is determined by the base-emitter voltage, base current, and collector current. The load line is determined ...

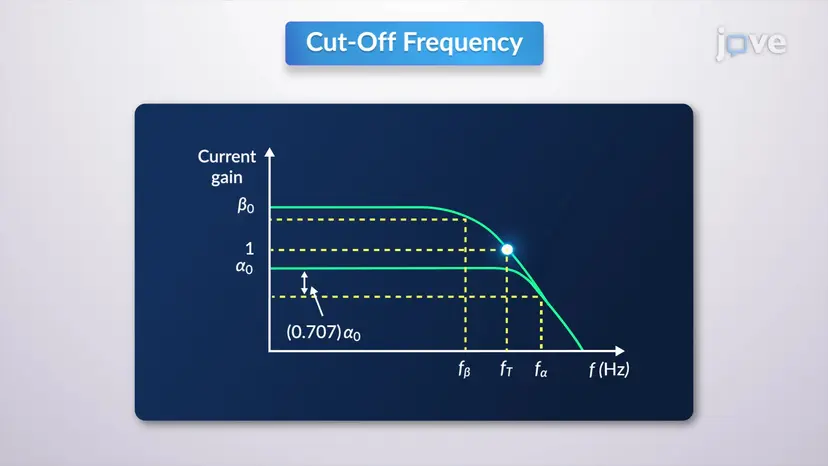

The common base configuration's current gain is constant at low frequencies of the input signal but attenuates after a specific frequency known as the ...

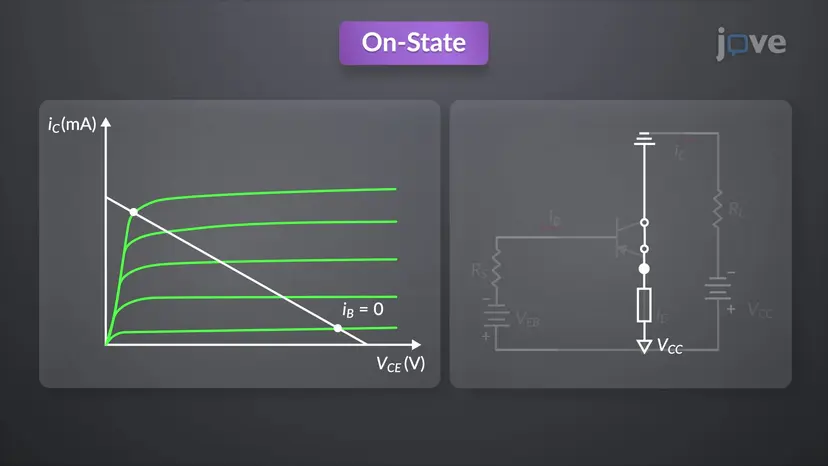

Consider a switching circuit that involves a sudden change in the emitter-base voltage. Initially, both the base-emitter junction and the ...

In the active region of a common emitter NPN BJT, the emitter current is the sum of the base current and the collector current. Here, the base voltage ...

Small signal analysis is a fundamental approach used in electronics to understand how a Bipolar Junction Transistor (BJT) amplifier processes signals. In ...

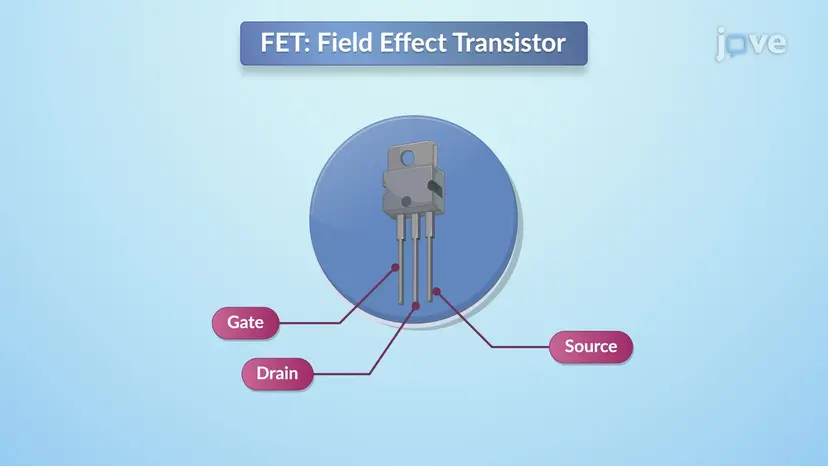

A field effect transistor is a three-terminal unipolar device comprising a gate, drain, and source terminal. Charge carriers flow from the source to the ...

The output characteristics of a JFET describe the relationship between the drain current and the drain-source voltage at various levels of gate-source ...

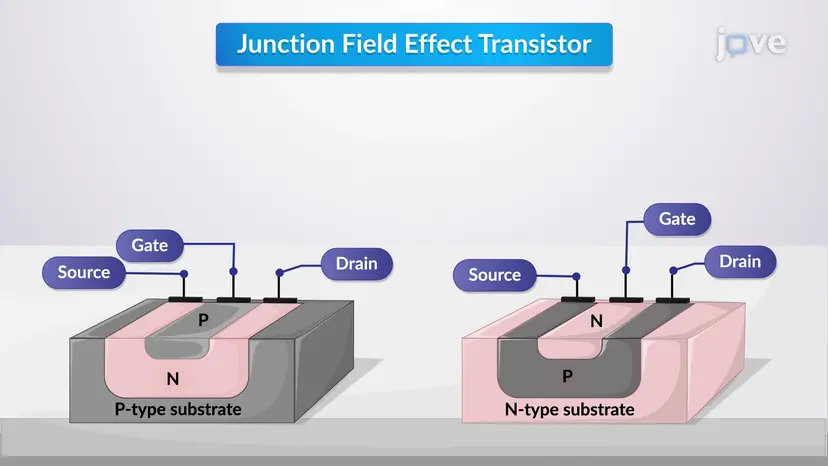

A junction field effect transistor is used in electronic circuits to control electrical currents. JFETs consist of an N-type or P-type silicon bar ...

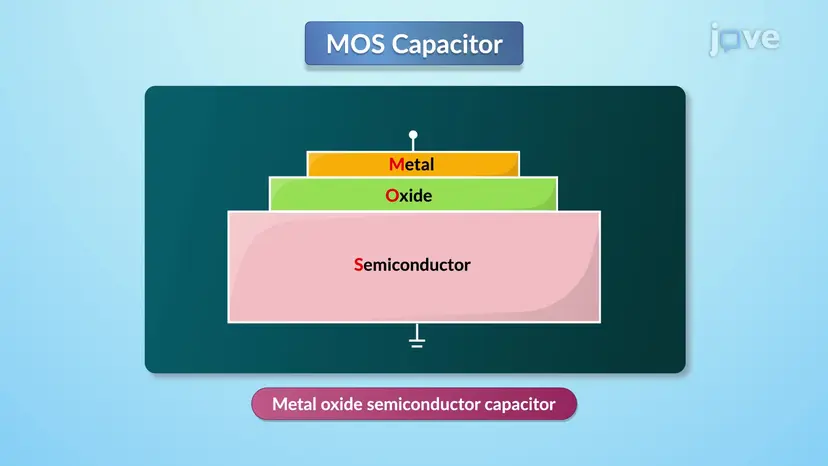

MOS capacitors have three layers: the bottom layer is a semiconductor substrate, the middle is an insulating layer, and the top metal layer is the gate ...

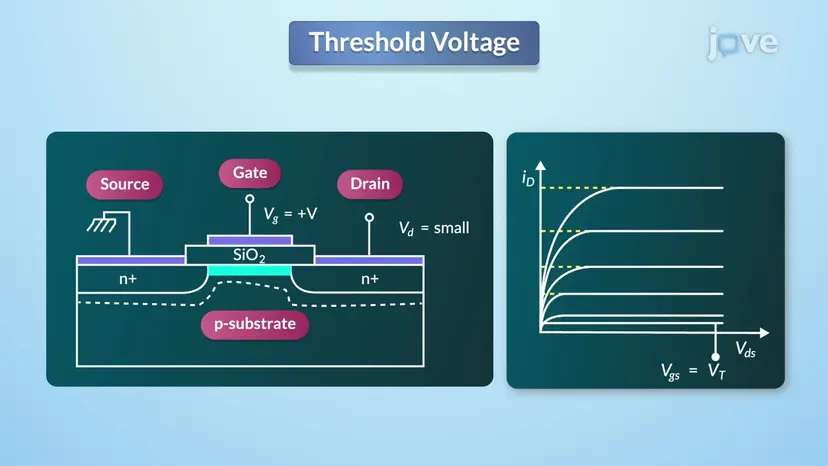

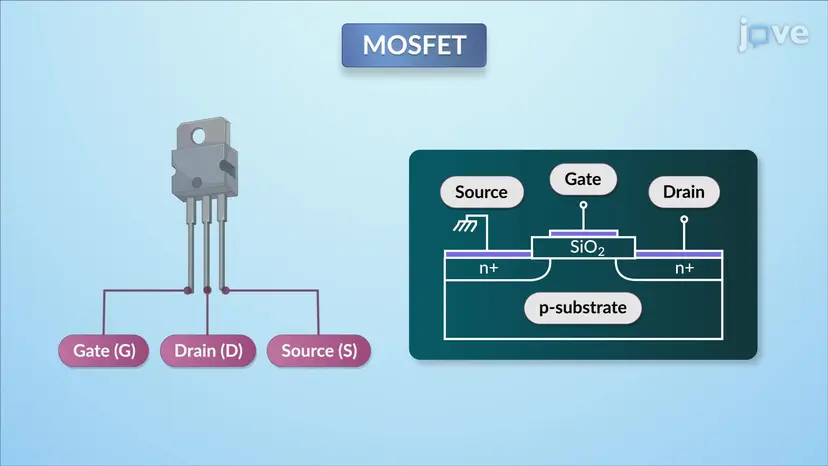

The Metal-Oxide-Semiconductor Field-Effect Transistor, or MOSFET is a semiconductor device with three terminals: the Source, the Drain, and the Gate and ...

The essential parameters of MOSFETs include the channel length, the channel width, the oxide thickness, the junction depth, and the substrate doping. With ...

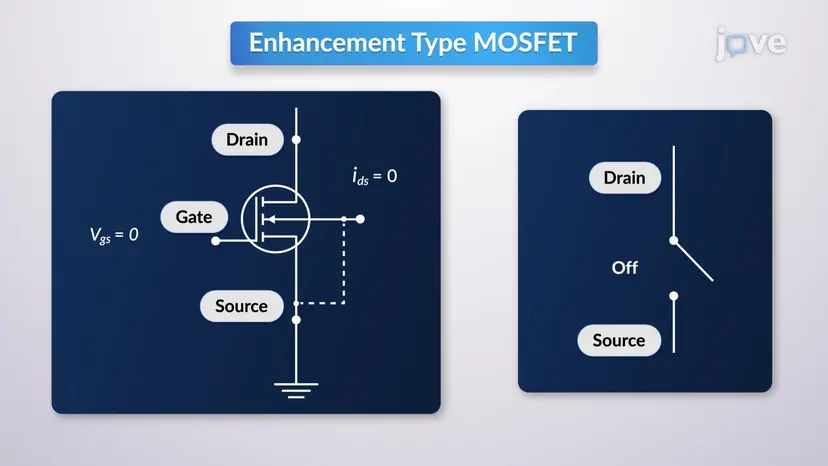

Enhancement-mode MOSFETs are pivotal components in electronics, distinguished by their capacity to act as highly efficient switches. They are part of the ...

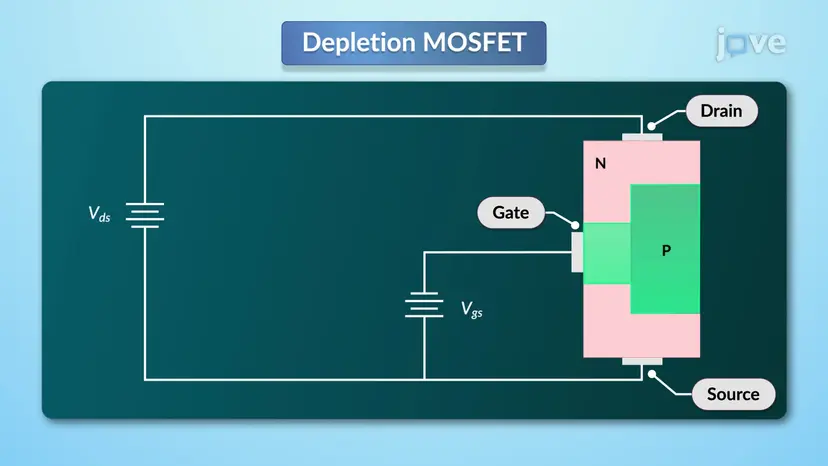

Depletion-mode MOSFETs are already ON without a gate bias but need a gate-source voltage to switch OFF. They function like JFETs, where the drain-source ...

The MOSFET operates as a voltage-controlled current source in its active region, where the gate-to-source voltage regulates the drain current. This ...

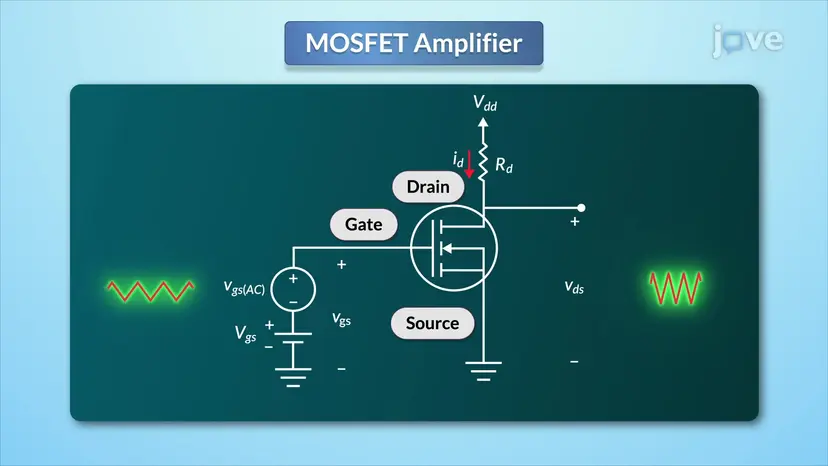

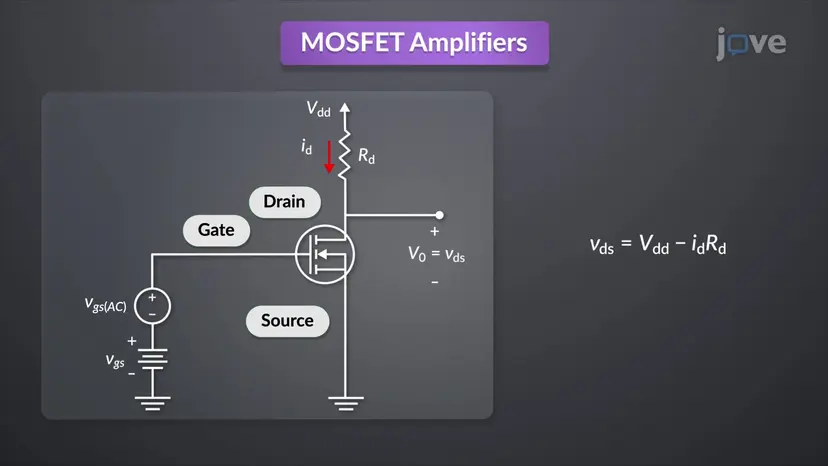

In small-signal analysis, a MOSFET transistor amplifier acts as a linear amplifier when operating in its saturation region. The gate-to-source voltage ...
