We gratefully acknowledge the Swedish Research Council Formas for generous financial support.

1. Gram-scale Synthesis of Methyl 6-oxo-3,4,6-triphenylhexanoate
<ol>
	<li>Dry 1-ethyl-3-methyl imidazolium acetate (EMIMAc) in a round bottom flask on a rotary evaporator at 10 mBar, 40 &#176;C for 1 hr.</li>
	<li>Add 2.1 g of dry EMIMAc and 1.0 g of 1,3-diphenyl-2-propen-1-one to a 100 ml round bottom flask equipped with a magnetic stirrer.</li>
	<li>Add 2.019 ml of methanol and 2.3 g of cinnamaldehyde to the flask.</li>
	<li>At room temperature (22 &#176;C) dissolve the mixture in 60 ml of dichloromethane by stirring for 1 min.</li>
	<li>Subsequently add 0.37 ml of 1.8-diazabicyclo[5.4.0]undec-7-ene (DBU) to the stirring mixture (step 1.4) and cap the round bottom flask.</li>
	<li>Stir with a magnetic stir bar at a speed of 500 rpm at room temperature (22 &#176;C).</li>
	<li>Check completion of the reaction with 1H NMR.24 Look for disappearance of double bond of the chalcone in the 7.8 ppm area.</li>
	<li>When the reaction has reached completion remove the volatiles on a rotary evaporator at 10 mBar, 20 &#176;C for 15 min.</li>
	<li>Add 50 ml methanol to the residue to dissolve the EMIMAc by stirring with a magnetic stir bar.</li>
	<li>Remove the solids from the walls of the flask by stirring violently with a magnetic stir bar at a speed of 750 rpm for 30 min. If necessary, use a spatula to remove remaining solids from the walls.</li>
	<li>Filter the mixture on a frit (pore size 3).</li>
	<li>Wash with additional 20 ml of methanol. If recycling of the EMIMAc is desired evaporate the methanolic filtrate. (step 2.1).</li>
	<li>Still on the frit, gently divide the filter cake (from step 1.11) into smaller pieces with a spatula and transfer the solids via a powder funnel to a pre-weighed round bottom flask and dry the solids under vacuum.</li>
	<li>Weigh the flask and calculate the yield.</li>
	<li>Analyze the product by 1H NMR (step 1.7). Compare with reported spectra.24</li>
</ol>
2. Recycling of EMIMAc
<ol>
	<li>Remove the volatiles from the methanolic mixture (from step 1.12) under reduced pressure of 10 mBar, at 40 &#176;C for 30 min.</li>
	<li>Analyze the resulting oil by 1H NMR and 13C NMR to check that EMIMAc is present.24</li>
	<li>Use the recycled EMIMAc starting from step 1.2.</li>
</ol>
3. Gelation
<ol>
	<li>Preparation of a Stock Solution
	<ol>
		<li>Add 200 mg of Methyl 6-oxo-3,4,6-triphenylhexanoate (the product from step 1.15) and a magnetic stir bar to a vial. Add 2.0 ml dichloromethane to dissolve the ketoester. Stir until everything has dissolved.</li>
	</ol>
	</li>
	<li>Gelation
	<ol>
		<li>Add 50 ml of heptane to a 500 ml beaker. Add 1.5 ml of the stock solution to the heptane. Stir swiftly to ensure adequate mixing and let stand without stirring at ambient temperature until gelation occurs.</li>
	</ol>
	</li>
</ol>

<ol>
	<li>Hallett, J. P., Welton, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Room-Temperature+Ionic+Liquids:+Solvents+for+Synthesis+and+Catalysis.+2.">Room-Temperature Ionic Liquids: Solvents for Synthesis and Catalysis. 2.</a> Chem. Rev. 111, 3508-3576 (2011).</li><li>Welton, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Room-Temperature+Ionic+Liquids.+Solvents+for+Synthesis+and+Catalysis.">Room-Temperature Ionic Liquids. Solvents for Synthesis and Catalysis.</a> Chem. Rev. 99, 2071-2084 (1999).</li><li>Vora, H. U., Wheeler, P., Rovis, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Exploiting+acyl+and+enol+azolium+intermediates+via+N-hetero-+cyclic+carbene-catalyzed+reactions+of+&#945;-reducible+aldehydes.">Exploiting acyl and enol azolium intermediates via N-hetero- cyclic carbene-catalyzed reactions of &#945;-reducible aldehydes.</a> Adv. Synth. Catal. 354, 1617-1639 (2012).</li><li>Holloczki, O., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Carbenes+in+ionic+liquids.">Carbenes in ionic liquids.</a> New J. Chem. 34, 3004-3009 (2010).</li><li>Enders, D., Balensiefer, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nucleophilic+Carbenes+in+Asymmetric+Organocatalysis.">Nucleophilic Carbenes in Asymmetric Organocatalysis.</a> Acc. Chem. Res. 37, 534-541 (2004).</li><li>Enders, D., Niemeier, O., Henseler, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Organocatalysis+by+N-Heterocyclic+Carbenes.">Organocatalysis by N-Heterocyclic Carbenes.</a> Chem. Rev. 107, 5606-5655 (2007).</li><li>List, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Enamine+Catalysis+Is+a+Powerful+Strategy+for+the+Catalytic+Generation+and+Use+of+Carbanion+Equivalents.">Enamine Catalysis Is a Powerful Strategy for the Catalytic Generation and Use of Carbanion Equivalents.</a> Acc. Chem. Res. 37, 548-557 (2004).</li><li>Nair, V., Bindu, S., Sreekumar, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=N-Heterocyclic+carbenes:+Reagents,+not+just+ligands!.">N-Heterocyclic carbenes: Reagents, not just ligands!.</a> Angew. Chem. Int. Ed. 43, 5130-5135 (2004).</li><li>Marion, N., D&#236;ez-Gonz&#225;lez, S., Nolan, S. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=N-Heterocyclic+Carbenes+as+Organocatalysts.">N-Heterocyclic Carbenes as Organocatalysts.</a> Angew. Chem. Int. Ed. 46, 2988-3000 (2007).</li><li>Biju, A. T., Kuhl, N., Glorius, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Extending+NHC-Catalysis:+Coupling+Aldehydes+with+Unconventional+Reaction+Partners.">Extending NHC-Catalysis: Coupling Aldehydes with Unconventional Reaction Partners.</a> Acc. Chem. Res. 44, 1182-1195 (2011).</li><li>Bugaut, X., Glorius, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Organocatalytic+umpolung:+N-heterocyclic+carbenes+and+beyond.">Organocatalytic umpolung: N-heterocyclic carbenes and beyond.</a> Chem. Soc. Rev. 41, 3511-3522 (2012).</li><li>Davis, h. j., Forrester, K. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Thiazolium-ion+based+organic+ionic+liquids+(OILs).1,2+Novel+OILs+which+promote+the+benzoin+condensation.">Thiazolium-ion based organic ionic liquids (OILs).1,2 Novel OILs which promote the benzoin condensation.</a> Tetrahedron Lett. 40, 1621-1622 (1999).</li><li>Xu, L. -. W., Gao, Y., Yin, J. -. J., Li, L., Xia, C. -. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Efficient+and+mild+benzoin+condensation+reaction+catalyzed+by+simple+1-N-alkyl-3-methylimidazolium+salts.">Efficient and mild benzoin condensation reaction catalyzed by simple 1-N-alkyl-3-methylimidazolium salts.</a> Tetrahedron Lett. 46, 5317-5320 (2005).</li><li>Jiang, F. S., Yu, H., Gao, G., Xie, R. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Benzoin+condensation+in+imidazolium+based+room-temperature+ionic+liquids.">Benzoin condensation in imidazolium based room-temperature ionic liquids.</a> Chin. Chem. Lett. 16, 321-324 (2005).</li><li>Estager, J., L&#233;v&#234;que, J. M., Turgis, R., Draye, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Solventless+and+swift+benzoin+condensation+catalyzed+by+1-alkyl-3-methylimidazolium+ionic+liquids+under+microwave+irradiation.">Solventless and swift benzoin condensation catalyzed by 1-alkyl-3-methylimidazolium ionic liquids under microwave irradiation.</a> J. Mol. Catal. A: Chem. 256, 261-264 (2006).</li><li>Estager, J., L&#233;v&#234;que, J. -. M., Turgis, R., Draye, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neat+benzoin+condensation+in+recyclable+room-temperature+ionic+liquids+under+ultrasonic+activation.">Neat benzoin condensation in recyclable room-temperature ionic liquids under ultrasonic activation.</a> Tetrahedron Lett. 48, 755-759 (2007).</li><li>Orsini, M., Chiarotto, I., Elinson, M. N., Sotgiu, G., Inesi, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Benzoin+condensation+in+1,3-dialkylimidazolium+ionic+liquids+via+electrochemical+generation+of+N-heterocyclic+carbene.">Benzoin condensation in 1,3-dialkylimidazolium ionic liquids via electrochemical generation of N-heterocyclic carbene.</a> Electrochem. Commun. 11, 1013-1017 (2009).</li><li>Dunn, M. H., Cole, M. L., Harper, J. B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effects+of+an+ionic+liquid+solvent+on+the+synthesis+of+[gamma]-butyrolactones+by+conjugate+addition+using+NHC+organocatalysts.">Effects of an ionic liquid solvent on the synthesis of [gamma]-butyrolactones by conjugate addition using NHC organocatalysts.</a> RSC Advances. 2, 10160-10162 (2012).</li><li>Kelemen, Z., Holloczki, O., Nagy, J., Nyulaszi, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+organocatalytic+ionic+liquid.">An organocatalytic ionic liquid.</a> Org. Biomol. Chem. 9, 5362-5364 (2011).</li><li>Yu, F. -. L., Zhang, R. -. L., Xie, C. -. X., Yu, S. -. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Synthesis+of+thermoregulated+phase-separable+triazolium+ionic+liquids+catalysts+and+application+for+Stetter+reaction.">Synthesis of thermoregulated phase-separable triazolium ionic liquids catalysts and application for Stetter reaction.</a> Tetrahedron. 66, 9145-9150 (2010).</li><li>Aupoix, A., Vo-Thanh, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Solvent-free+synthesis+of+alkylthiazolium-based+ionic+liquids+and+their+use+as+catalysts+in+the+intramolecular+Stetter+reaction.">Solvent-free synthesis of alkylthiazolium-based ionic liquids and their use as catalysts in the intramolecular Stetter reaction.</a> Synlett. , 1915-1920 (2009).</li><li>Yu, F. -. L., Jiang, J. -. J., Zhao, D. -. M., Xie, C. -. X., Yu, S. -. T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Imidazolium+chiral+ionic+liquid+derived+carbene-catalyzed+conjugate+umpolung+for+synthesis+of+[gamma]-butyrolactones.">Imidazolium chiral ionic liquid derived carbene-catalyzed conjugate umpolung for synthesis of [gamma]-butyrolactones.</a> RSC Advances. 3, 3996-4000 (2013).</li><li>Liu, D., Zhang, Y., Chen, E. Y. X. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Organocatalytic+upgrading+of+the+key+biorefining+building+block+by+a+catalytic+ionic+liquid+and+N-heterocyclic+carbenes.">Organocatalytic upgrading of the key biorefining building block by a catalytic ionic liquid and N-heterocyclic carbenes.</a> Green Chem. 14, 2738-2746 (2012).</li><li>Ta, L., Axelsson, A., Bijl, J., Haukka, M., Sund&#233;n, H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ionic+Liquids+as+Precatalysts+in+the+Highly+Stereoselective+Conjugate+Addition+of+&#945;,&#946;-Unsaturated+Aldehydes+to+Chalcones.">Ionic Liquids as Precatalysts in the Highly Stereoselective Conjugate Addition of &#945;,&#946;-Unsaturated Aldehydes to Chalcones.</a> Chem. Eur. J. 20, 13889-13893 (2014).</li><li>Nair, V., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nucleophilic+Heterocyclic+Carbene+Catalyzed+Annulation+of+Enals+to+Chalcones+in+Methanol:+A+Stereoselective+Synthesis+of+Highly+Functionalized+Cyclopentanes.">Nucleophilic Heterocyclic Carbene Catalyzed Annulation of Enals to Chalcones in Methanol: A Stereoselective Synthesis of Highly Functionalized Cyclopentanes.</a> Org. Lett. 11, 2507-2510 (2009).</li><li>Ma, J., Huang, Y., Chen, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=N-Heterocyclic+carbene-catalyzed+(NHC)+three-component+domino+reactions:+highly+stereoselective+synthesis+of+functionalized+acyclic+&#1013;-ketoesters.">N-Heterocyclic carbene-catalyzed (NHC) three-component domino reactions: highly stereoselective synthesis of functionalized acyclic &#1013;-ketoesters.</a> Org. Biomol. Chem. 9, 1791-1798 (2011).</li><li>Domingo, L. R., Saez, J. A., Arno, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+DFT+study+on+the+NHC+catalysed+Michael+addition+of+enols+to+&#945;,&#946;-unsaturated+acyl-azoliums.+A+base+catalysed+C-C+bond-formation+step.">A DFT study on the NHC catalysed Michael addition of enols to &#945;,&#946;-unsaturated acyl-azoliums. A base catalysed C-C bond-formation step.</a> Org. Biomol. Chem. 12, 895-904 (2014).</li><li>Kaeobamrung, J., Mahatthananchai, J., Zheng, P., Bode, J. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+Enantioselective+Claisen+Rearrangement+Catalyzed+by+N-Heterocyclic+Carbenes.">An Enantioselective Claisen Rearrangement Catalyzed by N-Heterocyclic Carbenes.</a> J. Am. Chem. Soc. 132, 8810-8812 (2010).</li><li>Zweep, N., van Esch, J. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Functional Molecular Gels. , 1-29 (2014).</li><li>Chiang, P. -. C., Kaeobamrung, J., Bode, J. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Enantioselective,+Cyclopentene-Forming+Annulations+via+NHC-Catalyzed+Benzoin&#8722;Oxy-Cope+Reactions.">Enantioselective, Cyclopentene-Forming Annulations via NHC-Catalyzed Benzoin&#8722;Oxy-Cope Reactions.</a> J. Am. Chem. Soc. 129, 3520-3521 (2007).</li></ol>

The authors have nothing to disclose.

Based on the anti-configuration determined by X-ray analysis of ketoester 3 and on the mechanistic investigation proposed by Bode and co-workers30 the following reaction path is suggested (Figure 5). Deprotonation of the IL generates NHC species; the NHC reacts with the unsaturated aldehyde to form the Breslow intermediate I. The Breslow intermediate and the chalcone react in a cross-benzoin reaction to form diene II. Intermediate II undergoes an oxy-Cope rearrangement via boat transi...

<img alt="TOC 1" src="/files/ftp_upload/53213/53213TOC.jpg" />
(Above) Three-component synthesis of 1,6-ketoesters: a new class of low molecular weight gelators.

Ionic liquids (ILs) have high stability, low volatility, non-flammability and have therefore rendered attention as safe reaction media and ideal solvents for recycling.1-3 Dialkyl imidazoliums are a certain type of ionic liquids that, in the presence of a base, can be deprotonated to render an N-heterocyclic carbene (NHC).4 In the field of organocatalysis, NHCs, operating under distinct reaction paths, have found widespread usage in a broad range of generic reactions.5-11
Despite this, the connection between ILs and C-C bond forming NHC&#8211;catalysis is relatively unexplored. Nevertheless, NHCs derived from ILs have been reported to catalyze C-C bond forming reactions such as the benzoin condensation and the Stetter reaction.12-22 For example, Davis et al. have shown that ILs derived from N-alkyl thiazoliums serve as precatalysts in the formation of benzoin from benzaldehyde.12
More recently, Chen and co-workers expanded this concept using an imidazolium based IL, 1-ethyl-3-methyl imidazolium acetate (EMIMAc), to perform the benzoin condensation on 5-hydroxymethylfurfural (HMF) to generate 5,5&#8217;-di(hydroxymethyl)furoin (DHMF).23 Given that ILs are commercially available and offer an inexpensive way of generating NHCs, we were interested in investigating what other types of reactions ILs could perform. To this end, we found that dialkyl imidazoliums could efficiently be used as precatalysts in the formal conjugate addition of unsaturated aldehydes to chalcones (Figure 1) giving 1,6-ketoesters. The most efficient IL, EMIMAc, promotes a highly stereoselective reaction between cinnamaldehyde and chalcone. The reaction occurs with high preference for the anti-diastereomer and the 1,6-ketoesters can be isolated in yields up to 92%.24,25,26
<img alt="Figure 1" src="/files/ftp_upload/53213/53213fig1.jpg" />
Figure 1: IL-mediated three-component, stereoselective addition of cinnamaldehyde to chalcone.

<table><tbody><tr><td>1-ethyl-3-methyl imidazolium acetate</td><td>Aldrich</td><td>51053-100G-F</td><td>Produced by BASF &amp;ge;90%, dried on a rotary evaporated before use (10 mBar, 40 &amp;deg;C, 1 hr)&lt;br/&gt; CAS NUMBER: 143314-17-4</td></tr><tr><td>1,3-diphenyl-2-propen-1-one</td><td>Aldrich</td><td>11970-100G</td><td>98.0%&lt;br/&gt; CAS NUMBER: 94-41-7</td></tr><tr><td>trans-cinnamaldehyde&amp;nbsp;</td><td>Aldrich</td><td>C80687-25G</td><td>99%, stored under nitrogen prior to use&lt;br/&gt; CAS NUMBER: 14371-10-9</td></tr><tr><td>1,8-Diazobicyclo[5.4.0]undec-7-ene</td><td>Aldrich</td><td>139009-25G</td><td>98%&lt;br/&gt; CAS NUMBER: 6674-22-2</td></tr><tr><td>Methanol</td><td>Sigma-Aldrich</td><td>32213N-2.5L</td><td>puriss. P.a., ACS reagent, reag. ISO, reag. Ph. Eur. &amp;ge;99.8% (GC)&lt;br/&gt; CAS NUMBER: 67-56-1</td></tr><tr><td>Dichloromethane</td><td>Fischer Chemical</td><td>D/1852/17X</td><td>Analytic reagent grade, stabilized with amylene&lt;br/&gt; CAS NUMBER: 9/2/1975</td></tr><tr><td>n-Heptane</td><td>Fischer Chemical</td><td>H/0160/17X</td><td>Analytic reagent grade&lt;br/&gt; CAS NUMBER: 142-82-5</td></tr></tbody></table>

highly stereoselective synthesis of 1,6-ketoesters mediated by ionic liquids: a three-component reaction enabling rapid access to a new class of low molecular weight gelators

In organic chemistry ionic liquids (ILs) have emerged as safe and recyclable reaction solvents. In the presence of a base ILs can be deprotonated to form catalytically active N-Heterocyclic Carbenes (NHCs). Here we have used ILs as precatalysts in the addition of &#945;,&#946;-unsaturated aldehydes to chalcones to form 1,6-ketoesters, incorporating an anti-diphenyl moiety in a highly stereoselective fashion. The reaction has a broad substrate scope and several functional groups and heteroaromatics can be integrated into the ketoester backbone in generally good yields with maintained stereoselectivity. The reaction protocol is robust and scalable. The starting materials are inexpensive and the products can be obtained after simple filtration, avoiding solvent-demanding chromatography. Furthermore, the IL can be recycled up to 5 times without any loss of reactivity. Moreover, the 1,6-ketoester end product is a potent gelator in several hydrocarbon based solvents. The method enables rapid access to and evaluation of a new class of low molecular weight gelators (LMWGs) from recyclable and inexpensive starting materials.

As exemplified above, EMIMAc serve as a precatalyst in the formal conjugate addition of &#945;,&#946;-unsaturated aldehyde to chalcones. Other commercially available imidazolium based ILs such as 1-ethyl-3-methylimidazolium chloride (EMIMCl) and 1-butyl-3-methylimidazolium chloride (BMIMCl) were also investigated, however, these reactions proceeded in lower yields indicating that the acetate anion may be important for reactivity (Table 1, entry 1-3).27,28*
<p class="jove_c...

Watch this Scientific Journal Video about Highly Stereoselective Synthesis of 1,6-Ketoesters Mediated by Ionic Liquids: A Three-component Reaction Enabling Rapid Access to a New Class of Low Molecular

Highly Stereoselective Synthesis of 1,6-Ketoesters Mediated by Ionic Liquids: A Three-component Reaction Enabling Rapid Access to a New Class of Low Molecular Weight Gelators

Ionic liquids (ILs) mediate fast, simple and cheap access to 1,6-ketoesters in high diastereoselectivities and good yields. The reaction protocol is robust and the 1,6-ketoesters can be obtained in gram scale after a simple filtration protocol. Moreover, the 1,6-ketoesters are potent gelators in hydrocarbon solvents.

In organic chemistry ionic liquids (ILs) have emerged as safe and recyclable reaction solvents. In the presence of a base ILs can be deprotonated to form ...

highly-stereoselective-synthesis-16-ketoesters-mediated-ionic-liquids

Universidad de Cartagena UDEC

Research

JoVE Journal

Chemistry

8.7K Views.  Chalmers University of Technology. Ionic liquids (ILs) mediate fast, simple and cheap access to 1,6-ketoesters in high diastereoselectivities and good yields. The reaction protocol is robust and the 1,6-ketoesters can be obtained in gram scale after a simple filtration protocol. Moreover, the 1,6-ketoesters are potent gelators in hydrocarbon solvents.

Video: Highly Stereoselective Synthesis of 1,6-Ketoesters Mediated by Ionic Liquids: A Three-component Reaction Enabling Rapid Access to a New Class of Low Molecular Weight Gelators

Separation of Aldehydes and Reactive Ketones from Mixtures Using a Bisulfite Extraction Protocol

The purification of organic compounds is an essential component of routine synthetic operations. The ability to remove contaminants into an aqueous layer by generating a charged structure provides an opportunity to use extraction as a simple purification technique. By combining the use of a miscible organic solvent with saturated sodium bisulfite, aldehydes and reactive ketones can be successfully transformed into charged bisulfite adducts that can then be separated from other organic components of a mixture by the introduction of an immiscible organic layer. Here, we describe a simple protocol for the removal of aldehydes, including sterically-hindered neopentyl aldehydes and some ketones, from chemical mixtures. Ketones can be separated if they are sterically unhindered cyclic or methyl ketones. For aliphatic aldehydes and ketones, dimethylformamide is used as the miscible solvent to improve removal rates. The bisulfite addition reaction can be reversed by basification of the aqueous layer, allowing for the re-isolation of the reactive carbonyl component of a mixture.

Here, we present a protocol to remove aldehydes and reactive ketones from mixtures by a liquid-liquid extraction protocol directly with saturated sodium bisulfite in a miscible solvent. This combined protocol is rapid and facile to perform. The aldehyde or ketone can be re-isolated by the basification of the aqueous layer.

The purification of organic compounds is an essential component of routine synthetic operations. The ability to remove contaminants into an aqueous layer ...

A Two-Step Protocol for Umpolung Functionalization of Ketones Via Enolonium Species

&#945;-Functionalization of ketones via umpolung of enolates by hypervalent iodine reagents is an important concept in synthetic organic chemistry. Recently, we have developed a two-step strategy for ketone enolate umpolung that has enabled the development of methods for chlorination, azidation, and amination using azoles. In addition, we have developed C-C bond&#8211;forming arylation and allylation reactions. At the heart of these methods is the preparation of the intermediate and highly reactive enolonium species prior to addition of a reactive nucleophile. This strategy is thus reminiscent of the preparation and use of metal enolates in classical synthetic chemistry. This strategy allows the use of nucleophiles that would otherwise be incompatible with the strongly oxidizing hypervalent iodine reagents. In this paper we present a detailed protocol for chlorination, azidation, N-heteroarylation, arylation, and allylation. The products include motifs prevalent in medicinally active products. This article will greatly assist others in using these methods.

A two step one-pot protocol for the umpolung of ketone enolates to enolonium species and addition of a nucleophile to the &#945;-position is described. Nucleophiles include chloride, azide, azoles, allyl-silanes, and aromatic compounds.

&#945;-Functionalization of ketones via umpolung of enolates by hypervalent iodine reagents is an important concept in synthetic organic chemistry. ...

Chemoselective Preparation of 1-Iodoalkynes, 1,2-Diiodoalkenes, and 1,1,2-Triiodoalkenes Based on the Oxidative Iodination of Terminal Alkynes

We present the chemoselective synthesis of 1-(iodoethynyl)-4-methylbenzene, 1-(1,2-diiodovinyl)-4-methylbenzene, and 1-methyl-4-(1,2,2-triiodovinyl)benzene as representative examples for the practical chemoselective preparation of 1-iodoalkynes, 1,2-diiodoalkenes, and 1,1,2-triiodoalkenes from the chemoselective iodination of terminal alkynes mediated by hypervalent-iodine reagents. The chemoselectivity was confirmed by using p-tolylethyne as a model substrate to screen a variety of iodine sources and/or the hypervalent-iodine reagents. A combination of tetrabutylammonium iodide (TBAI) and (diacetoxyiodo)benzene (PIDA) selectively generates 1-iodoalkynes, while a combination of KI and PIDA generates 1,2-diiodoalkenes. A one-pot synthesis based on both TBAI-PIDA and KI-PIDA yields the corresponding 1,1,2-triiodoalkenes. These protocols were subsequently applied to the synthesis of synthetically important aromatic and aliphatic 1-iodoalkynes, 1,2-diiodoalkenes, and 1,1,2-triiodoalkenes, which were obtained in good yield with excellent chemoselectivity.

Herein, detailed protocols for the oxidative iodination of terminal alkynes using hypervalent-iodine reagents are presented, which chemoselectively afford 1-iodoalkynes, 1,2-diiodoalkenes, and 1,1,2-triiodoalkenes.

We present the chemoselective synthesis of 1-(iodoethynyl)-4-methylbenzene, 1-(1,2-diiodovinyl)-4-methylbenzene, and ...

Synthesis of Esters Via a Greener Steglich Esterification in Acetonitrile

The Steglich esterification is a widely-used reaction for the synthesis of esters from carboxylic acids and alcohols. While efficient and mild, the reaction is commonly performed using chlorinated or amide solvent systems, which are hazardous to human health and the environment. Our methodology utilizes acetonitrile as a greener and less hazardous solvent system. This protocol exhibits rates and yields that are comparable to traditional solvent systems and employs an extraction and wash sequence that eliminates the need for the purification of the ester product via column chromatography. This general method can be used to couple a variety of carboxylic acids with 1&#176; and 2&#176; aliphatic alcohols, benzylic and allylic alcohols, and phenols to obtain pure esters in high yields. The goal of the protocol detailed here is to provide a greener alternative to a common esterification reaction, which could serve useful for ester synthesis in both academic and industrial applications.

A modified Steglich esterification reaction was used to synthesize a small library of ester derivatives with primary and secondary alcohols. The methodology uses a non-halogenated and greener solvent, acetonitrile, and enables product isolation in high yields without the need for chromatographic purification.

The Steglich esterification is a widely-used reaction for the synthesis of esters from carboxylic acids and alcohols. While efficient and mild, the ...

Efficient Construction of Drug-like Bispirocyclic Scaffolds Via Organocatalytic Cycloadditions of &#945;-Imino &#947;-Lactones and Alkylidene Pyrazolones

Bispirocyclic scaffolds are one of the important structural subunits in many natural products that exhibit diverse and attractive biological activities. Recently, we have developed an efficient organocatalytic strategy, which provides facile access to a variety of enantiomerically enriched bispiro[&#947;-butyrolactone-pyrrolidin-4,4&#39;-pyrazolone] skeletons. In this paper, we demonstrate a detailed protocol for the asymmetric synthesis of drug-like bispirocyclic compounds with two spirocyclic carbon centers via an organocatyltic 1,3-dipolar cycloaddition reaction. Spirocyclization synthons &#945;-imino &#947;-lactones and alkylidene pyrazolones are prepared first, which are then subjected to a cycloaddition reaction in the presence of a bifunctional squaramide organocatalyst to afford the desired bispirocycles in high yields and excellent stereoselectivities. Chiral high-performance liquid chromatography (HPLC) is carried out to determine the enantiomeric purity of the products, and the d.r. value is examined by proton nuclear magnetic resonance (1H NMR). The absolute configuration of the product is assigned according to an X-ray crystallographic analysis. This synthetic strategy allows scientists to prepare a diversity of bispirocyclic scaffolds in high yields and excellent diastereo- and enantioselectivities.

Enantiomerically enriched bispiro[&#947;-butyrolactone-pyrrolidin-4,4&#39;-pyrazolone] skeletons are asymmetrically synthesized through a simple organocatalytic 1,3-dipolar cycloaddition reaction.

Bispirocyclic scaffolds are one of the important structural subunits in many natural products that exhibit diverse and attractive biological activities. ...

Efficient Synthesis of All-Carbon Quaternary Centers via the Conjugate Addition of Functionalized Monoorganozinc Bromides

The conjugate addition of organometallic reagents to &#945;,&#946;-unsaturated carbonyls represents an important method to generate C&#8211;C bonds in the preparation of all-carbon quaternary centers. Though conjugate additions of organometallic reagents are typically performed utilizing highly reactive organolithium or Grignard reagents, organozinc reagents have garnered attention for their enhanced chemoselectivity and mild reactivity. Despite numerous recent advances with more reactive diorganozinc and mixed diorganozinc reagents, the generation of all-carbon quaternary centers via the conjugate addition of functionalized monoorganozinc reagents remains a challenge. This protocol details a convenient and mild &#8220;one-pot&#8221; preparation and copper mediated conjugate addition of functionalized monoorganozinc bromides to cyclic &#945;,&#946;-unsaturated carbonyls to afford a broad scope of all-carbon quaternary centers in generally excellent yield and diastereoselectivity. Key to the development of this technology is the utilization of DMA as a reaction solvent with TMSCl as a Lewis acid. Notable advantages to this methodology include the operational simplicity of the organozinc reagent preparation afforded by the utilization of DMA as a solvent, as well as an efficient conjugate addition mediated by various Cu(I) and Cu(II) salts. Moreover, an intermediate silyl enol ether can be isolated utilizing a modified workup procedure. The substrate scope is limited to cyclic unsaturated ketones, and the conjugate addition is impeded by stabilized (e.g., allyl, enolate, homoenolate) and sterically encumbered (e.g., neopentyl, o-aryl) monoorganozinc reagents. Conjugate additions to five- and seven-membered rings were effective, albeit in lower yields compared with six-membered ring substrates.

A simple and practical protocol for the efficient conjugate addition of functionalized monoorganozinc bromides to cyclic &#945;,&#946;-unsaturated carbonyls to furnish all-carbon quaternary centers was developed.

The conjugate addition of organometallic reagents to &#945;,&#946;-unsaturated carbonyls represents an important method to generate C&#8211;C bonds in the ...

Versatile CO2 Transformations into Complex Products: A One-pot Two-step Strategy

CO2 transformations using a one-pot two-step method are presented herein. The purpose of the method is to give access to a variety of value-added products and notably to generate chiral carbon centers. The crucial first step consists in the selective double hydroboration of CO2 catalyzed by an iron hydride complex. The product obtained with this 4 e- reduction is a rare bis(boryl)acetal, compound 1, which is subjected in situ to three different reactions in a second step. The first reaction concerns a condensation reaction with (diisopropyl)phenylamine affording the corresponding imine 2. In the second and third reaction, intermediate 1 reacts with triazol-5-ylidene (Enders&#39; carbene) to afford compounds 3 or 4, depending on the reaction conditions. In both compounds, C-C bonds are formed, and chiral centers are generated from CO2 as the only source of carbon. Compound 4 exhibits two chiral centers obtained in a diastereoselective manner in a formose-type mechanism. We proved that the remaining boryl fragment plays a key role in this unprecedented stereocontrol. The interest of the method stands on the reactive and versatile nature of 1, giving rise to various complex molecules from a single intermediate. The complexity of a two-step method is compensated by the overall short reaction time (2 h for the larger reaction time), and mild reaction conditions (25 &#176;C to 80 &#176;C and 1 to 3 atm of CO2).

Versatile CO2 Transformations into Complex Products: A One-pot Two-step Strategy

CO2 transformations are conducted in a one-pot two-step procedure for the synthesis of complex molecules. The selective 4 e- reduction of CO2 with a hydroborane reductant affords a reactive and versatile bis(boryl)acetal intermediate which is subsequently involved in condensation reaction or carbene-mediated C-C coupling generation.

CO2 transformations using a one-pot two-step method are presented herein. The purpose of the method is to give access to a variety of value-added products ...

Organocatalysis

Source: Vy M. Dong and Faben Cruz, Department of Chemistry, University of California, Irvine, CA
This experiment will demonstrate the concept of organocatalysis by illustrating the proper setup of a reaction that utilizes enamine catalysis. Organocatalysis is a form of catalysis that uses substoichiometric amounts of small organic molecules to accelerate reactions. This type of catalysis is complementary to other forms of catalysis such as transition metal or biocatalysis. Transition metal catalysis involves transition metals as catalysts and biocatalysis uses enzymes as catalysts. Some advantages of organocatalysis include the low toxicity and cost of the organocatalysts in comparison to many metal catalysts. In addition, most organocatalysts are not sensitive to air and moisture, unlike metal catalysts. In contrast to enzymes found in living organisms, the small molecules that act as organocatalysts are typically easy to access. Furthermore, organocatalysis offers complementary and new reactivity not observed with other forms of catalysis.

Organocatalysis: Principles and Applications

Source: Vy M. Dong and Faben Cruz, Department of Chemistry, University of California, Irvine, CA
This experiment will demonstrate the concept of ...

Education

JoVE Science Education

Organic Chemistry II

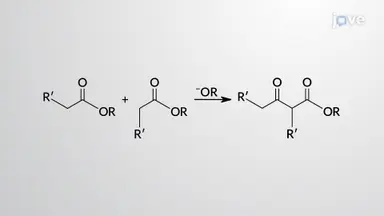

Esters to &beta;-Ketoesters: Claisen Condensation Mechanism
