This study was supported by the Ophthalmic Research Institute of Australia (ORIA). We thank Prof. Algis Vingrys and Dr. Bang Bui, University of Melbourne, for initially helping us to develop the VEP recording technique.

Ethics Statement: All procedures involving animals were conducted in accordance with the Australian Code of Practice for the Care and Use of Animals for Scientific Purposes and the guidelines of the ARVO Statement for the Use of Animals in Ophthalmic and Vision Research, and were approved by the Animal Ethics Committee of Macquarie University.
1. VEP Electrode Implantation
<ol>
	<li>Anesthetize the animal with an intraperitoneal injection of ketamine (75 mg/kg) and medetomidine (0.5 mg/kg).
	Note: Following induction of anaesthesia, observe the withdrawal reflexes (pinch test, corneal and palpebral reflex, etc.) and their absence as an indication to begin surgery. Continually monitor animals throughout the surgery and administer additional anaesthetic drug (10% of initial ketamine dose per top-up) if the reflexes are present. Adult rats (&#62;12 weeks) are used in the experiments.</li>
	<li>Shave the skin of the surgical area. Place the animal on a warming pad (37 &#176;C) to maintain body temperature during the surgery. Prepare skin through topical application of povidone-iodine. Apply surgical draping. Apply topical ophthalmic ointment to prevent corneal dryness under general anaesthesia. Maintain asepsis by using sterile instruments.</li>
	<li>Make a longitudinal skin incision on the midline of the head skin. Clear the connective tissue to achieve good exposure of the skull.</li>
	<li>Carefully, drill small burr holes manually using a micro hand drill at 7 mm behind the bregma and 3 mm lateral to the midline.</li>
	<li>Implant screw electrodes through the skull into the cortex (area 17), penetrating the cortex to a depth of approximately 0.5 mm. Implant a reference screw electrode on the midline 3 mm rostral to the bregma. Apply dental cement to encase and fix the screws (not always required).</li>
	<li>Suture the skin of the head, administer antibiotic ointment onto the skin and allow the animal to recover from anaesthesia on a warming pad.
	Note: Alternatively, electrodes can be left exposed, so that skin doesn&#8217;t need to be reopened in each recording. Immediately upon cessation of surgery but prior to anaesthetic recovery, administer a non-steroidal anti-inflammatory drug (NSAID) (if not administered pre-operatively) or an opioid analgesic. Monitor the animals constantly until full recovery from anaesthetic and fully ambulatory.</li>
	<li>Allow at least 1 week for the animals to recover from the surgery prior to VEP recording.</li>
</ol>
2. Optic Nerve Injection
<ol>
	<li>Anesthetize the animal, prepare the skin and apply draping as above (1.1 and 1.2).</li>
	<li>Make a 1- to 1.5-cm incision in the skin above the orbit of a randomly selected eye. Open the subcutaneous tissue to reach the orbital cavity using fine iris scissors. Open the conjunctiva and anterior Tenon&#39;s capsule under the operating microscope.</li>
	<li>Retract the extraocular muscles and intraobital lacrimal glands to expose approximately 3 mm length of the optic nerve. Open the dura and arachnoid matter layers around the optic nerve longitudinally using an ophthalmic blade.</li>
	<li>Insert the glass pipette into the optic nerve at a distance of 2 mm posterior to the globe. The glass micropipette is attached to a Hamilton syringe.</li>
	<li>Inject 1% lysolecithin (0.4 - 1.0 &#181;l, with 0.02% Evan&#8217;s Blue which doesn&#8217;t have effects on myelination) slowly into the nerve approximately over a period of 30 sec.</li>
	<li>Suture the skin incision. Apply antibiotic ointment to prevent infection. Fellow eyes can be served as internal controls for electrophysiology recordings.</li>
	<li>Place the animals on a warming pad to recover from anaesthesia.</li>
</ol>
3. VEP Recording
<ol>
	<li>Anesthetize the animal and prepare the skin as 1.1 and 1.2.
	Note: Lower dose of anaesthetics can be used for electrophysiological recording (ketamine 40 mg/kg and medetomidine 0.25 mg/kg).</li>
	<li>Place the rat in a dark room and allow it to adapt to darkness for 5 - 30 min. In some cases rats can respectively be dark adapted O/N for scotopic or light adapted for photopic VEP recordings8.</li>
	<li>Maintain the body temperature at 37 &#177; 0.5 &#176;C by the homoeothermic blanket system with a rectal thermometer probe.</li>
	<li>Dilate the pupils with 1.0% tropicamide eye drops. Open the skin over the skull to access the pre-placed in situ screw electrodes.</li>
	<li>Connect the screw over the contralateral visual cortex of the stimulated eye and the reference screw to the amplifier. Insert a needle electrode into the tail as the ground. Measure and maintain the electrode impedance below 5 k&#8486;.</li>
	<li>Place a mini-Ganzfeld stimulator directly on the skin around the eyelids to provide superior eye isolation7. The illumination of the stimulator needs to be calibrated beforehand by a photometer.</li>
	<li>Deliver photic stimulation through light flashes 100 times at a frequency of 1 Hz, with low and high band-pass filter settings of 1 and 100 Hz, respectively. The signal sampling rate is at 5 kHz.
	Note: Signals should be sampled at least at about 250 - 300 Hz to ensure that more that two samples are collected during each cycle.</li>
	<li>Suture the skin back and keep the animals on a warming pad to recover from anaesthesia. Recording can be repeatedly recorded on individual animals to monitor functional changes over a period of time.</li>
	<li>At the end-point, administer an overdose injection of sodium pentobarbitone (100 mg/kg, i.p.) to euthanize the animal. Confirm euthanasia by cardiac arrest, respiratory arrest and decrease of body temperature.</li>
</ol>
4. Tissue Preparation and Histology
<ol>
	<li>Remove the optic nerves from euthanized animals under the microscope and fix the tissue in 1% paraformaldehyde O/N.</li>
	<li>Wash the tissue thoroughly with saline. Treat the tissue in an automatic tissue processor and embed in paraffin. Cut sections (5 - 10 &#181;m) using a rotary microtome.
	Note: For immunohistochemistry study, fix tissue in 1% paraformaldehyde, wash with saline and incubate with 30% sucrose O/N. Embed tissue in OCT embedding medium and make cryosections using a cryostat.</li>
	<li>Incubate sections in 0.1% fast blue solution such as Luxol (in 95% ethanol) O/N at 56 &#176;C. Differentiate the sections in 0.05% lithium carbonate for 30 sec and then 70% ethanol for another 30 sec. Finally, counterstain in 0.1% cresyl violet solution for 30 sec before mounting the sections. Use the fast blue staining to identify myelin in the optic nerve5.</li>
</ol>

<ol>
	<li>Balcer, L. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Clinical+practice.+Optic+neuritis.">Clinical practice. Optic neuritis.</a> N Engl J Med. 354 (12), 1273-1280 (2006).</li><li>Lassmann, H., Waxman, S. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Multiple sclerosis as a neuronal disease. , 153-164 (2005).</li><li>Fahle, M., Bach, M., Heckenlively, J., Arden, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Principles and practice of clinical electrophysiology of vision. , 207-234 (2006).</li><li>Halliday, A. M., McDonald, W. I., Mushin, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Delayed+visual+evoked+response+in+optic+neuritis.">Delayed visual evoked response in optic neuritis.</a> Lancet. 1, 982-985 (1972).</li><li>You, Y., Klistorner, A., Thie, J., Graham, S. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Latency+delay+of+visual+evoked+potential+is+a+real+measurement+of+demyelination+in+a+rat+model+of+optic+neuritis.">Latency delay of visual evoked potential is a real measurement of demyelination in a rat model of optic neuritis.</a> Invest Ophthalmol Vis Sci. 52 (9), 6911-6918 (2011).</li><li>You, Y., Klistorner, A., Thie, J., Gupta, V. K., Graham, S. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Axonal+loss+in+a+rat+model+of+optic+neuritis+is+closely+correlated+with+visual+evoked+potential+amplitudes+using+electroencephalogram+based+scaling.">Axonal loss in a rat model of optic neuritis is closely correlated with visual evoked potential amplitudes using electroencephalogram based scaling.</a> Invest Ophthalmol Vis Sci. 53, 3662 (2012).</li><li>You, Y., Klistorner, A., Thie, J., Graham, S. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Improving+reproducibility+of+VEP+recording+in+rats:+electrodes,+stimulus+source+and+peak+analysis.">Improving reproducibility of VEP recording in rats: electrodes, stimulus source and peak analysis.</a> Doc Ophthalmol. 123 (2), 109-119 (2011).</li><li>Heiduschka, P., Schraermeyer, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Comparison+of+visual+function+in+pigmented+and+albino+rats+by+electroretinography+and+visual+evoked+potentials.">Comparison of visual function in pigmented and albino rats by electroretinography and visual evoked potentials.</a> Graefes Arch Clin Exp Ophthalmol. 246 (11), 1559-1573 (2008).</li><li>You, Y., Thie, J., Klistorner, A., Gupta, V. K., Graham, S. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Normalization+of+visual+evoked+potentials+using+underlying+electroencephalogram+levels+improves+amplitude+reproducibility+in+rats.">Normalization of visual evoked potentials using underlying electroencephalogram levels improves amplitude reproducibility in rats.</a> Invest Ophthalmol Vis Sci. 53 (3), 1473-1478 (2012).</li><li>Levkovitch-Verbin, H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Animal+models+of+optic+nerve+diseases.">Animal models of optic nerve diseases.</a> Eye (Lond). 18 (11), 1066-1074 (2004).</li><li>Henry, K. R., Rhoades, R. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Relation+of+albinism+and+drugs+to+the+visual+evoked+potential+of+the+mouse).">Relation of albinism and drugs to the visual evoked potential of the mouse).</a> J Comp Physiol Psychol. 92 (2), 271-279 (1978).</li><li>Murrell, J. C., Waters, D., Johnson, C. B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Comparative+effects+of+halothane,+isoflurane,+sevoflurane+and+desflurane+on+the+electroencephalogram+of+the+rat.">Comparative effects of halothane, isoflurane, sevoflurane and desflurane on the electroencephalogram of the rat.</a> Lab Anim. 42 (2), 161-170 (2008).</li><li>Makela, K., Hartikainen, K., Rorarius, M., Jantti, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Suppression+of+F-VEP+during+isoflurane-induced+EEG+suppression.">Suppression of F-VEP during isoflurane-induced EEG suppression.</a> Electroencephalogr Clin Neurophysiol. 100 (3), 269-272 (1996).</li><li>Boyes, W. K., Padilla, S., Dyer, R. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Body+temperature-dependent+and+independent+actions+of+chlordimeform+on+visual+evoked+potentials+and+axonal+transport+in+optic+system+of+rat.">Body temperature-dependent and independent actions of chlordimeform on visual evoked potentials and axonal transport in optic system of rat.</a> Neuropharmacology. 24 (8), 743-749 (1985).</li><li>Hetzler, B. E., Boyes, W. K., Creason, J. P., Dyer, R. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Temperature-dependent+changes+in+visual+evoked+potentials+of+rats.">Temperature-dependent changes in visual evoked potentials of rats.</a> Electroencephalogr Clin Neurophysiol. 70 (2), 137-154 (1988).</li><li>Mitchell, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+effects+of+lysolecithin+on+non-myelinated+axons+in+vitro.">The effects of lysolecithin on non-myelinated axons in vitro.</a> Acta Neuropathol. 58 (4), 243-248 (1982).</li><li>Meyer, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Acute+neuronal+apoptosis+in+a+rat+model+of+multiple+sclerosis.">Acute neuronal apoptosis in a rat model of multiple sclerosis.</a> J Neurosci. 21 (16), 6214-6220 (2001).</li><li>Lachapelle, F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Failure+of+remyelination+in+the+nonhuman+primate+optic+nerve.">Failure of remyelination in the nonhuman primate optic nerve.</a> Brain Pathol. 15 (3), 198-207 (2005).</li></ol>

None of the authors have competing interests or conflicting interests.

The optic nerve is very susceptible to mechanical damage. Optic nerve crush injury over a duration of 1 s can lead to about 75% loss of RGC over a period of 2 weeks10. Therefore, extreme care is required while performing the surgical procedures. According to the authors&#8217; experience, it is much better to adapt a blunt dissection approach to expose and make way through the tissues around the optic nerve along the orientation of the nerve, rather than penetrating in a perpendicular orientation to the optic ...

Optic neuritis is one of the most common form of optic neuropathy, causing complete or partial loss of vision1. Histologically, it is featured by inflammatory demyelination, retinal ganglion cell axonal loss and varying degrees of remyelination in the optic nerve2. Optic neuritis is usually the manifest onset of multiple sclerosis. The visual evoked potential (VEP) is a non-invasive tool for investigating the function of the visual system. It reflects the post-retinal function from the retina to the primary visual cortex and is affected in many optic nerve disease conditions3. The VEP has been predominantly used in optic neuritis patients to assess the integrity of the visual pathway4.
The latency of VEP, which reflects the velocity of signal conduction along the visual pathway, is considered to be an accurate measurement of the level of myelin associated changes in the optic nerve5; while the amplitude of VEP is believed to be closely correlated with axonal damage of the retinal ganglion cells (RGC)6. This hypothesis has been fairly well established using the rat model of lysolecithin-induced optic nerve demyelination5.
Here, we explicate a comprehensive protocol of optic nerve microinjection technique in rodents, which can minimise the surgical manipulation-related damage to the nerve per se as well as to the adjacent tissues such as extraocular muscles and blood vessels. Also, the skull electrode implantation surgery has been described for VEP recording in animals7. The VEP recordings can be repeatedly carried out on animals over a period of time to assess demyelination/remyelination related changes as well as impact on axonal integrity in the optic nerve.

<table border="0" cellpadding="0" cellspacing="0">
	<tbody>
		<tr>
			<td>Ketamine 100 mg/ml (Ketamil)</td>
			<td>Troy Laboratories</td>
			<td>AC 116</td>
			<td></td>
		</tr>
		<tr>
			<td>Medetomidine 1 mg/ml (Domitor)</td>
			<td>Pfizer</td>
			<td>sc-204073</td>
			<td></td>
		</tr>
		<tr>
			<td>Tropicamide 1.0% (Mydriacyl)</td>
			<td>Alcon</td>
			<td>sc-202371</td>
			<td></td>
		</tr>
		<tr>
			<td>Homoeothermic blanket system</td>
			<td>Harvard Apparatus</td>
			<td>NC9203819</td>
			<td></td>
		</tr>
		<tr>
			<td>Impedance meter&#160;</td>
			<td>Grass</td>
			<td>F-EZM5</td>
			<td></td>
		</tr>
		<tr>
			<td>Screw electrodes&#160;</td>
			<td>Micro Fasteners</td>
			<td>M1.0&#215;3mm Csk Slot M/T 304 S/S</td>
			<td></td>
		</tr>
		<tr>
			<td>Subdermal needle electrodes&#160;</td>
			<td>Grass</td>
			<td>F-E3M-72</td>
			<td></td>
		</tr>
		<tr>
			<td>Rapid Repair&#160;</td>
			<td>DeguDent GmbH</td>
			<td></td>
			<td></td>
		</tr>
		<tr>
			<td>Light-emitting diode&#160;</td>
			<td>Nichia</td>
			<td>NSPG300A</td>
			<td></td>
		</tr>
		<tr>
			<td>Bioamplifier</td>
			<td>CWE, Inc.</td>
			<td>BMA-400</td>
			<td></td>
		</tr>
		<tr>
			<td>CED system</td>
			<td>Cambridge Electronic Design, Ltd.</td>
			<td>Power1401</td>
			<td></td>
		</tr>
		<tr>
			<td>Hamilton syringe&#160;</td>
			<td>Hamilton</td>
			<td>87930</td>
			<td></td>
		</tr>
		<tr>
			<td>Lysolecithin</td>
			<td>Sigma</td>
			<td>L4129</td>
			<td></td>
		</tr>
		<tr>
			<td>Evan&#8217;s blue&#160;</td>
			<td>Sigma</td>
			<td>E2129</td>
			<td></td>
		</tr>
	</tbody>
</table>

visual evoked potential recording in a rat model of experimental optic nerve demyelination

The visual evoked potential (VEP) recording is widely used in clinical practice to assess the severity of optic neuritis in its acute phase, and to monitor the disease course in the follow-up period. Changes in the VEP parameters closely correlate with pathological damage in the optic nerve. This protocol provides a detailed description about the rodent model of optic nerve microinjection, in which a partial demyelination lesion is produced in the optic nerve. VEP recording techniques are also discussed. Using skull implanted electrodes, we are able to acquire reproducible intra-session and between-session VEP traces. VEPs can be recorded on individual animals over a period of time to assess the functional changes in the optic nerve longitudinally. The optic nerve demyelination model, in conjunction with the VEP recording protocol, provides a tool to investigate the disease processes associated with demyelination and remyelination, and can potentially be employed to evaluate the effects of new remyelinating drugs or neuroprotective therapies.

Reproducible intra-sessional VEP traces are shown in Figure 1 and a significant delay in N1 latency can be seen after the optic nerve injection. Partial optic nerve lesions of demyelination can be observed on histological sections using Luxol fast blue staining5. Figure 2 shows a representative section with a small focal demyelinated lesion in the centre of the optic nerve. Note that cross section does not represent total volume of lesion. The demyelinated area can be measured...

Watch this Scientific Journal Video about Visual Evoked Potential Recording in a Rat Model of Experimental Optic Nerve Demyelination at JoVE.com

Visual Evoked Potential Recording in a Rat Model of Experimental Optic Nerve Demyelination

Focal demyelination is induced in the optic nerve using lysolecithin microinjection. Visual evoked potentials are recorded via skull electrodes implanted over the visual cortex to examine the signal conduction along the visual pathway in vivo. This protocol details the surgical procedures underlying electrode implantation and optic nerve microinjection.

The visual evoked potential (VEP) recording is widely used in clinical practice to assess the severity of optic neuritis in its acute phase, and to ...

visual-evoked-potential-recording-rat-model-experimental-optic-nerve

Universidad de Cartagena UDEC

Research

JoVE Journal

Neuroscience

12.1K Views.  Macquarie University. Focal demyelination is induced in the optic nerve using lysolecithin microinjection. Visual evoked potentials are recorded via skull electrodes implanted over the visual cortex to examine the signal conduction along the visual pathway in vivo. This protocol details the surgical procedures underlying electrode implantation and optic nerve microinjection.

Video: Visual Evoked Potential Recording in a Rat Model of Experimental Optic Nerve Demyelination

Optic Nerve Transection: A Model of Adult Neuron Apoptosis in the Central Nervous System

Retinal ganglion cells (RGCs) are CNS neurons that output visual information from the retina to the brain, via the optic nerve.
The optic nerve can be accessed within the orbit of the eye and completely transected (axotomized), cutting the axons of the entire RGC population. Optic nerve
transection is a reproducible model of apoptotic neuronal cell death in the adult CNS 1-4. This model is particularly attractive because the vitreous
 chamber of the eye acts as a capsule for drug delivery to the retina, permitting experimental manipulations via intraocular injections. The diffusion of chemicals
through the vitreous fluid ensures that they act upon the entire RGC population. Moreover, RGCs can be selectively transfected by applying short interfering RNAs
(siRNAs), plasmids, or viral vectors to the cut end of the optic nerve 5-7 or injecting vectors into their target, the superior colliculus 8.
This allows researchers to study apoptotic mechanisms in the desired neuronal population without confounding effects on other bystander neurons or surrounding glia.
An additional benefit is the ease and accuracy with which cell survival can be quantified after injury. The retina is a flat, layered tissue and RGCs are localized in
the innermost layer, the ganglion cell layer. The survival of RGCs can be tracked over time by applying a fluorescent tracer (3% Fluorogold) to the cut end of the
optic nerve at the time of axotomy, or by injecting the tracer into the superior colliculus (RGC target) one week prior to axotomy. The tracer is retrogradely transported, labeling
the entire RGC population. Because the ganglion cell layer is a monolayer (one cell thick), RGC densities can be quantified in flat-mounted tissue, without the need
for stereology. Optic nerve transection leads to the apoptotic death of 90% of injured RGCs within 14 days postaxotomy 9-11. RGC apoptosis has a
characteristic time-course whereby cell death is delayed 3-4 days postaxotomy, after which the cells rapidly degenerate. This provides a time window for
experimental manipulations directed against pathways involved in apoptosis.

Optic Nerve transection is a widely used model of adult CNS injury. Ninety percent of retinal ganglion cells (RGCs) whose axons are completely transected (axotomy) die within 14 days after axotomy. This model is easily amenable to experimental manipulations and highly reproducible.

Retinal ganglion cells (RGCs) are CNS neurons that output visual information from the retina to the brain, via the optic nerve.
The optic nerve can be ...

Methods for Experimental Manipulations after Optic Nerve Transection in the Mammalian CNS

Retinal ganglion cells (RGCs) are CNS neurons that output visual information from the retina to the brain, via the optic nerve. The optic nerve can be accessed within the orbit of the eye and completely transected (axotomized), cutting the axons of the entire RGC population. Optic nerve transection is a reproducible model of apoptotic neuronal cell death in the adult CNS 1-4. This model is particularly attractive because the vitreous chamber of the eye acts as a capsule for drug delivery to the retina, permitting experimental manipulations via intraocular injections. The diffusion of chemicals through the vitreous fluid ensures that they act upon the entire RGC population. Viral vectors, plasmids or short interfering RNAs (siRNAs) can also be delivered to the vitreous chamber in order to infect or transfect retinal cells 5-12. The high tropism of Adeno-Associated Virus (AAV) vectors is beneficial to target RGCs, with an infection rate approaching 90% of cells near the injection site 6, 7, 13-15. Moreover, RGCs can be selectively transfected by applying siRNAs, plasmids, or viral vectors to the cut end of the optic nerve 16-19 or injecting vectors into their target the superior colliculus 10. This allows researchers to study apoptotic mechanisms in the injured neuronal population without confounding effects on other bystander neurons or surrounding glia. RGC apoptosis has a characteristic time-course whereby cell death is delayed 3-4 days postaxotomy, after which the cells rapidly degenerate. This provides a window for experimental manipulations directed against pathways involved in apoptosis. Manipulations that directly target RGCs from the transected optic nerve stump are performed at the time of axotomy, immediately after cutting the nerve. In contrast, when substances are delivered via an intraocular route, they can be injected prior to surgery or within the first 3 days after surgery, preceding the initiation of apoptosis in axotomized RGCs. In the present article, we demonstrate several methods for experimental manipulations after optic nerve transection.

Optic Nerve transection is a widely used model of adult CNS injury. This model is ideal for performing a number of experimental manipulations that target the retina globally or directly target the injured neuronal population of retinal ganglion cells.

Retinal ganglion cells (RGCs) are CNS neurons that output visual information from the retina to the brain, via the optic nerve. The optic nerve can be ...

Determination of Mitochondrial Membrane Potential and Reactive Oxygen Species in Live Rat Cortical Neurons

Mitochondrial membrane potential (&Delta;&Psi;m) is critical for maintaining the physiological function of the respiratory chain to generate ATP. A significant loss of &Delta;&Psi;m renders cells depleted of energy with subsequent death. Reactive oxygen species (ROS) are important signaling molecules, but their accumulation in pathological conditions leads to oxidative stress. The two major sources of ROS in cells are environmental toxins and the process of oxidative phosphorylation. Mitochondrial dysfunction and oxidative stress have been implicated in the pathophysiology of many diseases; therefore, the ability to determine &Delta;&Psi;m and ROS can provide important clues about the physiological status of the cell and the function of the mitochondria.
Several fluorescent probes (Rhodamine 123, TMRM, TMRE, JC-1) can be used to determine &Delta;&psi;m in a variety of cell types, and many fluorescence indicators (Dihydroethidium, Dihydrorhodamine 123, H2DCF-DA) can be used to determine ROS. Nearly all of the available fluorescence probes used to assess &Delta;&Psi;m or ROS are single-wavelength indicators, which increase or decrease their fluorescence intensity proportional to a stimulus that increases or decreases the levels of &Delta;&Psi;m or ROS. Thus, it is imperative to measure the fluorescence intensity of these probes at the baseline level and after the application of a specific stimulus. This allows one to determine the percentage of change in fluorescence intensity between the baseline level and a stimulus. This change in fluorescence intensity reflects the change in relative levels of &Delta;&Psi;m or ROS. In this video, we demonstrate how to apply the fluorescence indicator, TMRM, in rat cortical neurons to determine the percentage change in TMRM fluorescence intensity between the baseline level and after applying FCCP, a mitochondrial uncoupler. The lower levels of TMRM fluorescence resulting from FCCP treatment reflect the depolarization of mitochondrial membrane potential. We also show how to apply the fluorescence probe H2DCF-DA to assess the level of ROS in cortical neurons, first at baseline and then after application of H2O2. This protocol (with minor modifications) can be also used to determine changes in &#x2206;&#x03A8;m and ROS in different cell types and in neurons isolated from other brain regions.

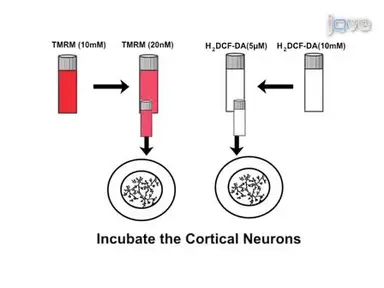

We demonstrate application of the fluorescence indicator, TMRM, in cortical neurons to determine the relative changes in TMRM fluorescence intensity before and after application of a specific stimulus. We also show application of the fluorescence probe H2DCF-DA to assess the relative level of reactive oxygen species in cortical neurons.
