All procedures involving animal samples have been reviewed and approved by the appropriate animal ethical review committee.
<ol>
	<li>Optogenetic control in the isolated hippocampus
	NOTE: For optogenetic control of hippocampal network activity, a cell-type specific strategy involving rhythmic activation of PV (parvalbumin-positive)-containing GABAergic cells is used here as these cells were shown to play a major role in synchronizing principal cell populations in the isolated hippocampus. Selective expression of the excitatory channelrhodopsin-2 (ChR2) in PV cells is achieved by crossing the PV-Cre mouse line with mice constitutively expressing ChR2 Cre-dependently (Ai32), thereby generating PV-ChY mice. Alternatively, viral vector constructs (e.g., AAVdj-ChETA-eYFP) can be injected into the hippocampus of PV-Cre or PV-TOM mice (P15-16) to drive the expression of the excitatory opsin in CA1/SUB interneurons (Figure 1A).
	<ol>
		<li>Place an LFP electrode in the CA1/SUB (Cornu ammonis-1/subiculum) area and patch a nearby pyramidal cell in the isolated hippocampus of a mouse expressing the blue-light sensitive excitatory opsin ChR2 in PV interneurons.</li>
		<li>Place an optic fiber light guide (0.2 - 1 mm diameter) above the hippocampal preparation and center it on the recorded region. Use blue light (473 nm) from an LED source for optogenetic stimulation, consisting of light pulses (10 - 20 ms, triggered by a transistor-transistor logic signal) or sine wave voltage commands delivered at theta frequencies (4 - 12 Hz).</li>
		<li>Switch to the current clamp and characterize the activity of the pyramidal during spontaneous theta oscillations.</li>
		<li>Start the stimulation protocol and record the light responses. Observe that field oscillations and synaptic activity in the recorded neuron become increasingly synchronized during optogenetic stimulation and that rhythmic pacing of PV cells results in robust control of both frequency and power of theta oscillations (Figure 1).</li>
	</ol>
	</li>
</ol>

<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Reagents</td>
			<td></td>
			<td></td>
			<td></td>
		</tr>
		<tr>
			<td>Sodium Chloride</td>
			<td>Sigma Aldrich</td>
			<td>S9625</td>
			<td></td>
		</tr>
		<tr>
			<td>Sucrose</td>
			<td>Sigma Aldrich</td>
			<td>S9378</td>
			<td></td>
		</tr>
		<tr>
			<td>Sodium Bicarbonate</td>
			<td>Sigma Aldrich</td>
			<td>S5761</td>
			<td></td>
		</tr>
		<tr>
			<td>NaH2PO4 - sodium phosphate monobasic</td>
			<td>Sigma Aldrich</td>
			<td>S8282</td>
			<td></td>
		</tr>
		<tr>
			<td>Magnesium sulfate</td>
			<td>Sigma Aldrich</td>
			<td>M7506</td>
			<td></td>
		</tr>
		<tr>
			<td>Potassium Chloride</td>
			<td>Sigma Aldrich</td>
			<td>P3911</td>
			<td></td>
		</tr>
		<tr>
			<td>D-(+)-Glucose</td>
			<td>Sigma Aldrich</td>
			<td>G7528</td>
			<td></td>
		</tr>
		<tr>
			<td>Calcium chloride dihydrate</td>
			<td>Sigma Aldrich</td>
			<td>C5080</td>
			<td></td>
		</tr>
		<tr>
			<td>Sodium Ascorbate</td>
			<td>Sigma Aldrich</td>
			<td>A7631-25G</td>
			<td></td>
		</tr>
		<tr>
			<td>Equipment</td>
			<td></td>
			<td></td>
			<td></td>
		</tr>
		<tr>
			<td>95% O2/5% CO2 gas mixture (carbogen)</td>
			<td>Vitalaire</td>
			<td>SG466204A</td>
			<td>perfusion system</td>
		</tr>
		<tr>
			<td>Glass bottles/flasks (4 x 1 L)</td>
			<td>n.a.</td>
			<td>n.a.</td>
			<td>perfusion system</td>
		</tr>
		<tr>
			<td>Submerged recording Chamber</td>
			<td>custom design (FM)</td>
			<td>n.a.</td>
			<td>Commercial alternative may be used</td>
		</tr>
		<tr>
			<td>Multiclamp 700B patch-clamp amplifier</td>
			<td>Molecular devices</td>
			<td>MULTICLAMP</td>
			<td>electrophysiology</td>
		</tr>
		<tr>
			<td>Multiclamp 700B Commander Program</td>
			<td>Molecular devices</td>
			<td>MULTICLAMP</td>
			<td>electrophysiology</td>
		</tr>
		<tr>
			<td>Digital/Analogue converter</td>
			<td>Molecular devices</td>
			<td>DDI440</td>
			<td>electrophysiology</td>
		</tr>
		<tr>
			<td>Micromanipulators (manually operated )</td>
			<td>Siskiyou</td>
			<td>MX130</td>
			<td>electrophysiology (LFP)</td>
		</tr>
		<tr>
			<td>Micromanipulators (automated)</td>
			<td>Siskiyou</td>
			<td>MC1000e</td>
			<td>electrophysiology (patch)</td>
		</tr>
		<tr>
			<td>Audio monitor</td>
			<td>A-M Systems</td>
			<td>Model 3300</td>
			<td>electrophysiology</td>
		</tr>
		<tr>
			<td>Custom-built upright fluorescence microscope</td>
			<td>Siskiyou</td>
			<td>n.a.</td>
			<td>Imaging</td>
		</tr>
		<tr>
			<td>Analogue video camera</td>
			<td>COHU</td>
			<td>4912-2000/0000</td>
			<td>Imaging</td>
		</tr>
		<tr>
			<td>Digital frame grabber with imaging software</td>
			<td>EPIX, Inc</td>
			<td>PIXCI-SV7</td>
			<td>Imaging</td>
		</tr>
		<tr>
			<td>Olympus 2.5x objective</td>
			<td>Olympus</td>
			<td>MPLFLN</td>
			<td>Imaging</td>
		</tr>
		<tr>
			<td>Olympus 40x water immersion objective</td>
			<td>Olympus</td>
			<td>UIS2 LUMPLFLN</td>
			<td>Imaging</td>
		</tr>
		<tr>
			<td>Custom-made light-emitting diode (LED) system</td>
			<td>custom</td>
			<td>n.a.</td>
			<td>optogenetic stimulation (Amhilon et al., 2015)</td>
		</tr>
		<tr>
			<td>Animals</td>
			<td></td>
			<td></td>
			<td></td>
		</tr>
		<tr>
			<td>PV::Cre (KI) mice</td>
			<td>Jackson Laboratory</td>
			<td>stock number 008069</td>
			<td>Allow Cre-directed gene expression in PV interneurons</td>
		</tr>
		<tr>
			<td>Constitutive-conditional Ai9 mice (R26-lox-stop-lox-tdTomato (KI))</td>
			<td>Jackson Laboratory</td>
			<td>stock number 007905</td>
			<td>Express TdTomato following Cre-mediated recombination</td>
		</tr>
		<tr>
			<td>Ai32 mice (R26-lox-stop-lox-ChR2(H134R)-EYFP</td>
			<td>Jackson Laboratory</td>
			<td>stock number 012569</td>
			<td>Express the improved channelrhodopsin-2/EYFP fusion protein following exposure to Cre recombinase</td>
		</tr>
		<tr>
			<td>PVChY mice</td>
			<td>In house breeding</td>
			<td>n.a.</td>
			<td>Offspring obtained from cross-breeding the PV-Cre line with Ai32 mice (R26-lox-stop-lox-ChR2(H134R)-EYFP</td>
		</tr>
	</tbody>
</table>

optogenetic control of hippocampal network dynamics

Source: Manseau, F., et al. <a href="https://appjove.unicartagenaproxy.elogim.com/v/55851">Tuning in the Hippocampal Theta Band In Vitro: Methodologies for Recording from the Isolated Rodent Septohippocampal Circuit.</a> J. Vis. Exp. (2017)
This video demonstrates the method to use optogenetics to modulate hippocampal network dynamics by activating genetically modified light-sensitive interneurons in a mouse brain slice, enhancing theta oscillation synchronization and studying neural circuit behavior.

<img alt="Figure 1" src="/files/ftp_upload/22951/22951_Figure1.jpg" />
Figure 1: Local Field Potential and Simultaneous Patch Clamp Recordings from Single CA1/SUB Pyramidal and PV Neurons during Spontaneous and Optogenetically-driven Theta Oscillations in the Isolated Hippocampus.
(a) Diagram showing the LFP and patch electrode recording sites with the placement of the light-fiber guide above the CA1/SUB region expressing...

Optogenetic Control of Hippocampal Network Dynamics

All procedures involving animal samples have been reviewed and approved by the appropriate animal ethical review committee.

	Optogenetic control in the ...

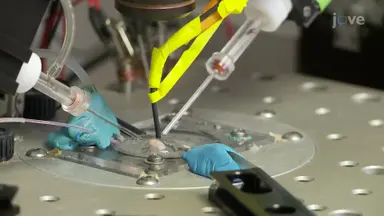

Begin with a mouse hippocampal slice containing the target pyramidal cells connected to genetically modified light-sensitive interneurons.
Place the slice in a recording chamber.
Position a local field potential or LFP electrode in the desired region to record theta oscillations, a type of rhythmic brain activity.
Using a microelectrode, patch a nearby pyramidal cell to record its activity.
Place an optic fiber light above the hippocampal slice centered on the recording region.
Deliver blue light pulses at a set frequency to the slice to activate the light-sensitive ion channels in the interneuron.
The activation causes an influx of positive ions, leading to depolarization.
This triggers the release of inhibitory neurotransmitters onto the pyramidal neuron, thereby reducing excitability.
The light stimulation enhances the synchronization of the theta oscillations and the synaptic activity of the recorded neuron, suggesting effective modulation of the neural rhythms.
