This work was supported by grants from the National Natural Science Foundation of China (32170950, 32371065), the Natural Science Foundation of Guangdong Province, Nos. 2023A1515010899 and 2021A1515010804.

All experiments were approved by the Life Science Animal Care and Use Committee of South China Normal University, and appropriate standards of animal welfare were maintained (ethical approval: SCNU-SLS-2023-048). Male or female 3-5-month-old C57BL/6J mice were used for this study. The details of the reagents and equipment used are listed in the Table of Materials.
1. Preparation of solutions
<ol>
	<li>Prepare 50 mL of intracellular solution containing 160 mM of KF, 10 mM of HEPES, 10 mM of&#160;EGTA, and 2 mM of MgCl2. Adjust the pH to 7.2 with 1 M of KOH solution, and adjust the osmotic pressure to 300 mOsm with D-sucrose13,16. Store at -20 &#176;C.</li>
	<li>Prepare 50 mL of magnetic-activated cell sorting (MACS) buffer containing 0.5% bovine serum albumin (BSA) and 2 mM of ethylenediaminetetraacetic acid (EDTA) in PBS.</li>
	<li>Prepare poly-L-lysine (PLL) at a 1:1000 dilution in water.
	NOTE: Coverslips should be coated with PLL the day before the experiment. Incubate the coated slips at 37 &#176;C overnight. Recycle PLL on the second day and dry the coated slips at 37 &#176;C.</li>
</ol>
2. Preparation of single-cell suspension from brain tissue
<ol>
	<li>Anesthetize the mice with 2.5% chloral hydrate (0.15 mL/10 g,&#160;i.p.) (following institutionally approved protocols). The disappearance of corneal reflex and pain reflex by pinching the toes or pinching the skin in mice confirm deep anesthesia. Place the animals supine on a dissecting table and pin their limbs.
	<ol>
		<li>Expose the chest and perfuse the heart17 with ice-cold sterile PBS to remove intravascular circulating blood cells. Hold the head and cut the skin along the brain midline with scissors to expose the skull.</li>
		<li>Cut the posterior of the skull bilaterally and between the eye sockets with small scissors. Cut the skull along the sagittal suture and remove the skull with tweezers. Extract the brain tissue quickly with tweezers17.</li>
	</ol>
	</li>
	<li>Place the brain tissue in 10 cm culture dishes containing ice-cold PBS. Dissect the cerebral cortex bilaterally with tweezers, isolate the hippocampal tissue, and cut it into smaller pieces. Transfer the pieces into a 15 mL centrifuge tube.
	NOTE: Bilateral dissection of the cerebral cortex reveals the crescent of hippocampal tissue in both hemispheres of the brain.</li>
	<li>Resuspend the small pieces of hippocampal tissue in 2 mL of ice-cold Hank&#39;s balanced salt solution (HBSS) and centrifuge at 300 &#215; g for 3 min (at room temperature), then discard the HBSS.</li>
	<li>Add 1950 &#181;L of enzyme mixture 1 to the 15 mL centrifuge tube containing the hippocampal tissue pieces. Shake the centrifuge tube continuously in a 37 &#176;C water bath for 5 min.
	NOTE: Enzyme mixture 1 is a combination of 50 &#181;L of enzyme P and 1900 &#181;L buffer Y, preheated to 37 &#176;C (present as a part of the commercially available kit, see Table of Materials).</li>
	<li>Remove the centrifuge tube from the water bath. Add 30 &#181;L of freshly prepared enzyme mixture 2 to the 15 mL centrifuge tube. Pipette the tissue fragments up and down 20 times with a 1 mL pipette tip, and incubate in a water bath for 5 min with continuous shaking at 37&#176;C.
	NOTE: Enzyme mixture 2 is a combination of 20 &#181;L of buffer Y and 10 &#181;L of enzyme A. The above two digestion steps convert the brain tissue to a cellular suspension. The total digestion time should not exceed 15 min.</li>
	<li>Remove the centrifuge tube and pipette the suspension up and down multiple times with a 1 mL pipette until no large tissue pieces remain.</li>
	<li>Filter the cell suspension through a 70 &#181;m cell screening filter and collect the filtrate in a clean 50 mL centrifuge tube.
	NOTE: This step removes any large pieces of undigested tissue.</li>
	<li>Transfer the filtrate to a new 15 mL centrifuge tube and centrifuge at 4 &#176;C, 300 &#215; g for 10 min. Discard the supernatant with a 1 mL pipette.</li>
	<li>Wash the cell suspension by pipetting up and down 20 times with 15 mL HBSS, and centrifuge at 4 &#176;C, 300 &#215; g for 10 min. Discard the supernatant and
	resuspend the cell pellet in 1 mL of MACS&#160;buffer.
	NOTE: This step provides the single-cell suspension used in subsequent experiments.</li>
</ol>
3. Acute separation of microglia
<ol>
	<li>Transfer 1 mL of the single-cell suspension into a 2 mL microcentrifuge tube and centrifuge at 4 &#176;C, 300 &#215; g for 3 min. Discard the supernatant.</li>
	<li>Resuspend the single-cell pellet in 90 &#181;L of MACS buffer. Add 10 &#181;L of CD11b/c microbeads and incubate the suspension at 4 &#176;C for 15 min on a horizontal shaker.</li>
	<li>Place the sorting column in the magnetic field of a suitable MACS separator and moisten the column twice with 500 &#181;L of MACS buffer.</li>
	<li>Wash the single-cell suspension by adding 1 mL of MACS buffer directly to the tube and centrifuge at 4 &#176;C, 300 &#215; g for 3 min. Aspirate the supernatant completely.</li>
	<li>Resuspend the cell pellet in 500 &#181;L of MACS buffer.</li>
	<li>Transfer the resuspended cell suspension to the sorting column in the magnetic field using a 1 mL pipette. Discard the flow-through. Wash the column three times with 500 &#181;L of MACS buffer while it remains in the magnetic field.
	NOTE: The flow-through contains unlabeled cells. The column should be washed without removing it from the magnetic field.</li>
	<li>Remove the sorting column from the magnetic field. Add 1 mL MACS buffer to the column and slowly push it through with the piston. Collect the flow-through.
	NOTE: The flow-through contains the labeled cells (i.e., the microglia). To improve the purity of the microglia, the process can be repeated with a new sorting column (optional).</li>
	<li>Seed the selected cells into a 24-well plate containing a coverslip coated with PLL. Add 200 &#181;L of culture medium and incubate for 20 min in a 37 &#176;C incubator with 95% O2, 5% CO2, and 60%-80% humidity. This step allows the microglia to attach to the coverslip for subsequent whole-cell patch-clamp and immunofluorescence experiments.</li>
</ol>
4. Immunofluorescence
<ol>
	<li>Aspirate the culture medium from the plate wells and rinse the cells three times with 0.1 M PBS on the shaker.</li>
	<li>Discard the PBS and fix the microglia on the coverslip with 4% paraformaldehyde (PFA) for 20 min at room temperature (RT).</li>
	<li>Remove the fixative and rinse the cover slip three times with 0.1 M PBS.</li>
	<li>Discard the PBS and permeabilize the cells with 200 &#181;L of blocking buffer containing 0.2% Triton X-100 and 5% BSA in PBS for 1 h at RT on the shaker.</li>
	<li>Incubate the microglia with blocking buffer plus anti-Iba1 and anti-CD11b primary antibodies18 overnight at 4 &#176;C.</li>
	<li>The next day, remove the primary antibodies and rinse the cover slip three times with PBS at RT on the shaker.</li>
	<li>Incubate the microglia with the blocking buffer containing fluorophore-coupled secondary antibodies for 2 h at RT. Add DAPI dye for the last 15 min of incubation.</li>
	<li>Remove the secondary antibodies and rinse the cover slip three times with PBS. Mount the cover slips on microscope slides for imaging.</li>
</ol>

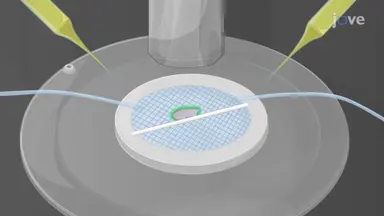

5. Whole-cell patch-clamp recording of potassium currents in microglia
<ol>
	<li>Thaw the intracellular solution and keep it on ice.</li>
	<li>Pull patch pipettes (electrodes) from thin-walled borosilicate glass capillaries using a vertical puller17.
	NOTE: The electrode resistance should be less than 10 M&#937;.</li>
	<li>Transfer a coverslip into the recording chamber and add the extracellular solution containing 160 mM of NaCl, 4.5 mM of KCl, 2 mM of CaCl2, 1 mM of MgCl2, and 10 mM of HEPES. Adjust the pH to 7.2 with 1 M NaOH solution before use13,16, and adjust the osmotic pressure to 300 mOsm with D-sucrose.</li>
	<li>Locate the spherical microglia under a water microscope using the 40x objective.</li>
	<li>Fill the electrode with intracellular solution, attach it to the amplifier head-stage of the electrophysiology setup, and apply positive pressure. Switch to the 4x objective and locate the electrode.
	<ol>
		<li>Lower the electrode into the bath solution and set the amplifier to voltage-clamp mode to perform the membrane test in bath mode. Switch back to the 40x objective and move the electrode tip closer to the microglia.
		NOTE: When the electrode tip is very close to a microglial cell, the resistance should increase slightly.</li>
		<li>Apply a tiny negative pressure to hold the cell. When the resistance reaches 100 M&#937;, switch from bath to patch mode in the membrane test. When the resistance reaches 300 M&#937;, release the negative pressure.</li>
		<li>When the resistance indicates the formation of a gigaohm seal (i.e., &#62;1 G&#937;) between the electrode and the microglial membrane, switch from patch to cell mode in the membrane test.</li>
	</ol>
	</li>
	<li>Apply a small amount of suction and initiate an electric shock to rupture the membrane. The appearance of large capacitive transients indicates successful membrane rupture.</li>
	<li>Switch to voltage-clamp mode and open the recording program. Record potassium currents for 200 ms. To test potentials, apply voltage steps in 20 mV increments from -120 mV to +40 mV at 1 Hz.</li>
	<li>Analyze the obtained data offline using appropriate software.</li>
</ol>

Electrophysiological Recording of Hippocampal Microglia from Adult Mice

<ol>
	<li>Ginhoux, F., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Fate+mapping+analysis+reveals+that+adult+microglia+derive+from+primitive+macrophages.">Fate mapping analysis reveals that adult microglia derive from primitive macrophages.</a> Science. 330 (6005), 841-845 (2010).</li><li>Tremblay, M. E., Lowery, R. L., Majewska, A. K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microglial+interactions+with+synapses+are+modulated+by+visual+experience.">Microglial interactions with synapses are modulated by visual experience.</a> PLoS Biol. 8 (11), e1000527 (2010).</li><li>Voet, S., Prinz, M., Van Loo, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microglia+in+central+nervous+system+inflammation+and+multiple+sclerosis+pathology.">Microglia in central nervous system inflammation and multiple sclerosis pathology.</a> Trends Mol Med. 25 (2), 112-123 (2019).</li><li>Salter, M. W., Beggs, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sublime+microglia:+Expanding+roles+for+the+guardians+of+the+CNS.">Sublime microglia: Expanding roles for the guardians of the CNS.</a> Cell. 158 (1), 15-24 (2014).</li><li>Wohleb, E. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neuron-microglia+interactions+in+mental+health+disorders:+For+better,+and+for+worse.">Neuron-microglia interactions in mental health disorders: For better, and for worse.</a> Front Immunol. 7, 544 (2016).</li><li>Kettenmann, H., Hanisch, U. K., Noda, M., Verkhratskya, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Physiology+of+microglia.">Physiology of microglia.</a> Physiol Rev. 91 (2), 461-553 (2011).</li><li>Sarkar, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microglial+ion+channels:+Key+players+in+non-cell+autonomous+neurodegeneration.">Microglial ion channels: Key players in non-cell autonomous neurodegeneration.</a> Neurobiol Dis. 174, 105861 (2022).</li><li>Hanisch, U. K., Kettenmann, H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microglia:+Active+sensor+and+versatile+effector+cells+in+the+normal+and+pathologic+brain.">Microglia: Active sensor and versatile effector cells in the normal and pathologic brain.</a> Nat Neurosci. 10 (11), 1387-1394 (2007).</li><li>Collins, H. Y., Bohlen, C. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Isolation+and+culture+of+rodent+microglia+to+promote+a+dynamic+ramified+morphology+in+serum-free+medium.">Isolation and culture of rodent microglia to promote a dynamic ramified morphology in serum-free medium.</a> J Vis Exp. 133, e57122 (2018).</li><li>Lyons, S. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Distinct+physiologic+properties+of+microglia+and+blood-borne+cells+in+rat+brain+slices+after+permanent+middle+cerebral+artery+occlusion.">Distinct physiologic properties of microglia and blood-borne cells in rat brain slices after permanent middle cerebral artery occlusion.</a> J Cereb Blood Flow Metab. 20 (11), 1537-1549 (2000).</li><li>Li, Q., Lan, X., Han, X., Wang, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Expression+of+tmem119/SALL1+and+CCR2/CD69+in+FACS-sorted+microglia-+and+monocyte/macrophage-enriched+cell+populations+after+intracerebral+hemorrhage.">Expression of tmem119/SALL1 and CCR2/CD69 in FACS-sorted microglia- and monocyte/macrophage-enriched cell populations after intracerebral hemorrhage.</a> Front Cell Neurosci. 12, 520 (2018).</li><li>Sarkar, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Kv1.3+modulates+neuroinflammation+and+neurodegeneration+in+Parkinson's+disease.">Kv1.3 modulates neuroinflammation and neurodegeneration in Parkinson's disease.</a> J Clin Invest. 130 (8), 4195-4212 (2020).</li><li>Maezawa, I., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Kv1.3+inhibition+as+a+potential+microglia-targeted+therapy+for+Alzheimer's+disease:+Preclinical+proof+of+concept.">Kv1.3 inhibition as a potential microglia-targeted therapy for Alzheimer's disease: Preclinical proof of concept.</a> Brain. 141 (2), 596-612 (2018).</li><li>Delbridge, A. R. D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Organotypic+brain+slice+culture+microglia+exhibit+molecular+similarity+to+acutely+isolated+adult+microglia+and+provide+a+platform+to+study+neuroinflammation.">Organotypic brain slice culture microglia exhibit molecular similarity to acutely isolated adult microglia and provide a platform to study neuroinflammation.</a> Front Cell Neurosci. 14, 592005 (2020).</li><li>Volden, T. A., Reyelts, C. D., Hoke, T. A., Arikkath, J., Bonasera, S. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Validation+of+flow+cytometry+and+magnetic+bead-based+methods+to+enrich+cns+single+cell+suspensions+for+quiescent+microglia.">Validation of flow cytometry and magnetic bead-based methods to enrich cns single cell suspensions for quiescent microglia.</a> J Neuroimmune Pharmacol. 10 (4), 65-665 (2015).</li><li>Wulff, H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+voltage-gated+kv1.3+k(+)+channel+in+effector+memory+t+cells+as+new+target+for+ms.">The voltage-gated kv1.3 k(+) channel in effector memory t cells as new target for ms.</a> J Clin Invest. 111 (11), 1703-1713 (2003).</li><li>Tan, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Biocytin-labeling+in+whole-cell+recording:+Electrophysiological+and+morphological+properties+of+pyramidal+neurons+in+CYLD-deficient+mice.">Biocytin-labeling in whole-cell recording: Electrophysiological and morphological properties of pyramidal neurons in CYLD-deficient mice.</a> Molecules. 28 (10), 4092 (2023).</li><li>Manitz, M. P., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Flow+cytometric+characterization+of+microglia+in+the+offspring+of+polyi:C+treated+mice.">Flow cytometric characterization of microglia in the offspring of polyi:C treated mice.</a> Brain Res. 1636, 172-182 (2016).</li><li>Xu, Y. N., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+modified+protocol+of+mouse+hippocampal+primary+microglia+culture+by+using+manual+dissociation,+magnetic+activated+cell+sorting+and+tic+medium.">A modified protocol of mouse hippocampal primary microglia culture by using manual dissociation, magnetic activated cell sorting and tic medium.</a> Sheng Li Xue Bao. 71 (6), 883-893 (2019).</li><li>Zelenka, L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Novel+protocol+for+the+isolation+of+highly+purified+neonatal+murine+microglia+and+astrocytes.">Novel protocol for the isolation of highly purified neonatal murine microglia and astrocytes.</a> J Neurosci Methods. 366, 109420 (2022).</li><li>Keren-Shaul, H., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+unique+microglia+type+associated+with+restricting+development+of+alzheimer's+disease.">A unique microglia type associated with restricting development of alzheimer's disease.</a> Cell. 169 (7), 1276-1290.e17 (2017).</li><li>Yang, B., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Various+cell+populations+within+the+mononuclear+fraction+of+bone+marrow+contribute+to+the+beneficial+effects+of+autologous+bone+marrow+cell+therapy+in+a+rodent+stroke+model.">Various cell populations within the mononuclear fraction of bone marrow contribute to the beneficial effects of autologous bone marrow cell therapy in a rodent stroke model.</a> Transl Stroke Res. 7 (4), 322-330 (2016).</li><li>Gingras, M., Gagnon, V., Minotti, S., Durham, H. D., Berthod, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Optimized+protocols+for+isolation+of+primary+motor+neurons,+astrocytes+and+microglia+from+embryonic+mouse+spinal+cord.">Optimized protocols for isolation of primary motor neurons, astrocytes and microglia from embryonic mouse spinal cord.</a> J Neurosci Methods. 163 (1), 111-118 (2007).</li><li>Ramesha, S., Rayaprolu, S., Rangaraju, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Flow+cytometry+approach+to+characterize+phagocytic+properties+of+acutely-isolated+adult+microglia+and+brain+macrophages+in+vitro.">Flow cytometry approach to characterize phagocytic properties of acutely-isolated adult microglia and brain macrophages in vitro.</a> J Vis Exp. 160, e61467 (2020).</li><li>Mccarthy, K. D., De Vellis, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Preparation+of+separate+astroglial+and+oligodendroglial+cell+cultures+from+rat+cerebral+tissue.">Preparation of separate astroglial and oligodendroglial cell cultures from rat cerebral tissue.</a> J Cell Biol. 85 (3), 890-902 (1980).</li><li>Sakmann, B., Edwards, F., Konnerth, A., Takahashi, T. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Patch+clamp+techniques+used+for+studying+synaptic+transmission+in+slices+of+mammalian+brain.">Patch clamp techniques used for studying synaptic transmission in slices of mammalian brain.</a> Q J Exp Physiol. 74 (7), 1107-1118 (1989).</li></ol>

The authors have nothing to disclose.

Cultured microglia from fetal or newborn mice are clearly unsuitable for studying adult microglia. Additionally, given the heterogeneity of microglia across different brain areas21, microglia isolated from the whole brain may not accurately represent the characteristics of microglia in a specific brain structure. This protocol provides a method for isolating hippocampal microglia specifically to evaluate the electrical properties of these cells. It includes methods for recording the currents gover...

Microglia, which derive from myeloid progenitors in the primitive yolk sac, are resident in the CNS and comprise about 10% to 15% of total nerve cells1,2. Functionally, in addition to surveilling the local environment, performing immune defense functions, and providing nutrition and support for neurons3,4, microglia can also directly contact neurons to regulate neuronal surface receptors and corresponding ligand binding, and indirectly interact with neurons via the secretion of cytokines5. Studies in vitro and in vivo have demonstrated that microglia express various types of potassium channels, which contribute to the maintenance of negative membrane potential6 and regulate microglial activation. Given that abnormal microglial potassium channels have been observed in various brain diseases7, it is crucial for researchers to identify potential drugs that target these potassium channels and develop strategies to regulate microglial function.
Traditional digestion and purification methods for microglia often use the whole brain, which overlooks the heterogeneity of microglia across different brain areas8. In vitro dissociation and long-term culture in serum-containing media place microglia in an active state9, which may not accurately reflect their physiological characteristics and true state.
Additionally, while outward rectifier potassium currents have been recorded in primary cultured newborn microglia and cell lines10, data from long-term cultures of fetal or newborn mouse brain tissue may differ from those of mature microglia. The present protocol aims to acutely isolate microglia and immediately perform whole-cell recordings of microglial potassium currents using adult mouse brain tissue.
Biochemical and potassium channel properties were examined using a method suitable for the isolation and purification of microglia from small tissues11,12,13,14,15. Therefore, this protocol provides guidance for researchers to elucidate the biochemical and functional properties of microglia under physiological and disease conditions. Although this protocol uses the hippocampus and potassium channels as examples, it can also be applied to the study of other brain areas and channel/cell electrophysiological properties.

<table><tbody><tr><td>100 mm Petri dish</td><td>Corning</td><td>353003</td><td></td></tr><tr><td>15 mL Falcon tubes</td><td>BD</td><td>352096</td><td></td></tr><tr><td>24-well plates</td><td>BD</td><td>353047</td><td></td></tr><tr><td>35 mm Petri dish</td><td>Corning</td><td>353001</td><td>-</td></tr><tr><td>50 mL Falcon tubes</td><td>BD</td><td>352070</td><td></td></tr><tr><td>70 &amp;mu;m cell screening</td><td>Miltenyi</td><td>130-095-823</td><td>To remove cell clumps before cell sorting</td></tr><tr><td>Adult Mouse Brain Dissociation Kit</td><td>Miltenyi</td><td>130- 107-677</td><td></td></tr><tr><td>Anti-CD11b Antibody</td><td>Bio-Rad</td><td>MCA74</td><td>Goat Anti-mouse IgG also available. For blocking endogenous immunoglobulins.</td></tr><tr><td>Anti-Iba 1 Antibody</td><td>SYSY</td><td>234308</td><td>Goat Anti-guinea pig IgG) also available. For blocking endogenous immunoglobulins.</td></tr><tr><td>Axon Digidata 1440A</td><td>USA</td><td></td><td></td></tr><tr><td>Axon MultiClamp 700B Amplifier</td><td>USA</td><td></td><td></td></tr><tr><td>BSA Albumin Fraction V</td><td>BioFrox</td><td>4240GR500</td><td>Serum</td></tr><tr><td>C57BL/6 mice&amp;nbsp;</td><td>Guangdong Medical Laboratory Animal Center</td><td></td><td></td></tr><tr><td>CD11 b/c MicroBeads</td><td>Miltenyi</td><td>130-105-634</td><td></td></tr><tr><td>Chloral hydrate</td><td>Absin</td><td>abs47051394</td><td>Widely used as anesthesia in mice</td></tr><tr><td>Clampfit 10.6</td><td>USA</td><td></td><td></td></tr><tr><td>Confocal Microscope</td><td>Zeiss</td><td>&amp;nbsp;LSM 800</td><td></td></tr><tr><td>Culture medium</td><td>Fisher Scientific</td><td>C11995500BT</td><td>-</td></tr><tr><td>DAPI dye</td><td>Beyotime</td><td>C1002</td><td></td></tr><tr><td>Electrode puller</td><td>Narishige</td><td>PC-10</td><td></td></tr><tr><td>HBSS</td><td>Servicebio</td><td>G4203</td><td></td></tr><tr><td>Horizontal shaker</td><td>SCILOGEX</td><td>SLK-O3000-S</td><td></td></tr><tr><td>Image analysis software</td><td>Fiji</td><td></td><td></td></tr><tr><td>MACS Columns</td><td>Miltenyi</td><td>130-042-201</td><td></td></tr><tr><td>MACS Separators</td><td>Miltenyi</td><td>130-042-102</td><td></td></tr><tr><td>Paraformaldehyde</td><td>Fisher Scientific</td><td>T353-500</td><td>Use fresh 4% solution in 1X PBS, pH 7.2-7.4.&amp;nbsp;</td></tr><tr><td>Poly-L-lysine</td><td>Beyotime</td><td>&amp;nbsp;C0313</td><td>Coverslip coating</td></tr><tr><td>Triton X-100</td><td>Sigma</td><td>X100</td><td></td></tr></tbody></table>

isolation and whole-cell patch-clamp recording of hippocampal microglia from adult mice

Microglia are resident immune cells in the brain that interact with neurons to maintain the homeostasis of the central nervous system (CNS). Studies show that the microglial surface expresses potassium channels that regulate microglial activation, while abnormalities in these potassium channels can lead to neural diseases. Currently, whole-cell patch-clamp recordings of microglia are mostly performed on cultured primary microglia from fetal or newborn mice due to difficulties in conducting electrophysiological evaluations on acutely isolated microglia. This study introduces an easy-to-follow protocol for isolating hippocampal microglia from adult mice and performing whole-cell patch-clamp recordings on the isolated cells. Briefly, the brain was removed from a mouse after decapitation, the hippocampus was dissected bilaterally, and microglia were isolated using an adult mouse brain dissociation kit. The microglia were then purified using a magnetic-activated cell sorting (MACS) method and seeded onto coverslips. Successful microglial isolation was confirmed by immunofluorescent staining with anti-CD11 and anti-Iba1 antibodies. A cover slip was placed in a recording chamber, and the whole-cell potassium currents of the acutely isolated microglia were recorded under voltage-clamp conditions.

Briefly, the process involves the isolation of hippocampal microglia from the adult mouse brain followed by whole-cell patch-clamp recording of these cells (Figure 1). The procedure begins with dissecting the hippocampus of 3 to 5-month-old C57BL/6J adult mice. Specifically, the entire brain is removed after perfusion and placed in a culture dish containing ice-cold PBS (Figure 2A). To ensure acute isolation of cells from the hippocampus, the cerebral cortex is ...

Isolation and Whole-Cell Patch-Clamp Recording of Hippocampal Microglia from Adult Mice

The present protocol describes how to isolate and purify primary hippocampal microglia from adult mice, followed by instructions for conducting whole-cell patch-clamp recordings on these acutely isolated cells.

Microglia are resident immune cells in the brain that interact with neurons to maintain the homeostasis of the central nervous system (CNS). Studies show ...
